5. Wiring diagrams

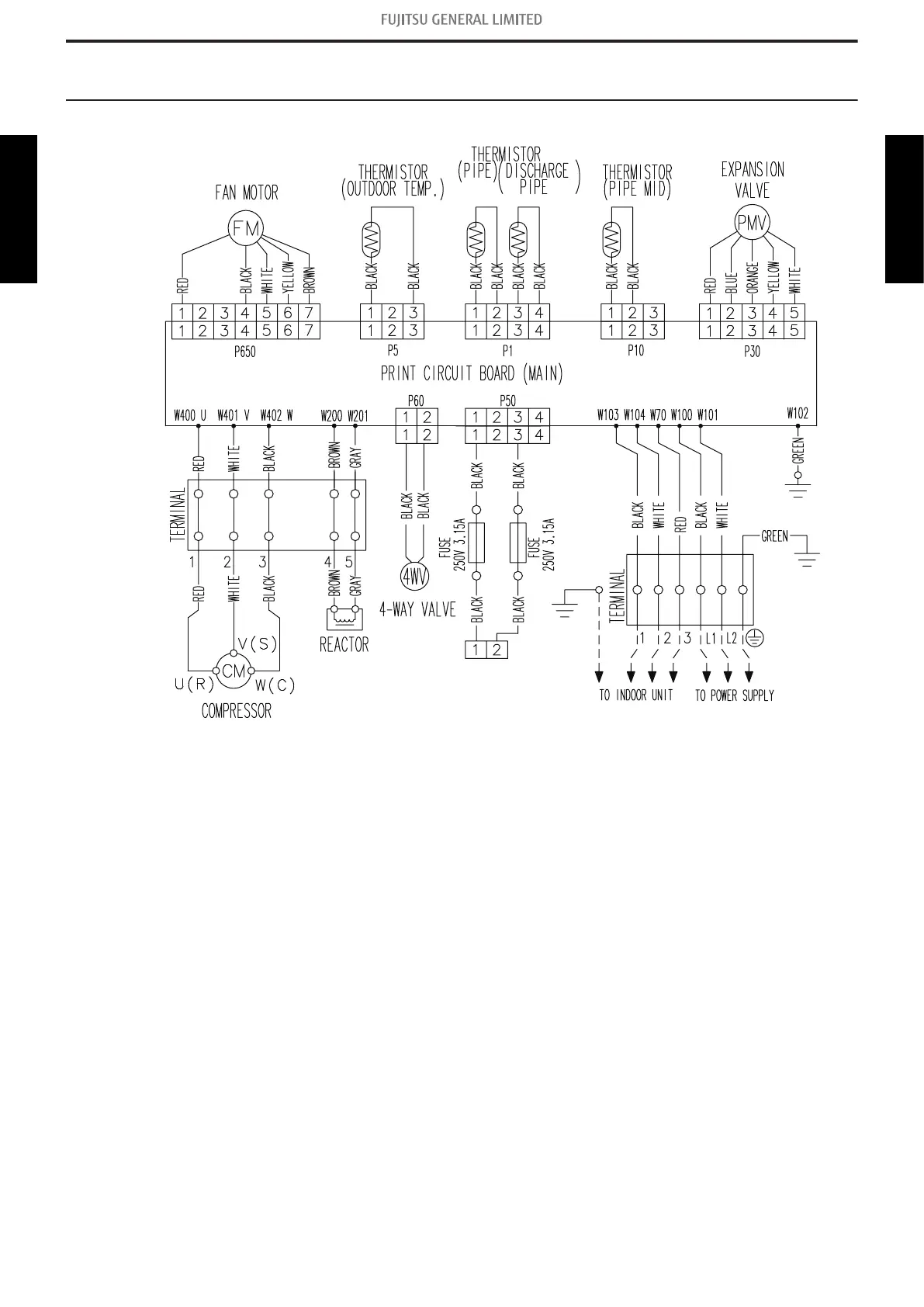

5-1. Models: AOUH09LEAS1 and AOUH12LEAS1
- 70 -
5-1. Models: AOUH09LEAS1 and AOUH12LEAS1
5. Wiring diagrams
OUTDOOR UNIT
AOUH09-12LEAS1
OUTDOOR UNIT
AOUH09-12LEAS1
