2. Dimensions
2-1. Models: ASUH09LMAS and ASUH12LMAS
Unit: in (mm)
32-13/16 (834)
10-5/8 (270)
8-3/4 (222)
1/8 (3.0)
13-9/16 (344) 14 (356)
12-7/8 (327) 4-7/16 (113)12-7/8 (327)2-5/8 (67)
2-7/16 (62)
1-15/16 (50)
3-5/16 (84)
1-11/16 (43)
1-11/16 (43)

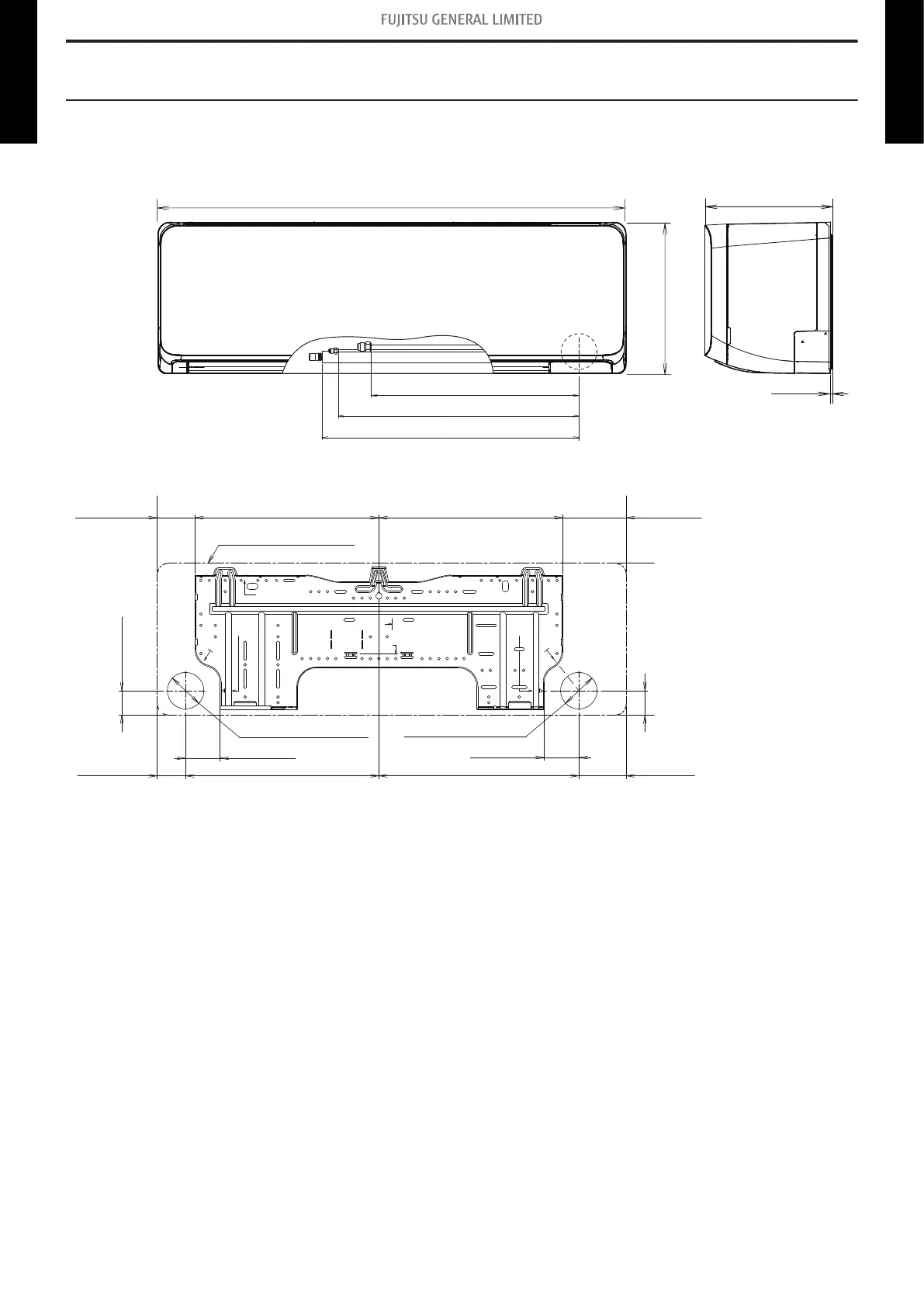

Outline of indoor unit
for pipe inlet Ø 2-9/16 (65) for pipe inlet Ø 2-9/16 (65)
2-7/16 (62)
14-1/8 (359)
16-7/16 (418)
19-3/8 (492)
