2. Base bracket kit
2-1. Specifications
Model name
—
(Service part No.: 9357623009)
Install bracket A Material Steel
Install bracket B Material Steel
Rub sheet Material EDPM
2-2. Installation
CAUTION
To prevent personal injury, property damage, or product malfunction, read the installation manual
attached with the product carefully, and be sure to comply with the safety precautions.
¢
Installation procedure

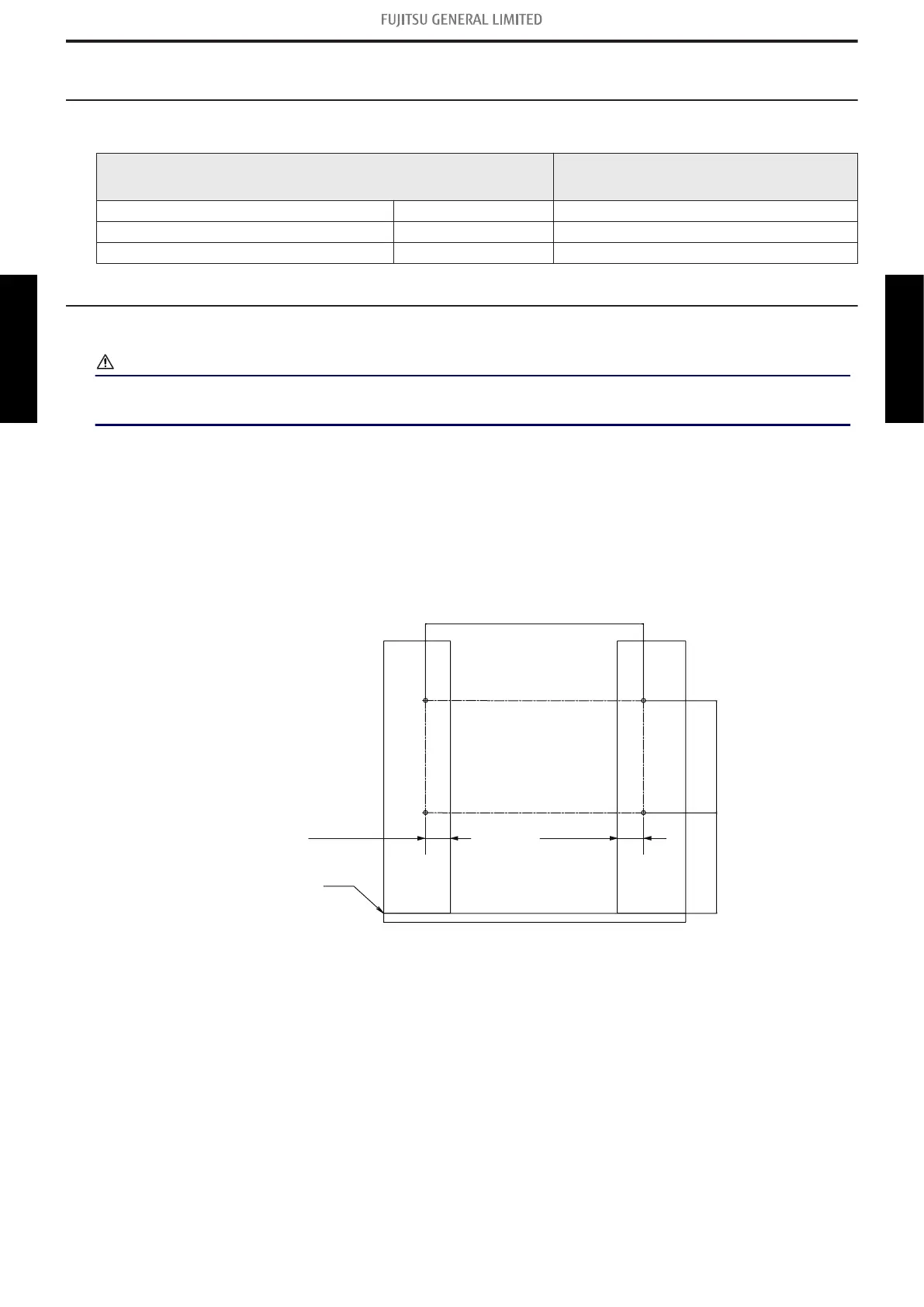

1. Drill mounting holes for the anchor bolts and anchor nuts at a flat place (If the unit is not
installed at a flat place, drain will be difficult). Insert the anchor bolts and anchor nuts into
the holes.
Unit: in (mm)
Wall
20-8/16 (521)
10-9/16 (268)
12 (280)
or more
2-5/8 (66) 2-5/8 (66)
- 87 -
