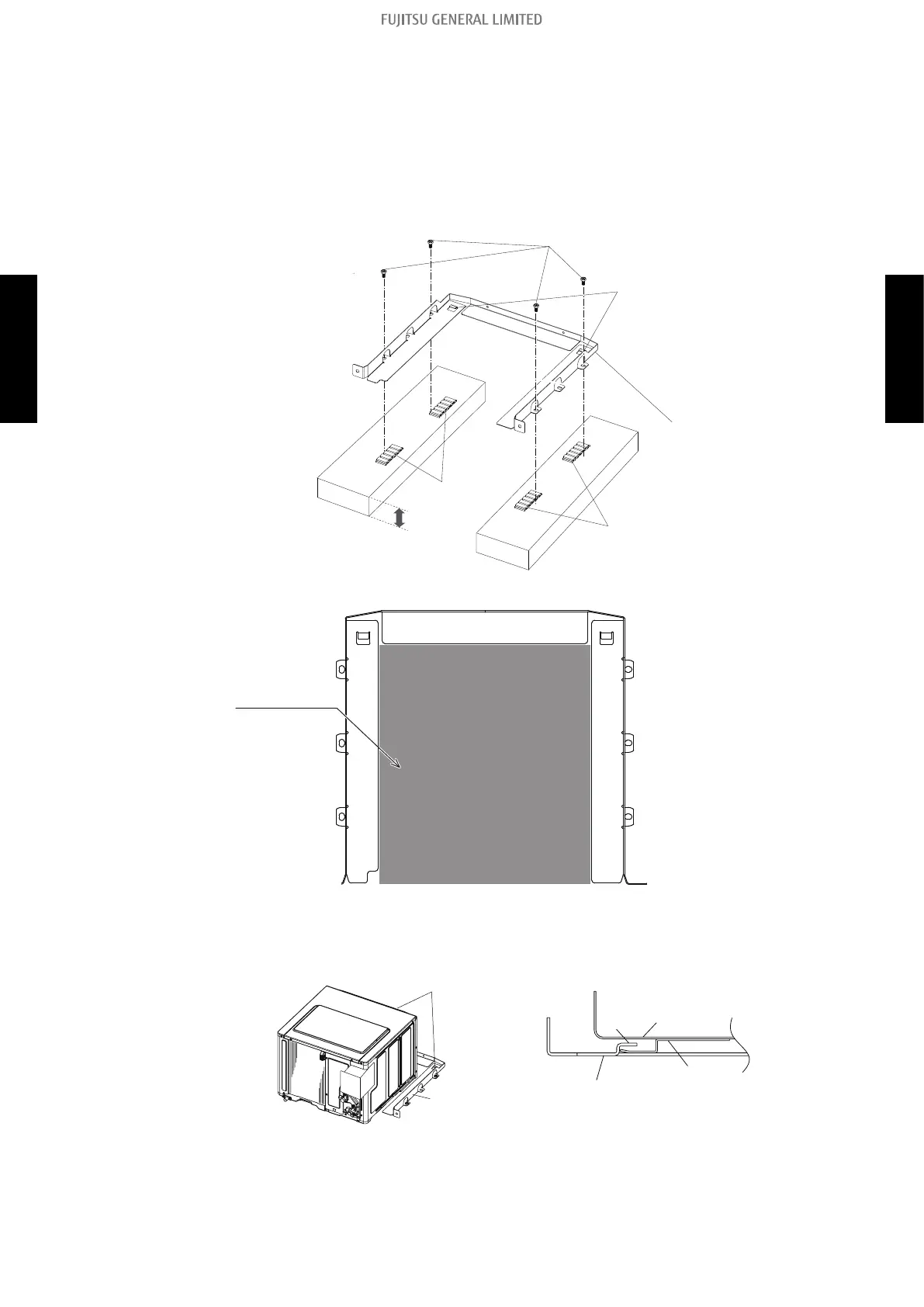

2. Fasten Bracket B with the anchor bolts.
For stable operation, install the outdoor unit on a raised stand or rack at or above the antic-
ipated snow depth for the region (at least 2 in [50 mm] above the ground).
The inside of Bracket B (the gray area) should be an open area to prevent drain water from
accumulating. Accumulated water will transform to ice at low ambient conditions and may
damage the equipment.
Unit: in (mm)
Rubber sheet
2 (50) or more
Rubber sheet
Hexagon head bolt (M8)
(Locally purchased)
Hook
Bracket B
3. Install the outdoor unit. At this time, check that the outdoor unit is not floating at the Brack-
et B hook.
Hook
(2 points)
Bracket B
Side view
Bracket B
Hook
Base foot
Base
- 88 -
2-2. Installation
2. Base bracket kit
OPTIONAL
PARTS
OPTIONAL
PARTS
