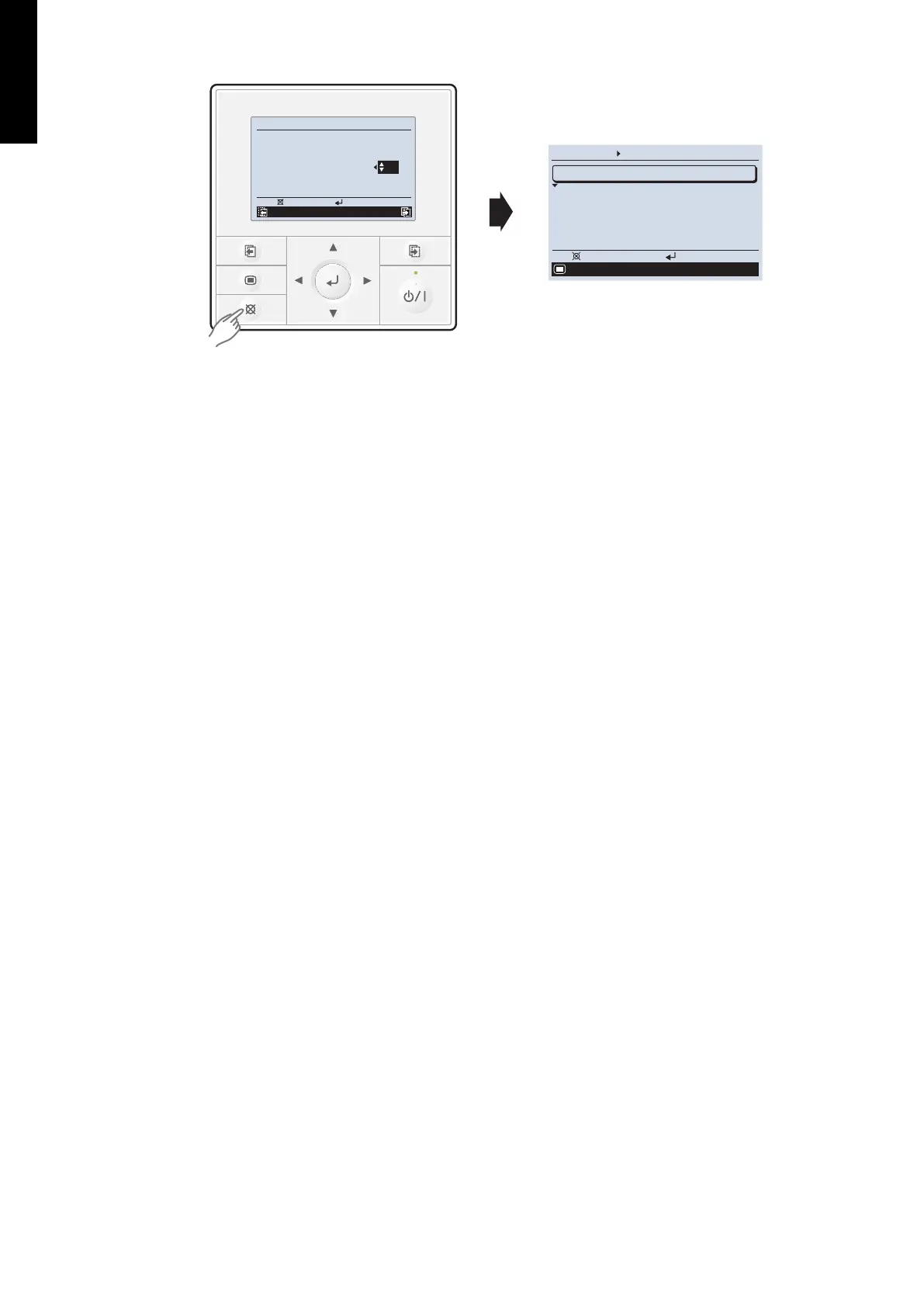

6. When [Cancel button] is pressed twice while “Function setting” screen is displayed, it switch-
es to the “Submenu” screen.
Back:
Setting:
Date and time
Submenu
[
1/2
]
Monitor
Screen
Filter sign
R.C. sensor control
Room temp. display
Off
Off
Mo
10:00AM
C
ancel
:
OK:
Function setting
Mo
10:00AM
R.C. Function Setting
address No. No.
Version Error history
00 30 01
If no button is pressed within 60 seconds after buttons mentioned above are pressed, it will
automatically exit the function setting mode.
If you exit the function setting mode unintentionally during setting, enter the mode again ac-
cording to the procedure in step 2.
Setting up each indoor unit
Repeat the procedures from step 1 to 6, and set up the indoor units requiring function setting.
Resetting the power after setting up function of all indoor units
NOTES:
• If the reset is not performed, function cannot be read correctly.
• After all the functions have been set, the circuit breaker needs to be switched off for at least 2
minutes.
– After the 2 minutes has passed, power can be restored.
– The set function is stored in the PCB and will remain in memory even when the power of
indoor unit is turned off.
However setting function is effective after disconnecting the power supply and then recon-
necting it.
• Record the latest configuration of the indoor unit function setting on a label, and put the label
on the unit so it can be used for after-sales service operations.
