Monitor operating panel

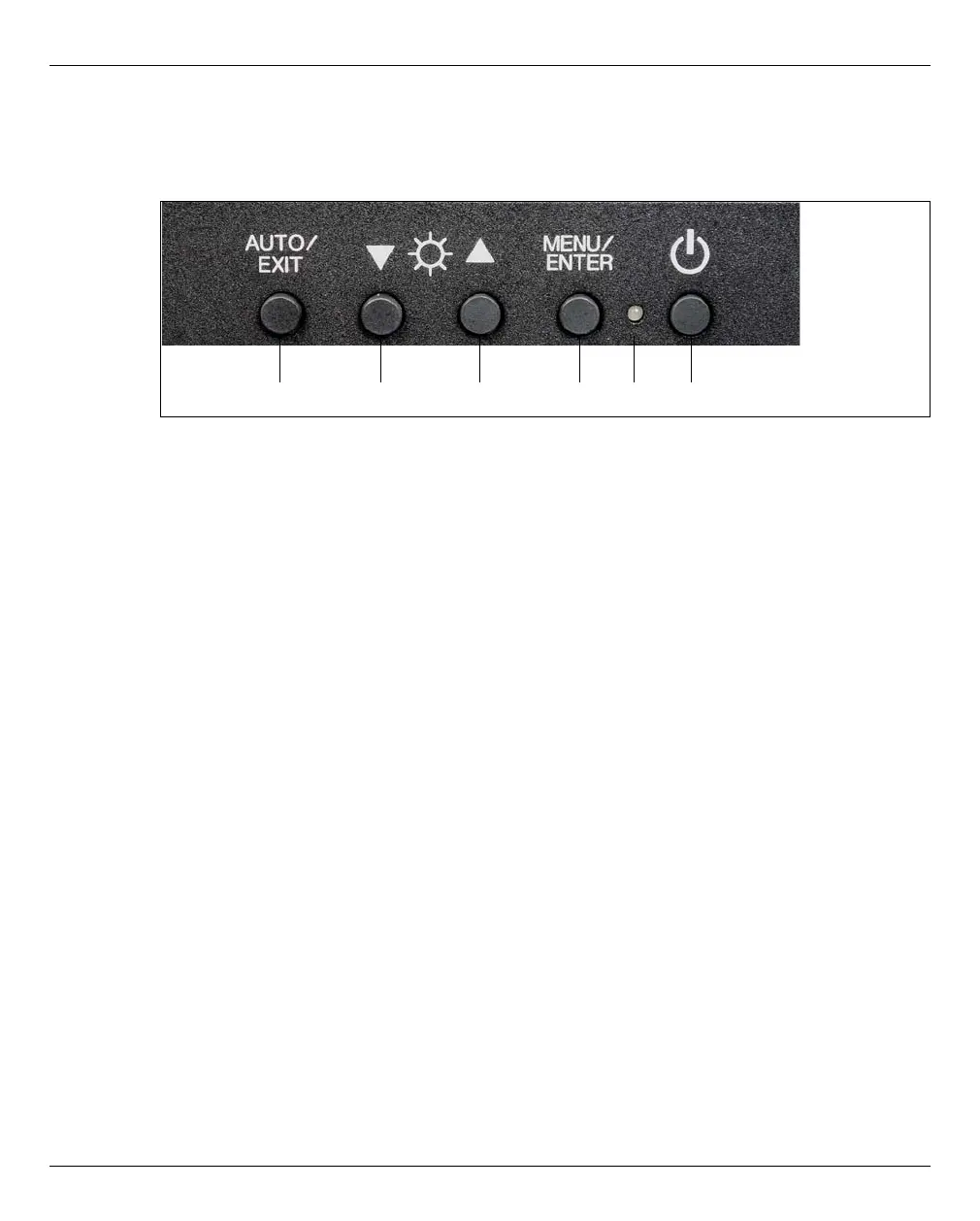

The operating panel is at the bottom right of the monitor.

(1) Power button

Press this button to turn on the power to the monitor, or, if the power is already on,

to turn off the power to the monitor.

(2) Power LED

This LED lights up green when the power to the monitor is on, and lights orange

when the monitor is in energy-saving mode. The light goes off when the monitor is

turned off.

(3) MENU/ENTER button

Press this button to open the menu, to select an item to be adjusted, and to save

an adjusted setting.

(4) UP button

Press this button to select the right-hand item or to increase the value.

(5) DOWN button

Press this button to select the left-hand item or to increase the value.

(6) AUTO/EXIT button

Press this button to close the menu, to cancel the selection of an item to be

adjusted, to cancel an adjusted setting, or to perform automatic adjustment.

i It is possible to directly adjust the screen brightness by pressing the UP or DOWN

button when the menu is not displayed.

It is possible to perform automatic adjustment (position and focus) by pressing the

AUTO/EXIT button.
