Fujitsu D2616 User Manual

Modular RAID Controllers 111
Modular RAID 12Gb/s (SAS3.0)

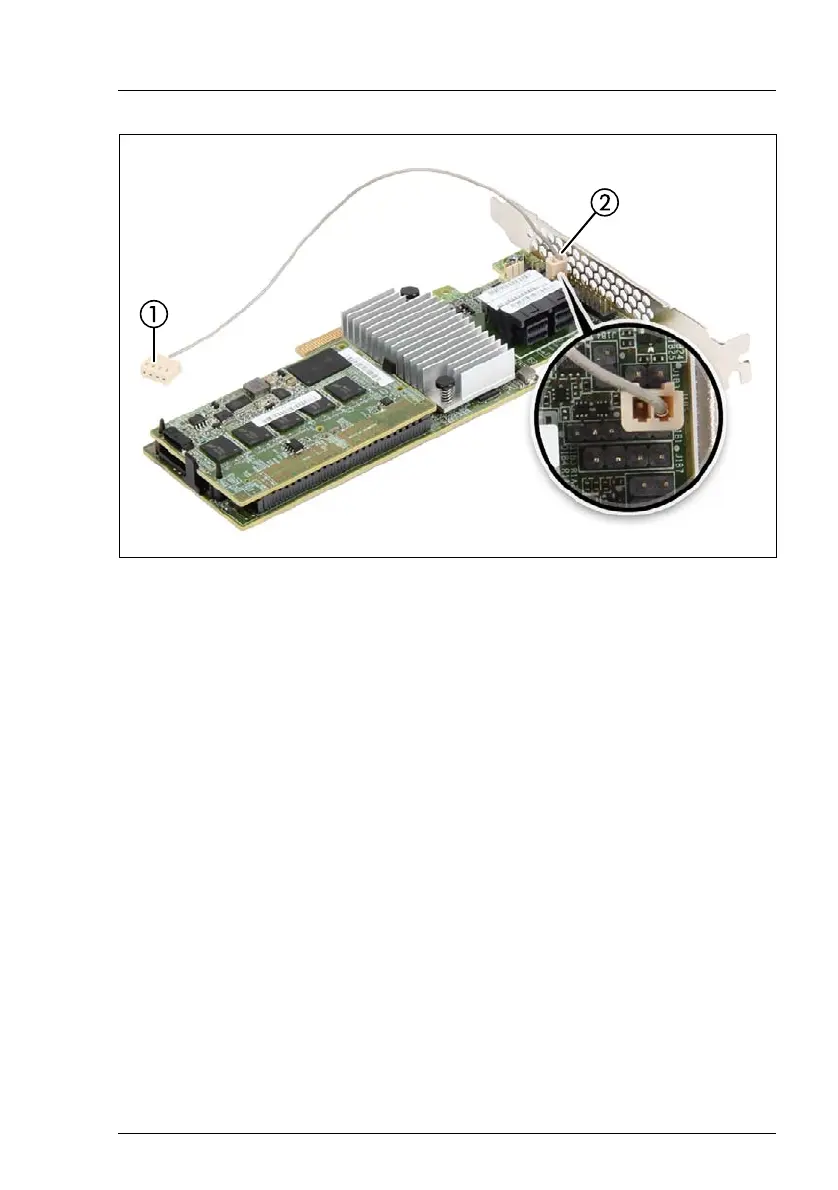

Figure 42: Connecting the Global Drive Activity LED cable - variant 2
Ê Connect the 2-pin connector (2) of the Global Drive Activity LED cable with
the "•" marking plugged to pin 1.
Ê Connect the 4-pin connector (1) of the Global Drive Activity LED cable to the
system board. Please refer to the system specific manual to locate the
connector.
