Before installation
No. Item Q'ty
1 Main unit 1
2 Mounting sleeve 1
3 Side bracket 2
4 Rear bracket 1
5 Bezel 1
6 Bushing 1
7 Self-tapping screw (6 x 16 mm) 2
8 Stud bolt 1
9 Phillips type screw (5 x 8 mm) 4
10 Hex-head bolt (5 x 20 mm) 2
11 Hex nut (5 mm) 2
12 Interconnecting cable 1
13 Remote control 1
Components
When this receiver is used in combination with an external amplifier,
etc., the selector switch on the left side of the main unit may have to
be switched.
Set the switch according to the table below:
External amplifier EQ/XOVER Switch
None None OFF*
None Connected ON
Connected Connected OFF*
Connected None OFF*
* : Pattern of selector switch at shipping

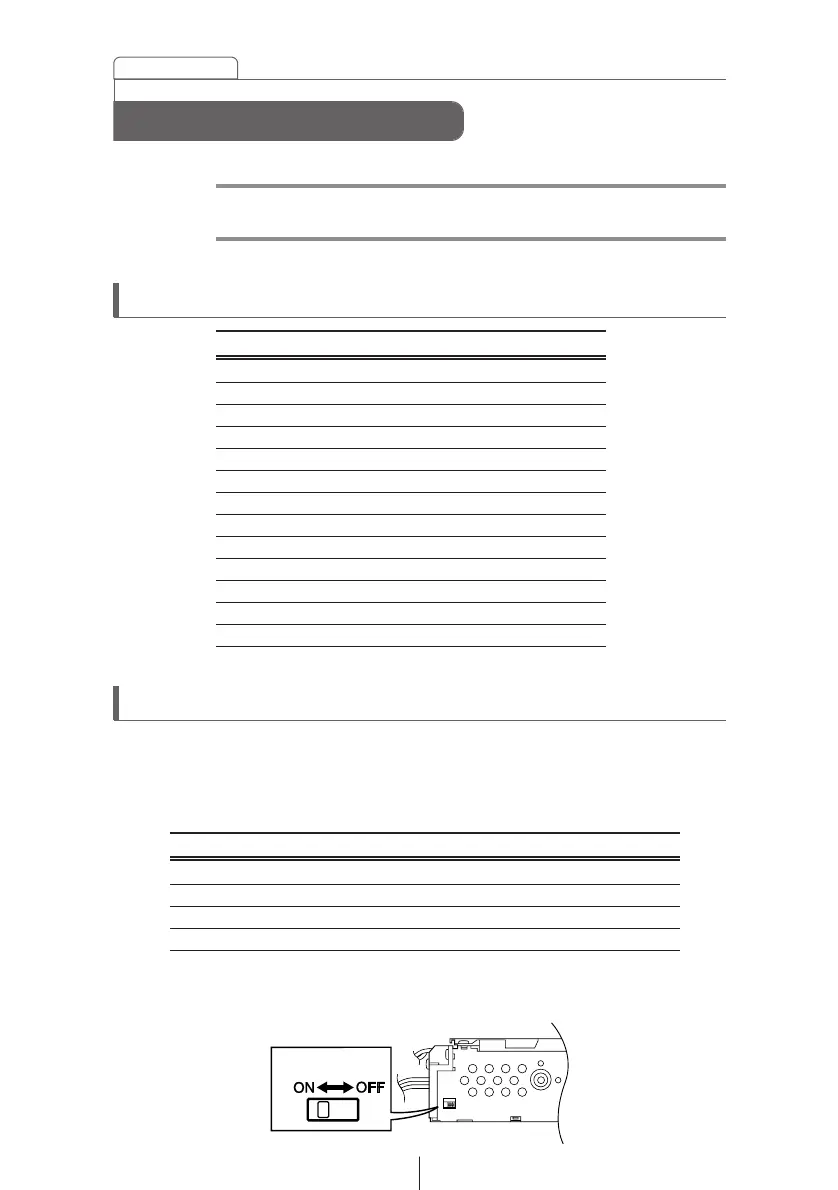

MAIN UNIT LEFT SIDE VIEW
Setting the system-selector switch
Before installation
O Note O
Be sure to disconnect the battery's negative terminal before
installing the receiver.
