Mounting instruction

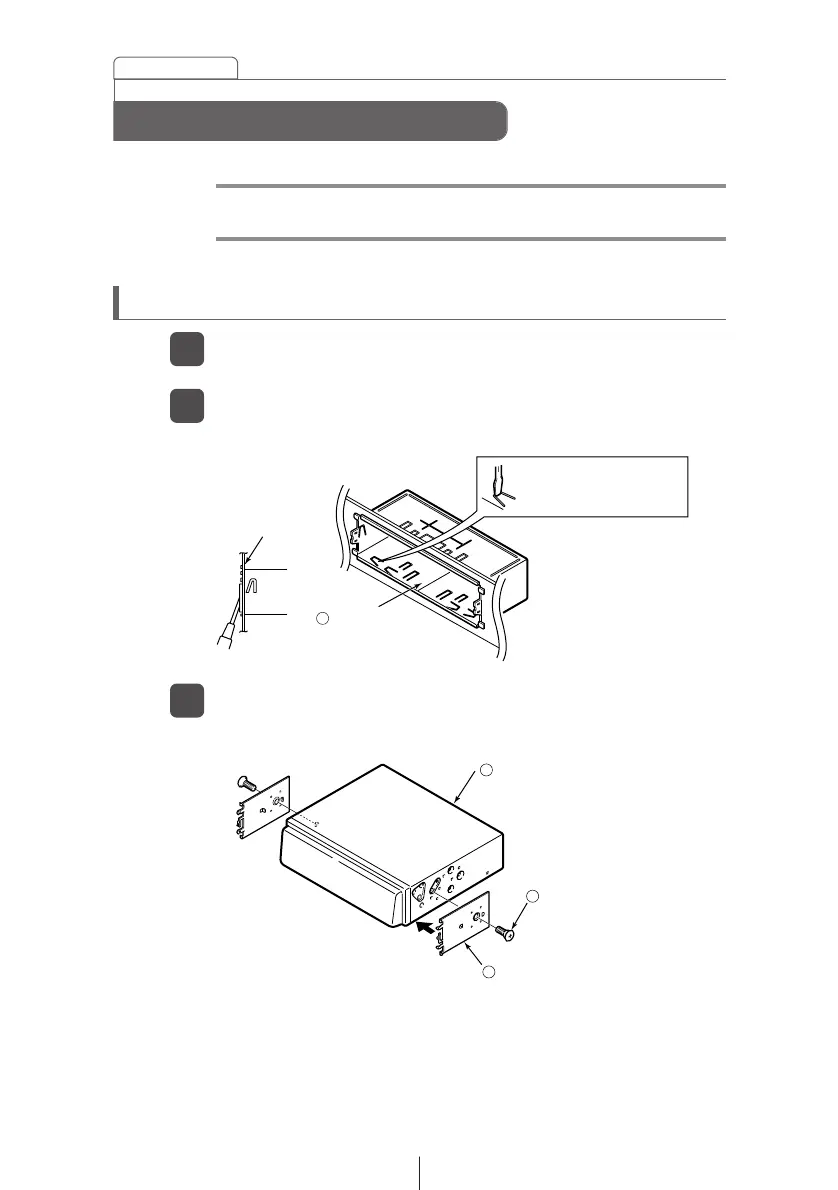

Mounting the main unit
Insert the mounting sleeve into the opening in the vehicle
console.
1
Use a screwdriver or a similar tool to bend the tabs in the
mounting sleeve to secure the mounting sleeve.
2
Attach the side brackets to the main unit using phillips
type screws.
3
BEND THE MOUNTING
TABS.
DASH BOARD
OR CONSOLE
MOUNTING
SLEEVE
2
MAIN UNIT1
SIDE BRACKETS [ x 2 ]
3
PHILLIPS TYPE
SCREWS [ x 2 ]
(5 x 8mm)
9
Mounting instruction
O Note O
Be sure to install the back strap to support the main unit. Failure
to install the back strap correctly may cause CD skipping.
