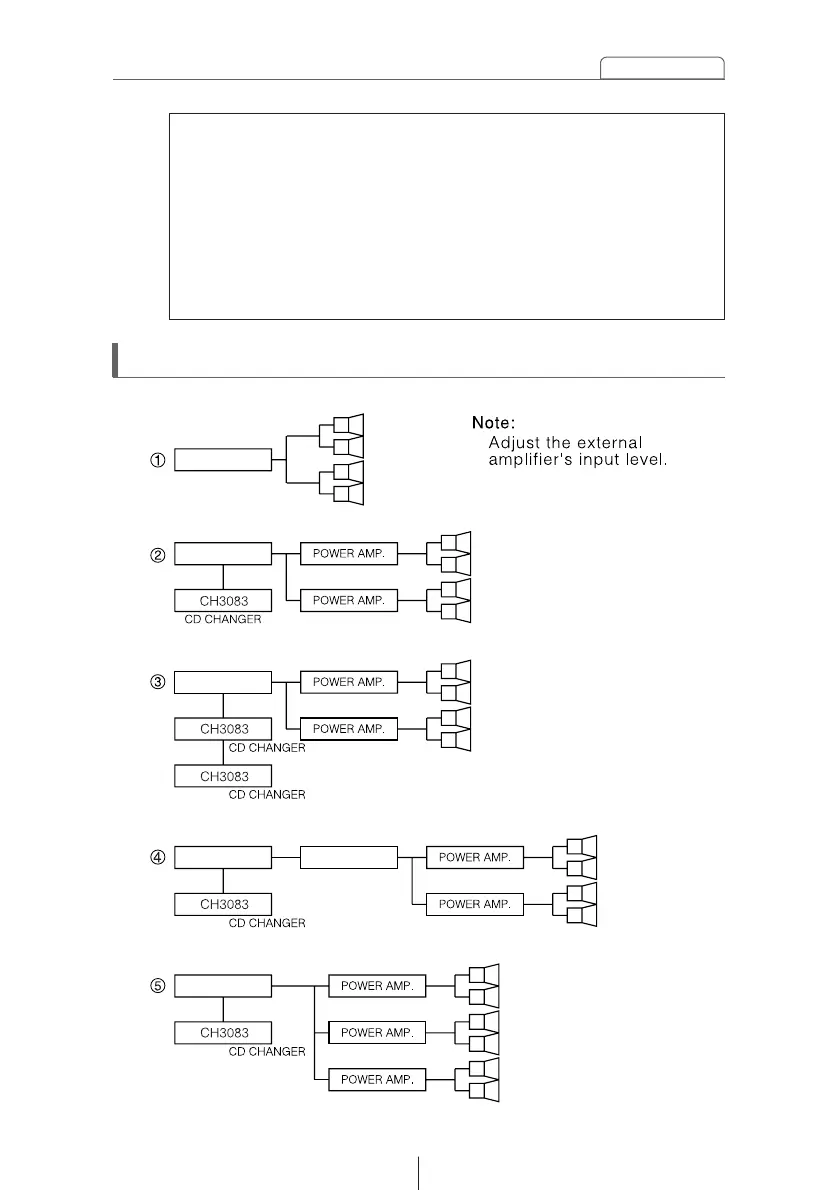

For external equalizer hook-up using the radio's internal amplifier.
See Page 122 for details. Move the selector Switch from Off-On.
Use (10) Non-Fader pre-amp output, as the input to the
equalizer.
Use (8) Front pre-amp Output/Input, as the radios Front pre-amp
input: Connect to the equalizers Front-output.
Use (9) Rear pre-amp Output/Input, as the radios Rear pre-amp
input: Connect to the equalizers Rear-output.
