1. Overview
Components
FUJITSU Storage ETERNUS AF, ETERNUS DX Configuration Guide (Power Synchronized Unit)
Copyright 2019 FUJITSU LIMITED P3AM-8012-14ENZ0
23
Components
This section describes the names and usage of the various components for the power synchronized unit and the
AC sensor unit.
Power Synchronized Unit

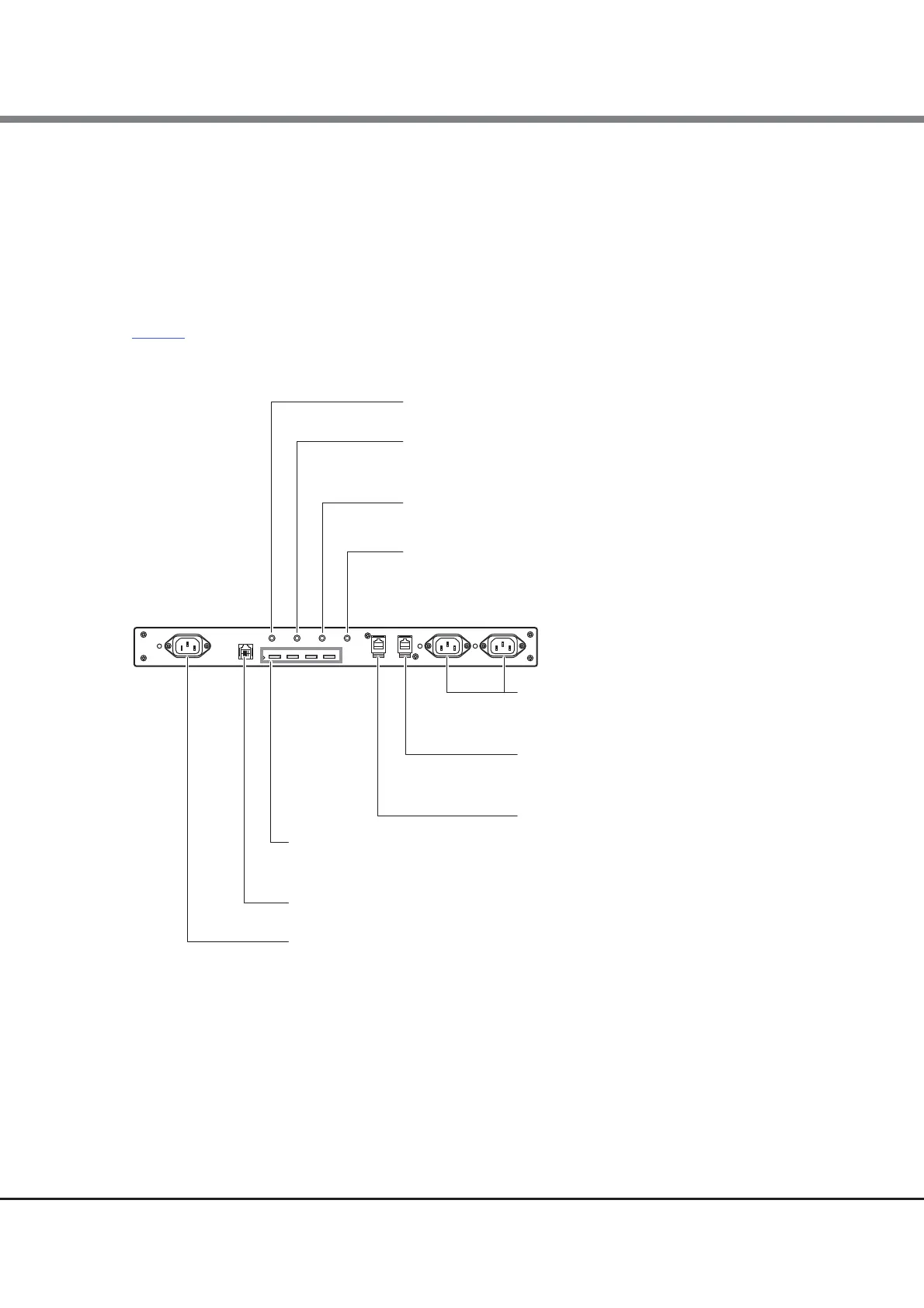

Figure 3 shows the names and usage of the various components for the power synchronized unit.
Figure 3 Components (power synchronized unit)
AC IN port
For power cord (for AC power input) connection
RCI port
Not used
PWC ports (#0, #1, #2, #3 from left)
For ETERNUS DX/AF connection with
RS232C cables to a power synchronized unit
AC SENSOR port
- For AC sensor unit connection
with an AC sensor port connection cable
to a power synchronized unit
- For cascading two power synchronized units
with a cascade cable to the AC SENSOR port
on the second power synchronized unit
CASCADE port
For cascading two power synchronized units
with a cascade cable to the CASCADE port
on the first power synchronized unit
SENSOR ports (left: #0, right: #1)
For power cord (for AC sensor) connection
to detect the power status of a server UPS unit
POWER LED
Displays the power status of a power synchronized unit
POWER SENSOR LED
Displays the detection status of AC output from
a server UPS unit
POWER CONTROL LED
Displays the power status of the connected ETERNUS DX/AF
CHECK LED
Displays the starting status of a power synchronized unit
