1. Overview

Power Management for Power Synchronization

FUJITSU Storage ETERNUS AF, ETERNUS DX Configuration Guide (Power Synchronized Unit)

■ Powering off sequence for turning off power or power recovery

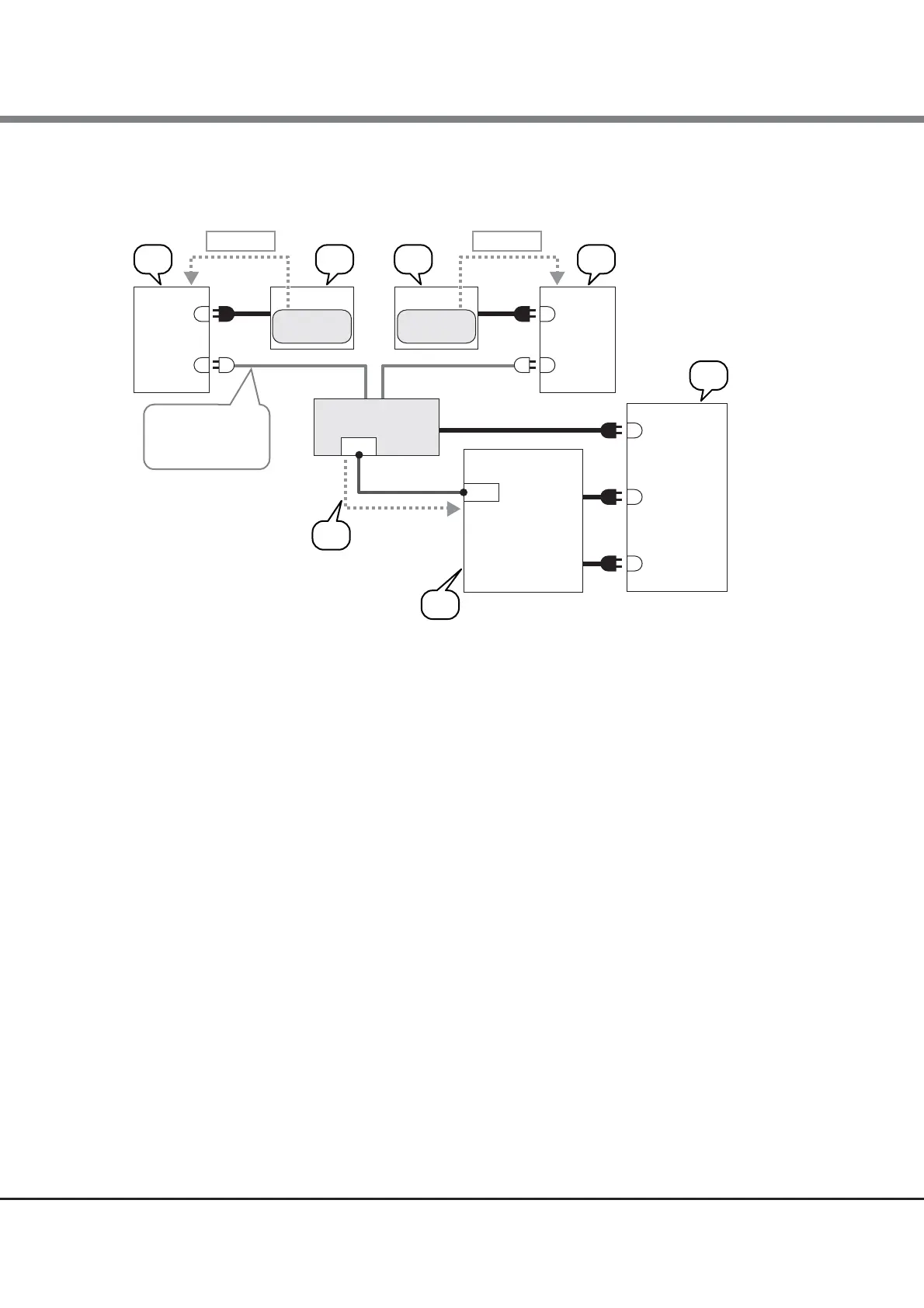

Figure 9 Power off using a power synchronized unit

(0 Power failure occurred (commercial power is stopped))

1 Shutdown of all the servers

2 Shutdown of all the server UPS units

3 Issuance of command to turn off the ETERNUS DX/AF from the power synchronized unit

4 ETERNUS DX/AF shutdown

5 Shutdown of the ETERNUS DX/AF UPS unit

ETERNUS DX/AF

PWC

Power synchronized unit

PWC

UPS unit for

Server#0

UPS unit for

Server#1

1 1

2 2

UPS management

software

Server#1

UPS management

software

ETERNUS DX/AF

UPS unit

UPS settingUPS setting

RS232C cable

An instruction is issued

to turn off the

ETERNUS DX/AF

when no AC output is

detected.
