2.1 Names of Parts
This section describes the device’s parts.

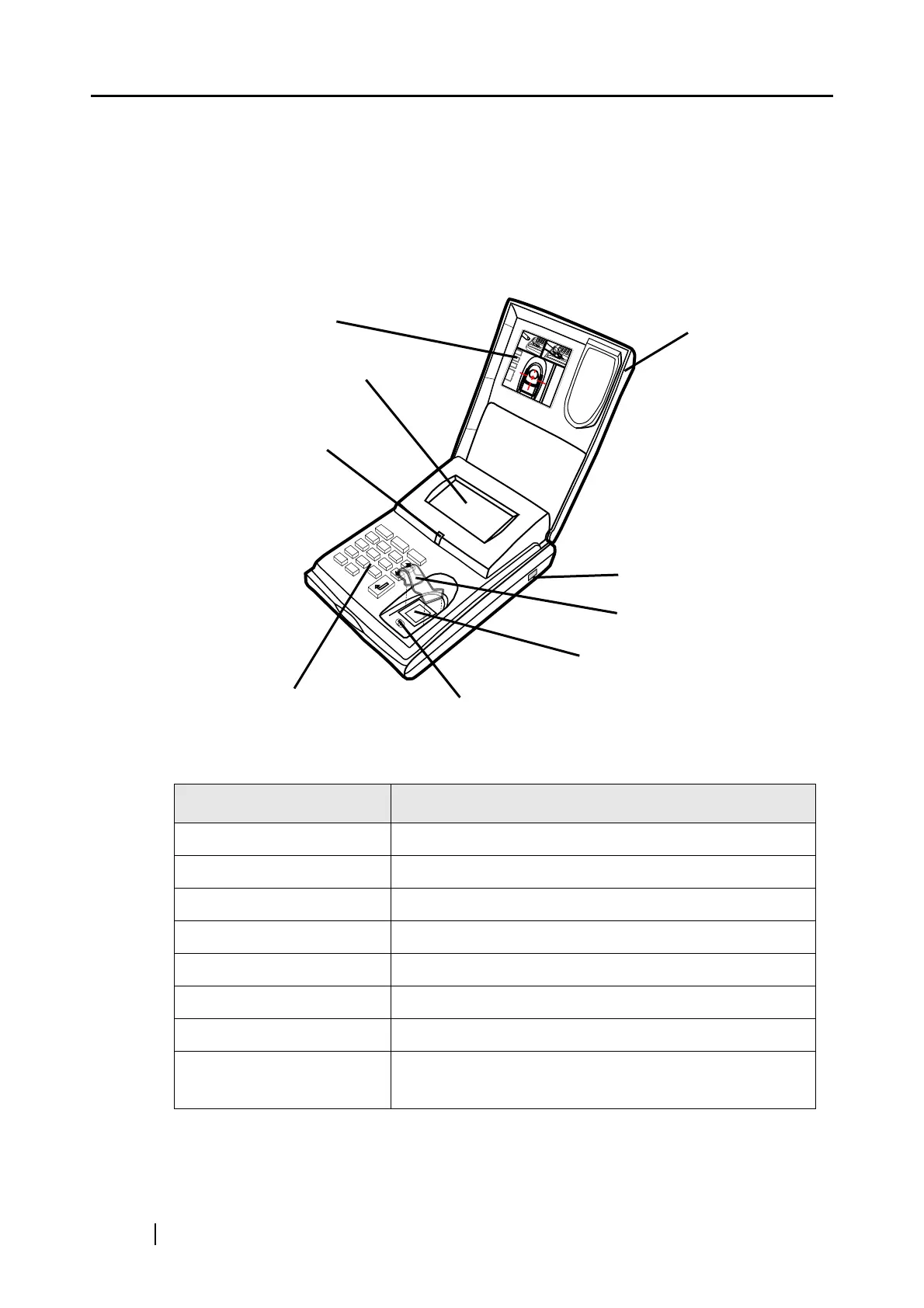

■ Front
Part Name Function
Cover Protects the Keyboard.
Sticker Correct placement of finger is described.
Message Display Displays the settings and status of the fi-5000N.
Keyboard It is used for settings and PIN entry.
Finger Sensor Verifies finger’s correct position.
Fingerprint Sensor Sensor used for fingerprint recognition.
Security Cable Slot Used for connecting the security cable.
Finger Guide Used to guide finger for correct positioning.
(This guide is removable.)
ESC
ESC
I D
I D
SET
SET
7
8
9
4
5
6
1
2
3
0
.
Security Cable Slot
Keyboard
Sticker
Fingerprint Sensor
Finger Sensor
Message Display
LED
Finger Guide
Cover
