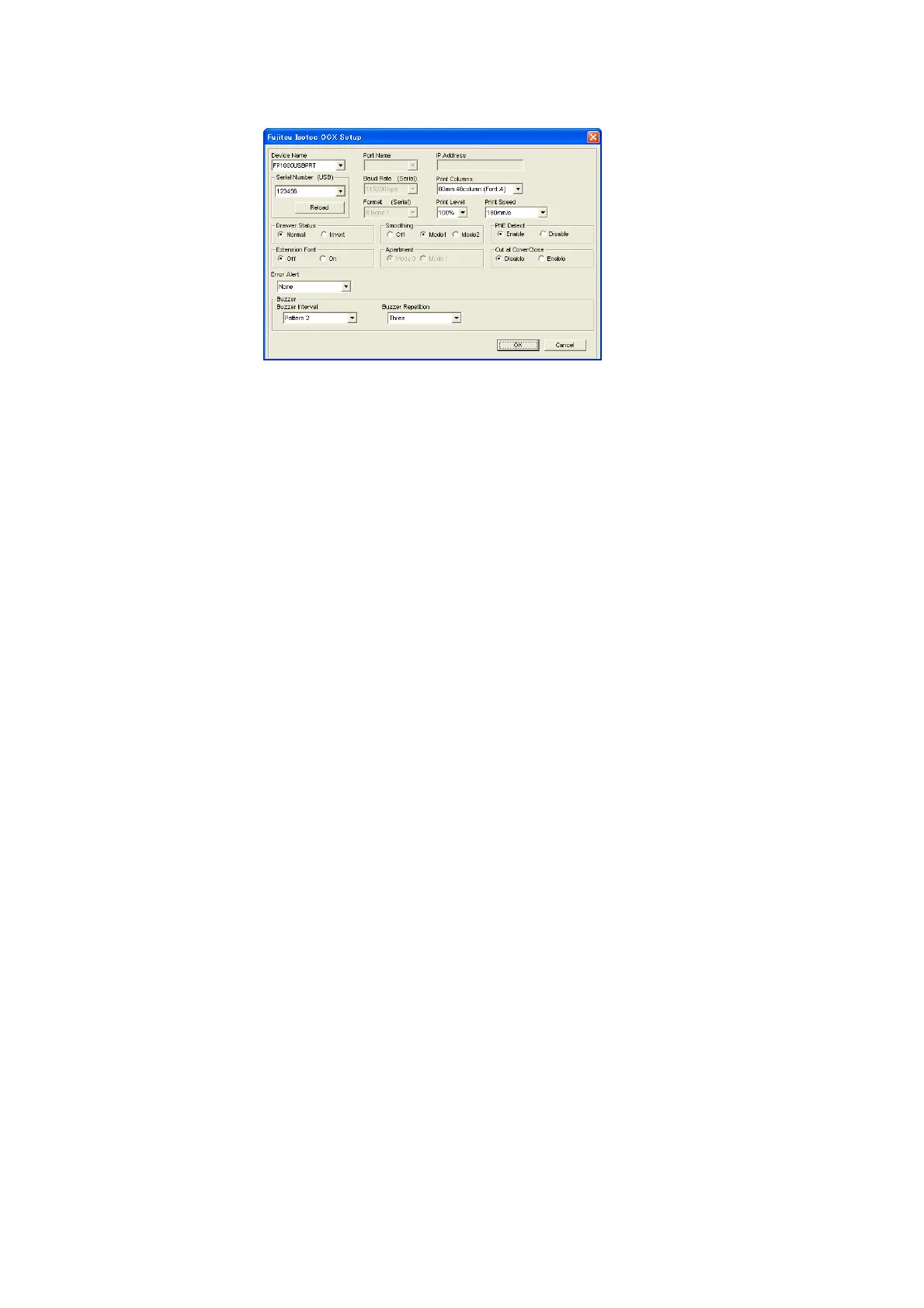

(5) The following setup dialog is displayed.
For a serial port connection:
Select "FP1000SERPRT" or "FP1000SER2PRT" in [Device Name].
Select the connected port name (e.g. COM1) in [Port Name].
For a USB port connection:
Select "FP1000USBPRT" or "FP1000USB2PRT" in [Device Name].
Select the printer's serial number in [Serial Number].
To obtain the serial number, follow the instructions in "3.2.4 Check serial number."
For LAN port connection:
Click [Printer Detection], and then select the printer that appears.
Then, click [Printer Setting].
Set the port, and then click [OK]. This updates the printer settings and completes the installation. (For
more information about the setup, refer to the application programmer's guide.)
