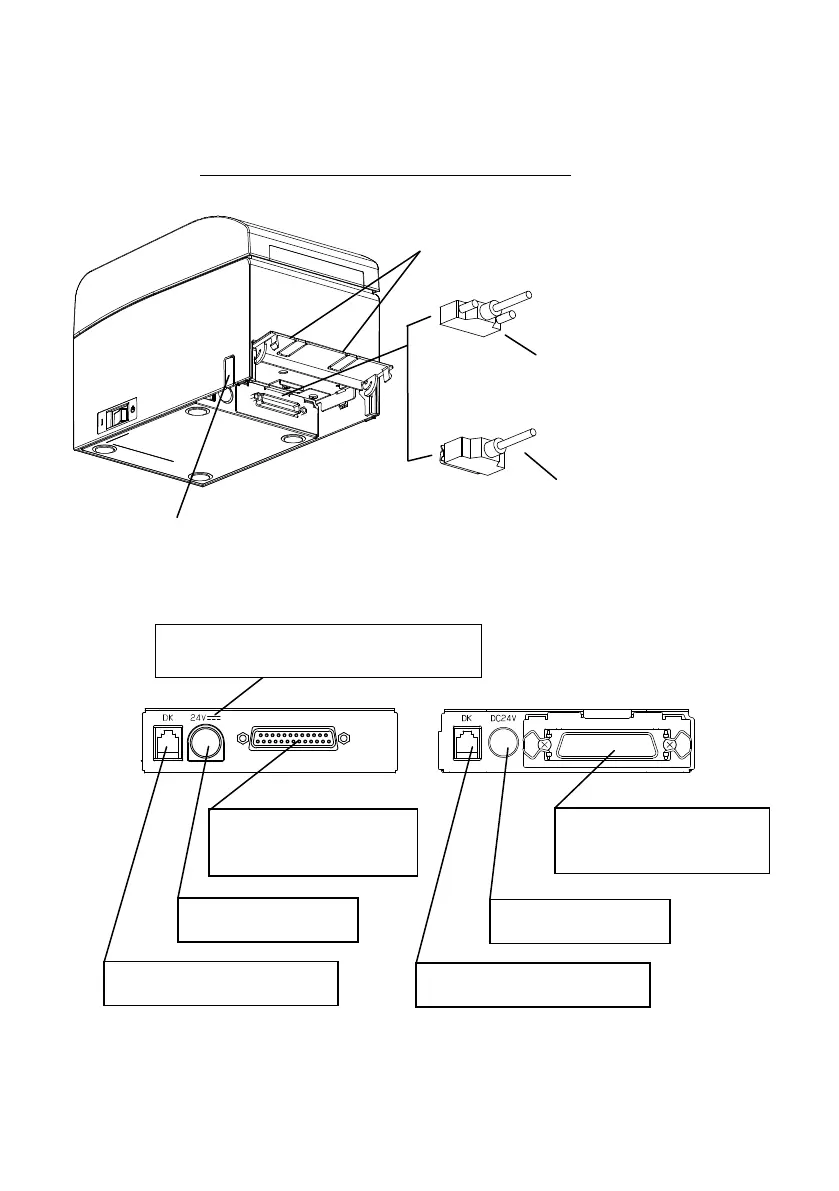

For a unit with serial and parallel interfaces
Connector cover
Insert
Serial interface cable
* Secure the connector with
screws after making the
connection.
Parallel interface cable
* Secure the connector with
clasps after making the
connection.
Insert
Interface connector
(Serial interface)
Interface connector
(Parallel interface)
Power connector
Drawer kick connector
Power connector
Drawer kick connector
Direct Current
(This symbol indicates "Direct Current".)
