Getting started
Ports on th e device
PortsExternaldevicesDevice

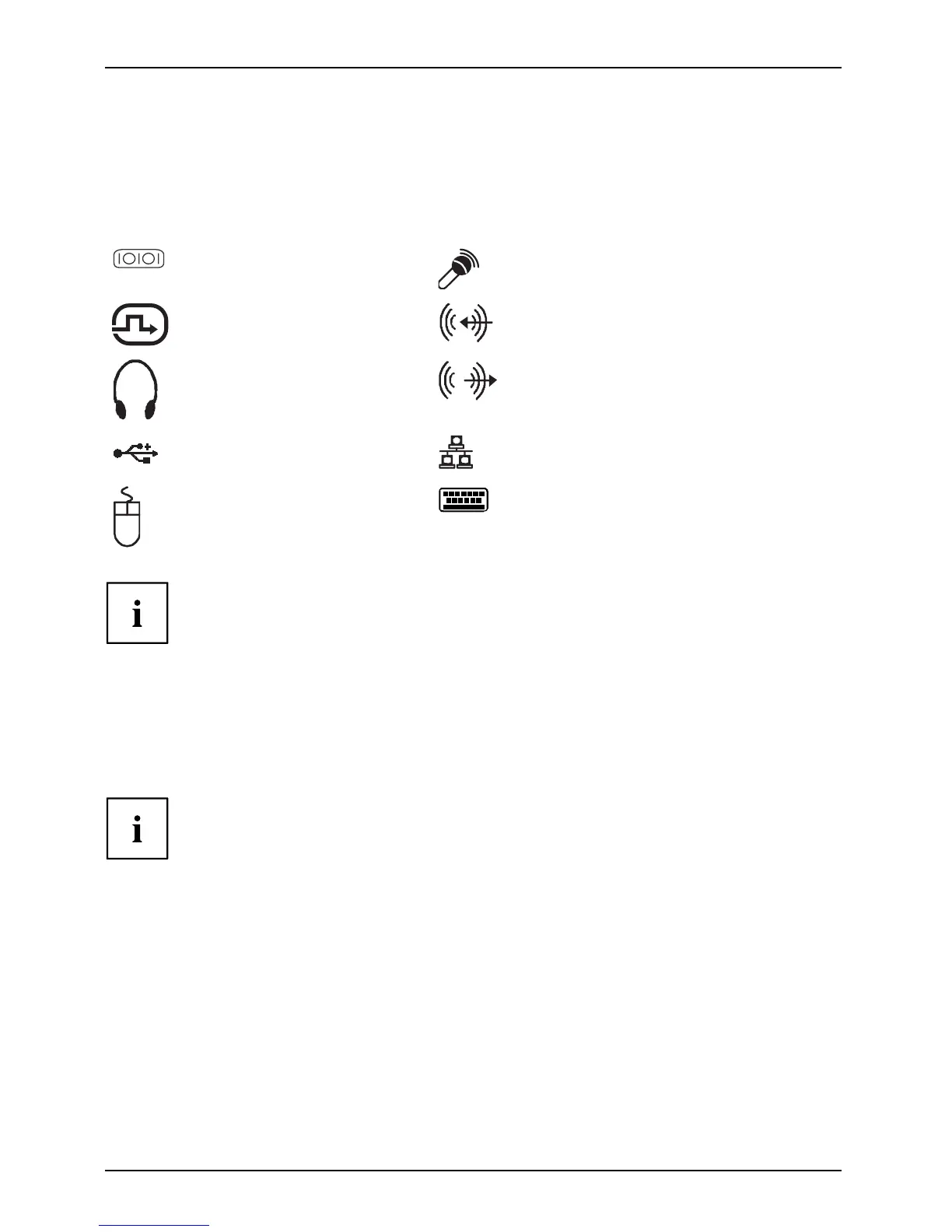

The ports are located on the front and rear sid e of the device. The ports available on
your device depend on the configuration level you have selected. The standard ports are
marked with the symbols shown below (or similar). Detailed informat ion on the location
of the ports is provided in the manual for the mainboard.
Serial port, turquoise
Serialport
Microphone port, pink
Microphone port
DVI-I mon itor port, white
Monitorport
Audio input (Line In), light blue
AudioinputLinein
Headphones
Audio output (Line Out), light green
AudiooutputLineout
USB - Universal Serial Bus,
black
UniversalSerialBus
RJ45-LAN port
LANport
PS/2 mouse port, green
MouseportPS/2mouseport
PS/2 keyboard port, purple
Keyboardport
Some of the connected devices require special software (e.g. drivers) (refer to the
documentation for the connected device and opera ting system).
Connecting the monitor
► Follow the instructions co
ntained in the m onitor manual to prepare the monitor
for operation (e.g. conne
cting cables).
Monitor
► Plug the data cable into the monitor port of the device.
Depending on the expansion stage of your machine and your monitor, you can
also connect the data cable to the DVI or H DMI interface.
► Plug the monitor power cabl
e into the grounded mains outlet.
