Getting Started
Chapter 5 Jumpers and Switches
© Fujitsu Microelectronics Europe GmbH - 23 - MCU-AN-391005-E-V17
5.2.2 Default Jumper Settings
In Figure 11 the default jumper settings are marked. For detailed information about the
jumpers, please refer to the hardware manual of the evaluation board.

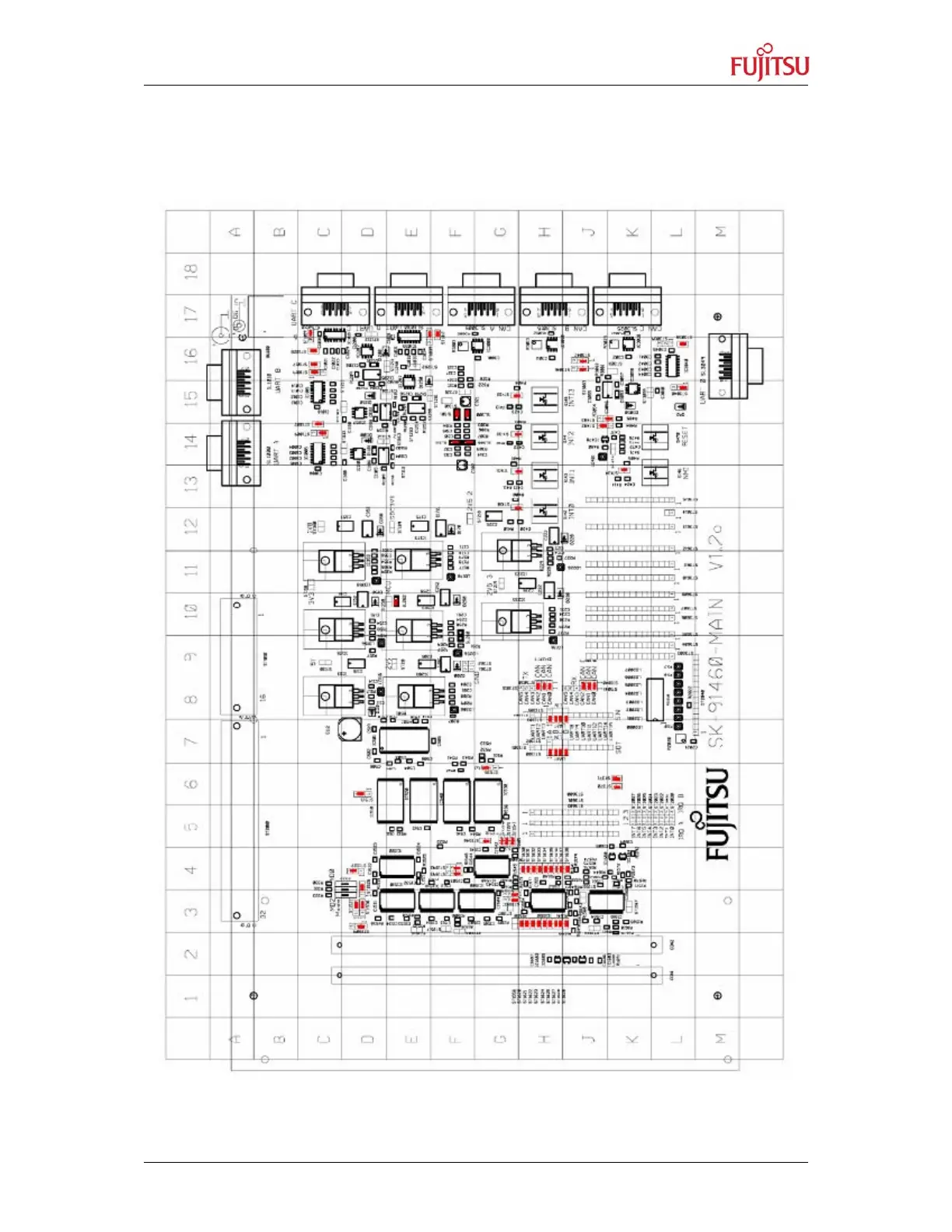

Figure 11: Default Jumper Settings of the Evaluation Board SK-91460-MAIN
