Fujitsu Primergy RX300 S4 - 2.2 OS Installation Method Selection

RX300 S4 Options Guide 43
Accessible drives Installing a FD drive
Installing FD drive

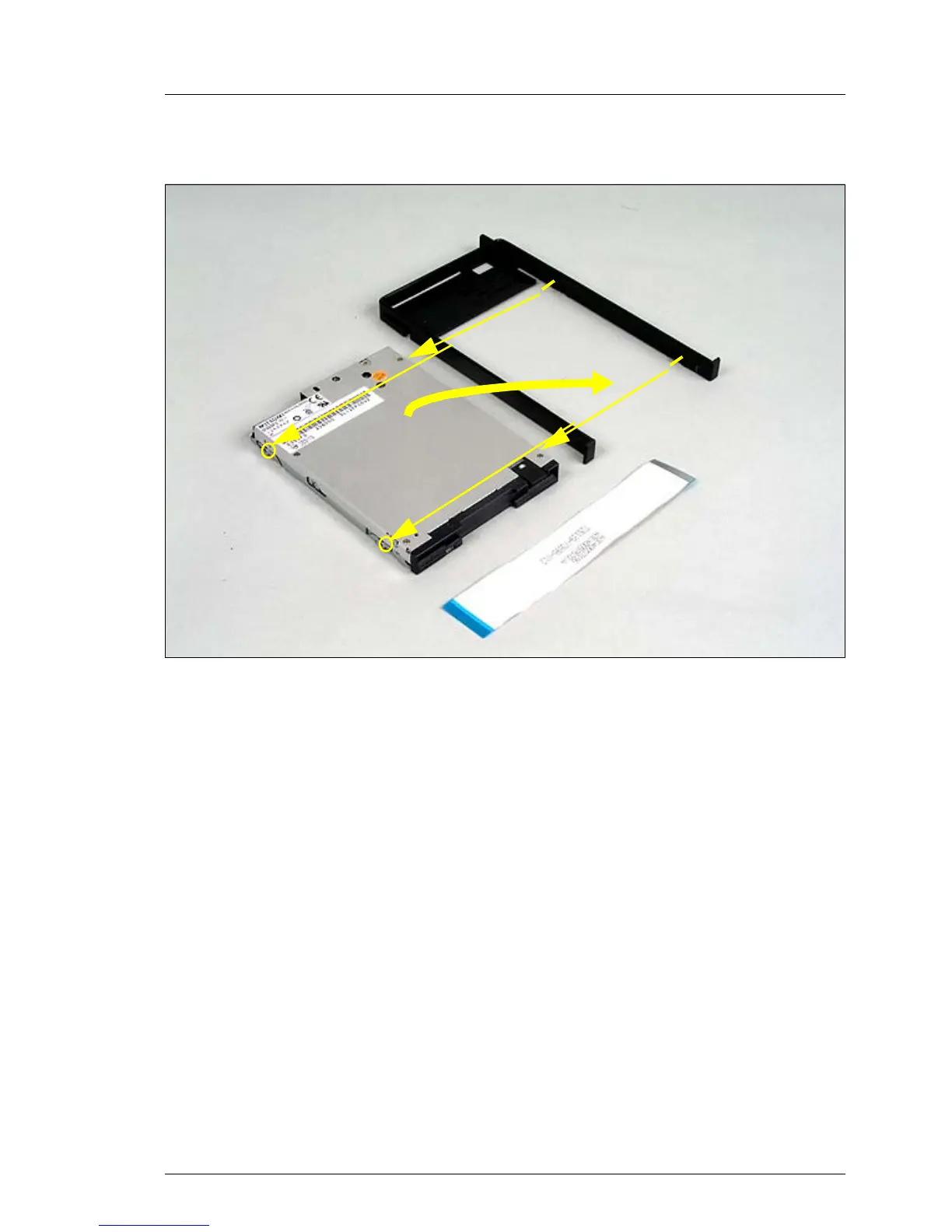

Figure 21: Insert FD drive into the mounting frame.
I The mounting frame and the cable are deliverd with the PRIMERGY
RX300 S4.
Ê Insert the FD drive into the mounting frame. Regard the plastic pins. They fix
the drive in the frame.
