44 Options Guide RX300 S4
Installing a FD drive Accessible drives

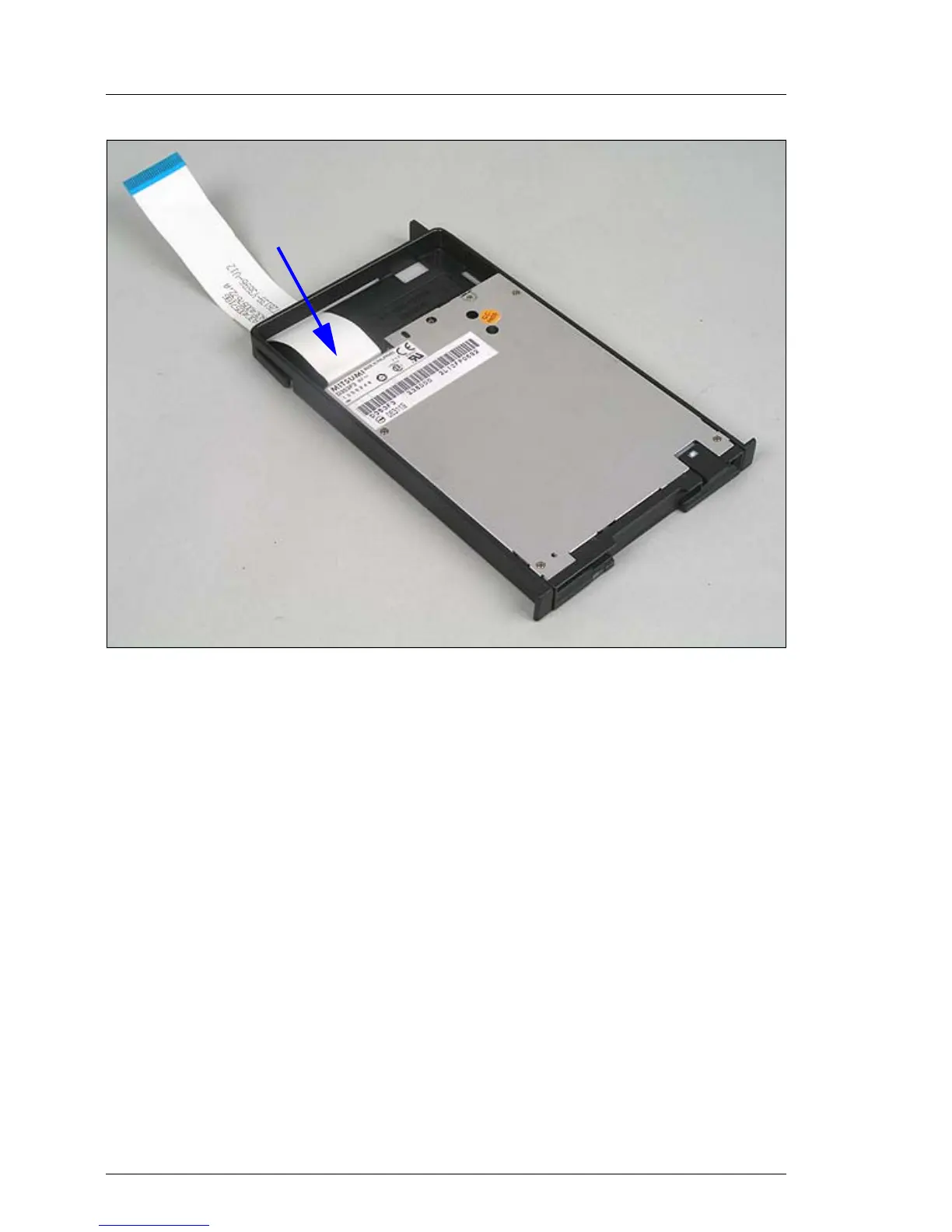

Figure 22: connect the FDD-cable
Ê Connect the cable as shown in the photo.
I Install the cable so, that the blue side shows to the locking
mechanism of the connector of the drive.
Ê Thread the cable through the mounting frame.
