RX300 S4 Options Guide 45
Accessible drives Installing a FD drive

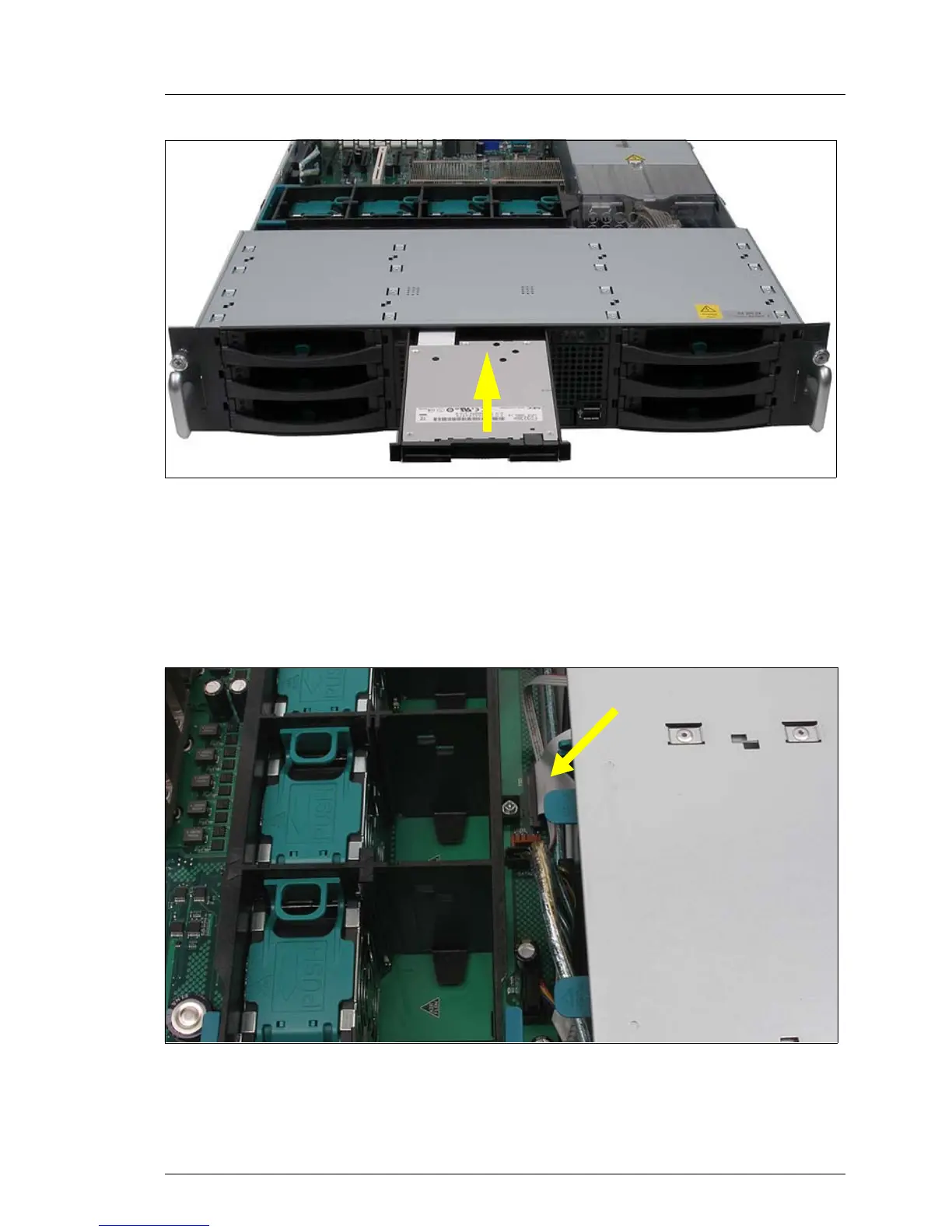

Figure 23: Inserting FD drive module
Ê Thread the flat cable into the bay.
Ê Push the FD drive module into the bay, until it locks.
I Carefully push in the FD drive dummy horizontally, so that the EMV
springs will not be damaged.
Figure 24: Connecting FD drive cable
Ê Connect the FDD cable to the system board.
