TX150 S6 Service Supplement 33
Replacement routines Replacing the processor
Ê Apply a small amount of thermal paste to the upper side of the new
processor.
Ê Ensure a thin and even distribution of the thermal paste.

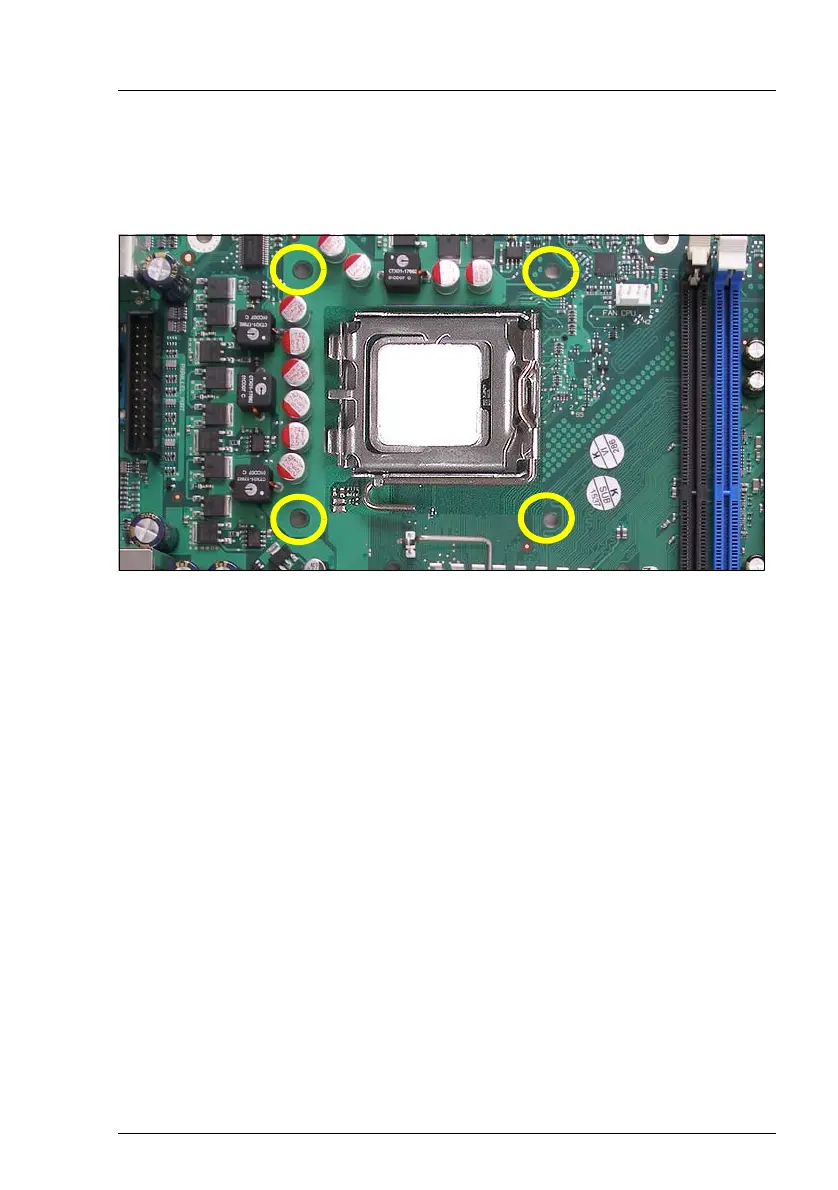

Figure 17: Position of the holes to fasten the heat sink
Ê Position the heat sink carefully on the processor.
V CAUTION!
The heat sink must be positioned in the way that a wide side of the
heat sink is in direction of the system fan to enable the air flow through
the ribs.
Ê Position the screws in the holes carefully, making sure they are upright.
