32 Service Supplement TX150 S6
Replacing the processor Replacement routines

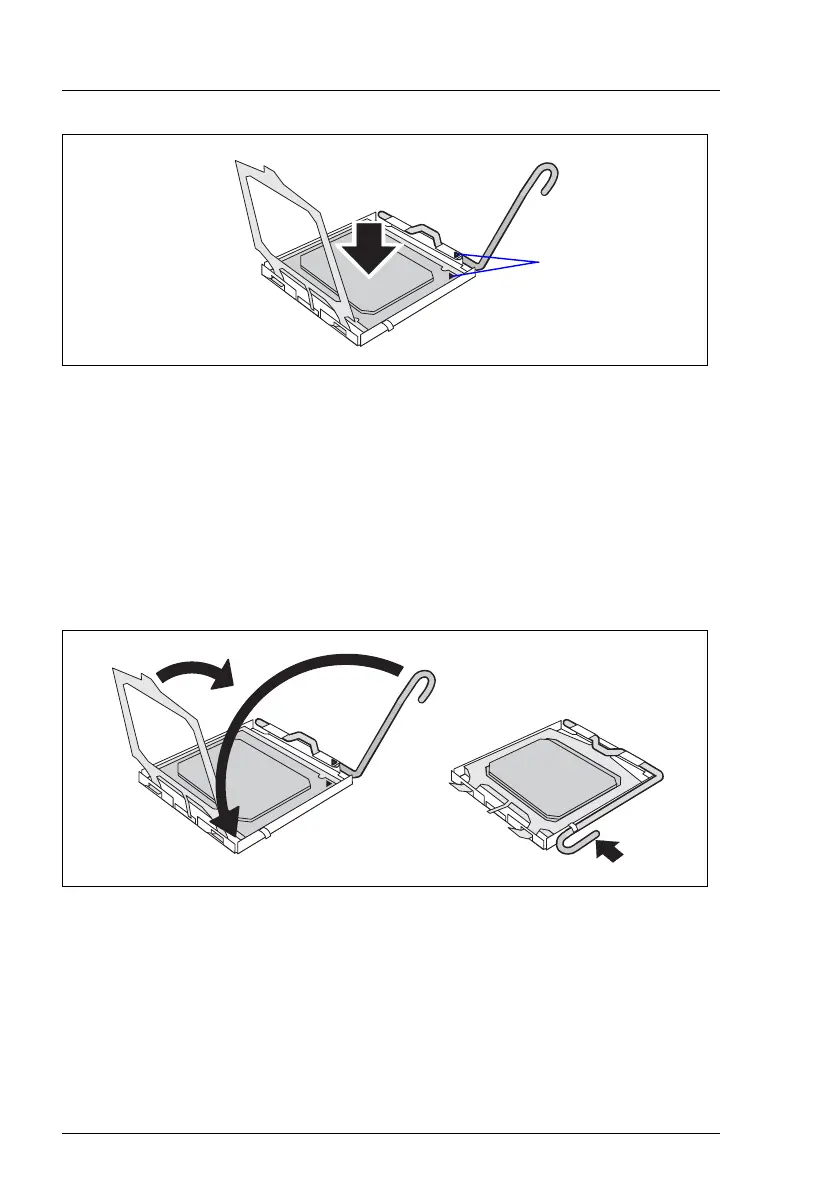

Figure 15: Inserting a new processor
Ê Remove the protective cap from the bottom side of the new processor.
Ê Position the new processor over the socket and then carefully press it into
the socket (1).
V CAUTION!
The processor can only be installed in one particular direction. Note
the marking on one of the corners. To avoid damaging the pins or the
processor, do not force it into the socket.
Figure 16: Fixing the processor
Ê Fold down the frame (1).
V CAUTION!
The processor holder must fall down by itself. Do not close with force,
because soldering pads may be damaged.
Ê Press the lever slowly downward (2) until it is hooked in again (3).
a
1
1
2
3
