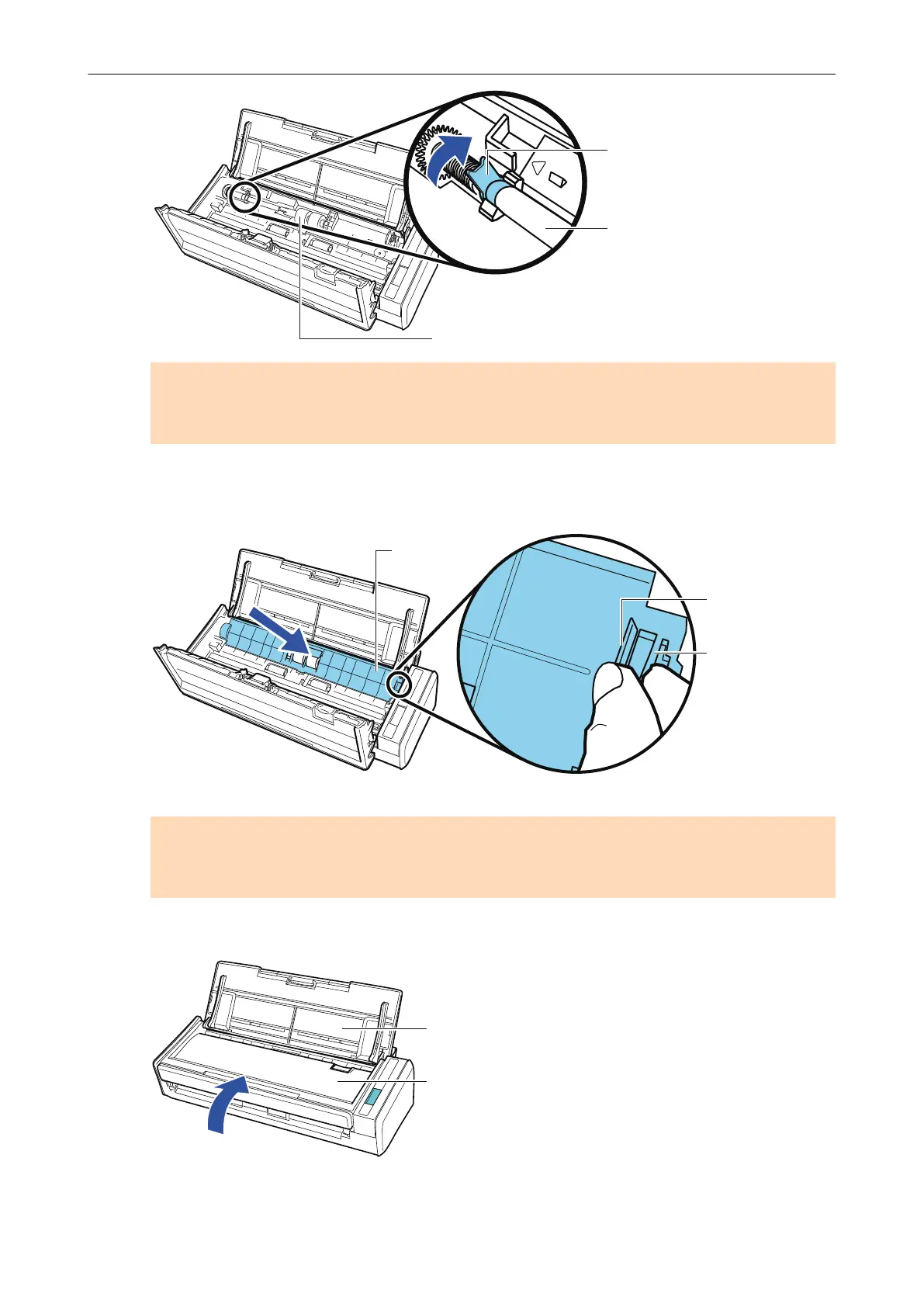

Bushing
Shaft
Pick Roller Assembly
ATTENTION
Make sure that the shaft is attached firmly. Otherwise, paper jams or other feeding errors may
occur.
11. Attach the sheet guide.
While holding the squeeze clip on the right end, attach the sheet guide to its original position.
Squeeze
Clip
Squeeze
Clip
Sheet Guide
→ It clicks when the squeeze clip is locked in place.
ATTENTION
Make sure that the sheet guide is attached firmly. Otherwise, paper jams or other feeding errors
may occur.
12. Close the ADF top section.
ADF Paper Chute (Cover)
ADF Top Section
→ It clicks when it returns to its original position.
