7.2 Replacing the Pad ASSY
ScanSnap S500M Operator's Guide 99
Replacing Consumables
7

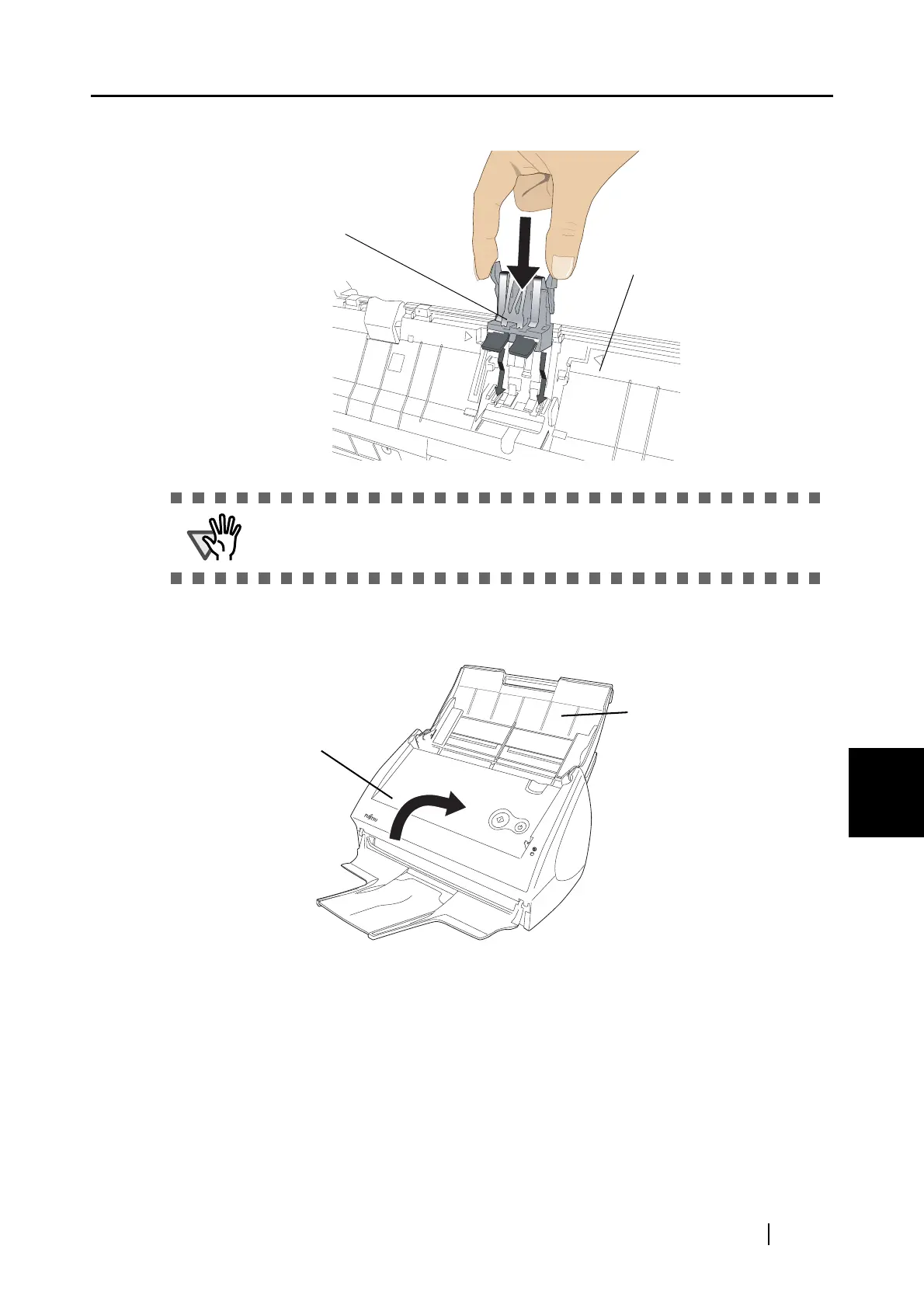

4. Attach the new Pad ASSY.
5. Close the ADF.
⇒ You should hear the ADF click when it returns to its original position.
6. Turn on the scanner.
ATTENTION
Make sure that the Pad ASSY is firmly attached. Otherwise, document jams or
other feeding errors may occur.
ADF
Pad ASSY
Paper chute
ADF
