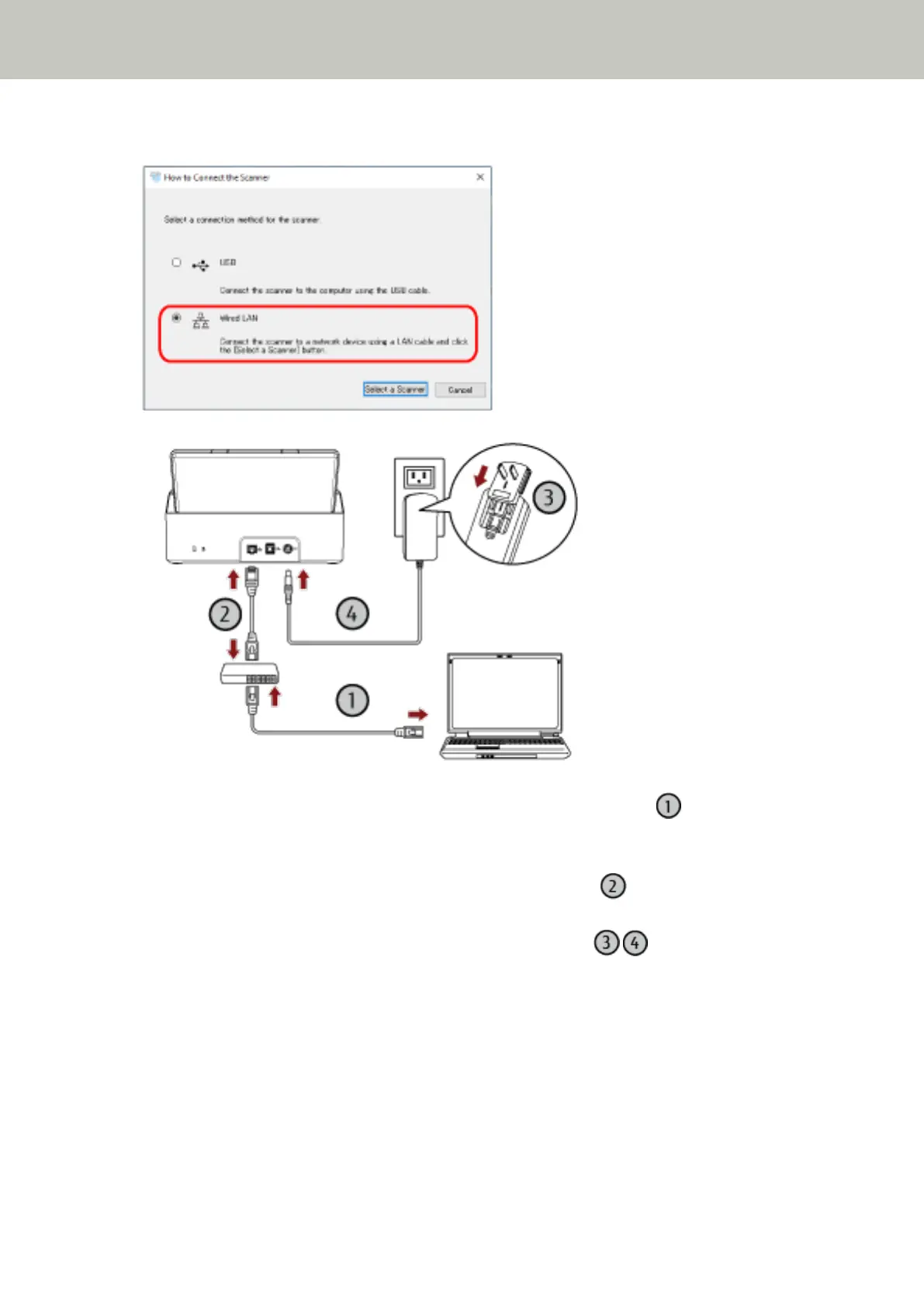

7 Select [Wired LAN] and connect the scanner to the computer as follows.
a Connect the computer to a network device via a wired LAN or Wi-Fi ( ).
For details about how to connect the computer to the network, refer to the computer manual.
b Connect the scanner to the network device via a wired LAN ( ).
c Connect the power cable to the scanner and the AC outlet ( , ).
d Turn on the scanner.
For details, refer to How to Turn the Power ON (page 31).
8 Click the [Select a Scanner] button in the [How to Connect the Scanner] window.
The [Scanner Selection Tool] window appears.
9 In the scanner list, select the scanner that you want to use, and then click the [OK] button.
In the scanner list, the serial number of the scanner is displayed as the default scanner name.
Scanner Setup
23

Fujitsu SP-1125N Specifications

General

Color scanning	Yes
Maximum scan size	210 x 297 mm
Output color depth	24 bit
Output grayscale depth	8 bit
Output monochrome depth	1 bit
ADF scan speed (b/w, A4)	25 ppm
Optical scanning resolution	600 x 600 DPI
Scanner type	ADF scanner
Product color	Gray
Built-in display	No
Sensor type	CMOS dual CIS
Scan drivers	ISIS, TWAIN
Scan file formats	PDF
Daily duty cycle (max)	- pages
Maximum ISO A-series paper size	A4
USB version	3.2 Gen 1 (3.1 Gen 1)
Input voltage	100 - 240 V
Power supply type	AC
Power consumption (off)	0.3 W
Power consumption (sleep)	2 W
Power consumption (typical)	18 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Sustainability certificates	ENERGY STAR
Harmonized System (HS) code	84716070

Weight and Dimensions

Depth	135 mm
Width	298 mm
Height	133 mm
Weight	2500 g
