LED name LED status Meaning
BCA
(BCU Alarm)
(amber)
The battery is in error status.
BTA
(BTU Alarm)
(amber)
The battery is in error status.
1.1.4 Components (Rear)
This section describes the controllers and the power supply units in the rear of the controller enclosure.
■
Controller
The controller contains a CPU,
system memory, host interfaces, Bootup and Utility Device (BUD), and drive
interface (DI) ports. The controller controls all operations in the ETERNUS AF.
● Controller

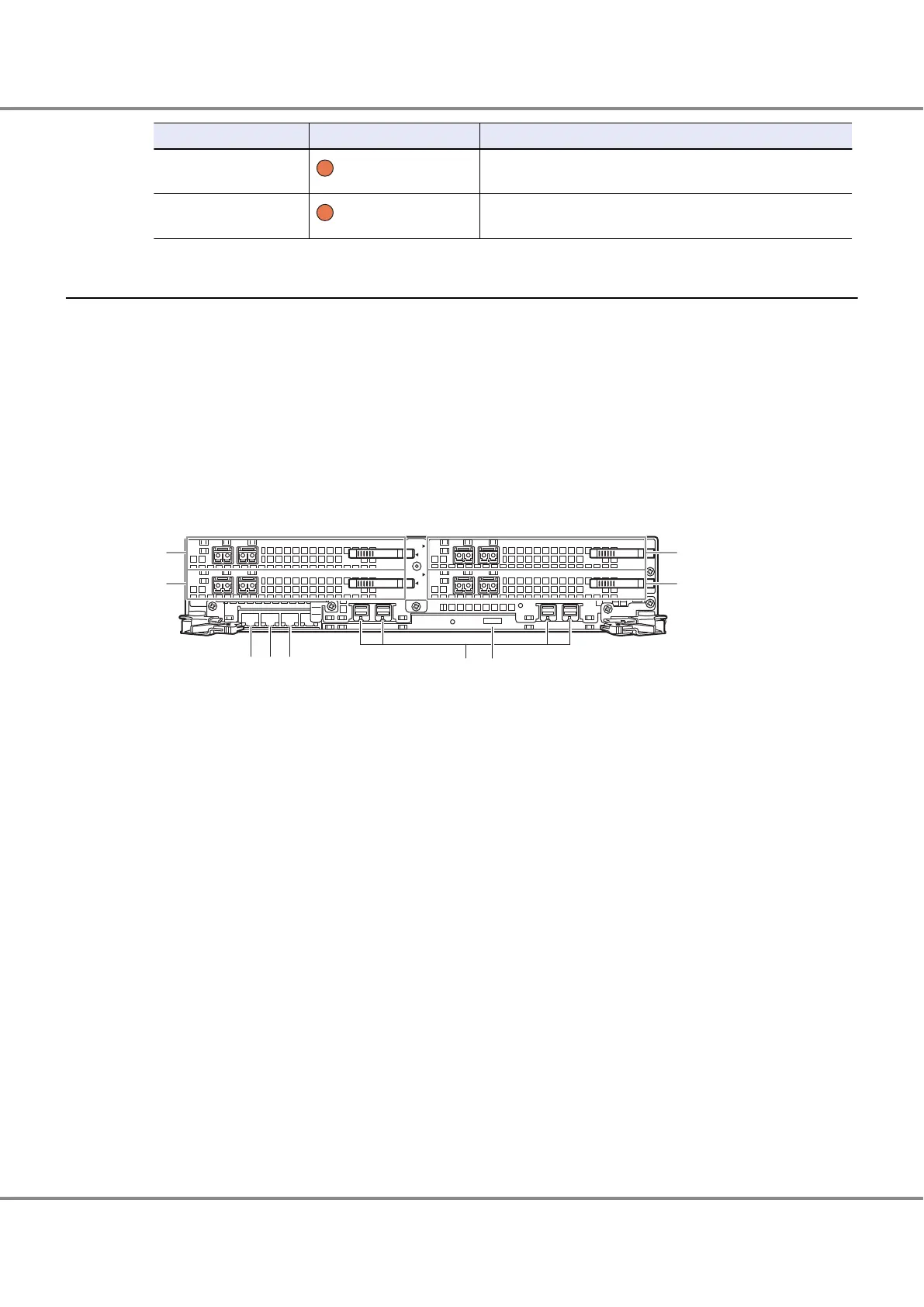

Figure 1.6 shows the controller.
Figure 1.6 Controller
1
3
2
4
7956 8
1. Host interface (CA#0)
Install host interfaces. For details, refer to "
■ Host Interfaces" (page 18).
2. Host interface (CA#1)
Install host interfaces. For details, refer to "
■ Host Interfaces" (page 18).
3. Host interface (CA#2)
Install host interfaces. For details, refer to "
■ Host Interfaces" (page 18).
4. Host interface (CA#3)
Install host interfaces. For details, refer to "
■ Host Interfaces" (page 18).
5. FST (LAN) port
A port that is dedicated for maintenance engineers. Customers must not use this port.
6. RMT (LAN) port
This port is used for connecting a LAN cable and used for the remote support function. This port uses an
RJ-45 connector.
7. MNT (LAN) port
This port is used for connecting a LAN cable and used for operation management. This port uses an RJ-45
connector.
8. DI (OUT) port
This port is used to connect a controller enclosure to a drive enclosure with a mini SAS HD cable between
enclosures.
Chapter 1 Component Names and LED Names
1.1 Controller Enclosures
16
FUJITSU Storage ETERNUS AF650 S2, ETERNUS AF650 All-Flash Arrays
Operation Guide (Basic)
Copyright 2017 FUJITSU LIMITED
P3AG-1932-04ENZ0
