6. DATA TRANSFER
6-6
7. To change the baud rate, press the SELECT BPS soft key.

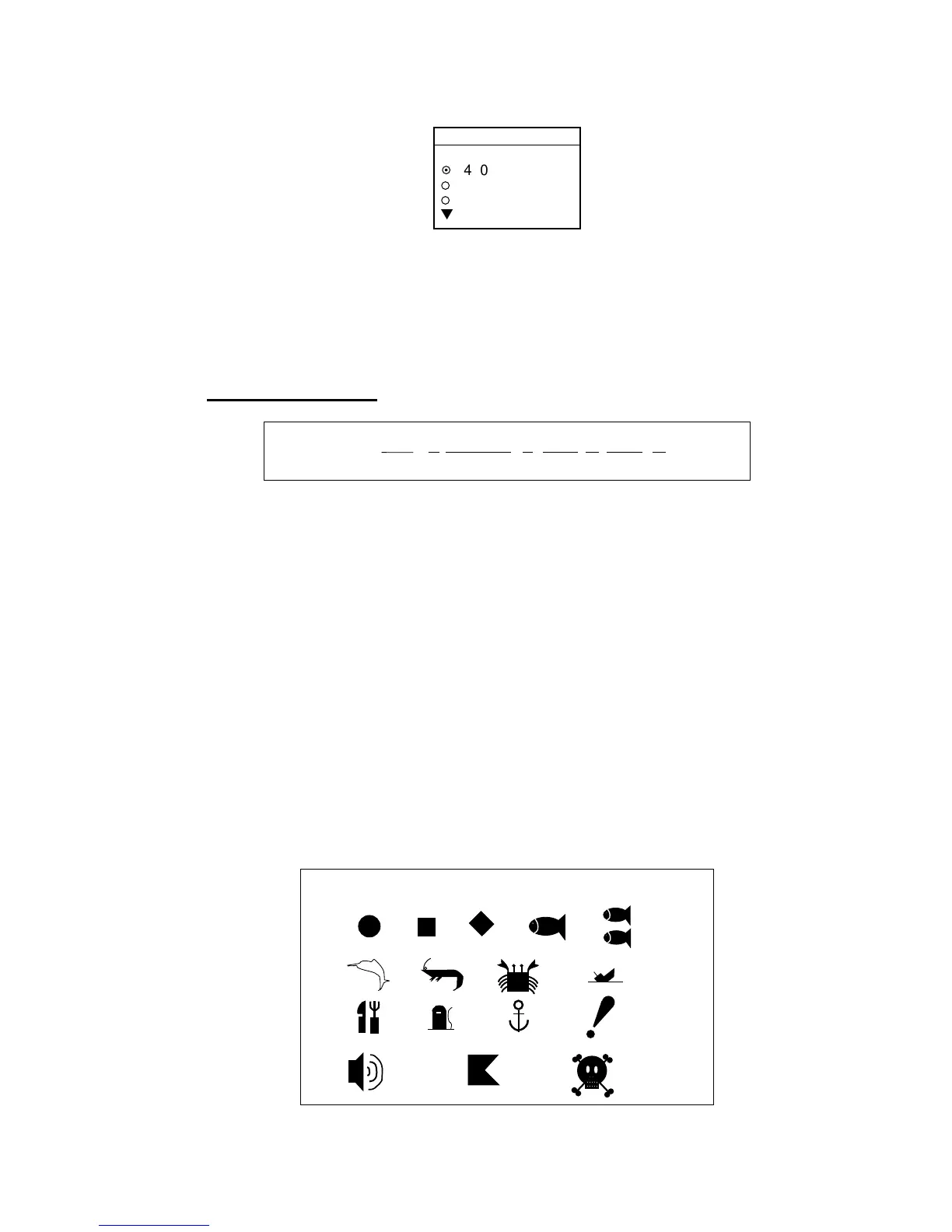

BAUD RATE
▲
¡
¡
▼
¤
4800 bps
9600 bps
19200 bps
Baud rate window
8. Select baud rate, then press the ENTER soft key.
9. Press the DWLOAD or UPLOAD soft key. You are asked if you are ready to
download or upload waypoints and routes.
10. Push the [ENTER] knob to download (upload).
Waypoint data format
1 2 3 4 5 6 77
PFEC, GPwpl, llll.llll, a, yyyyy.yyy, a, c----c, c, c----c, a <CR><LF>
8
Waypoint data format
1: Waypoint latitude
2: N/S
3: Waypoint longitude
4: E/W
5: Waypoint name (Number of characters is fixed to 6 and space code is placed
when the number of characters are less than 6.)
6: Waypoint color
7: Waypoint comment (1 byte for mark code + 13 characters of comment.)
1st byte of mark code: Fixed to “@”.
2nd byte of mark code: Internal mark code. See Note 1.
8. Information of marking waypoint. Always set to “A”.
“A”: Displayed
“V”: Not displayed
Note 1: The following characters can be used for comments:
_ABCDEFGHIJKLMNOPQRSTUVWXYZ0123456789&'#
=9 =:
=;
=<
= =
=>
=?
=@
=A
=B
=C
=D
=E
=F
=G
=H
Characters available for comment
