1.5 Selecting a Display
1.5.1 Display modes
If you have a radar, navigator, network sounder and external video source (video
recorder, etc., optional PIP board required) six full-screen displays are available:
radar, plotter, echo sounder, nav data, overlay, and external video. In addition to
the full-screen display, you can divide the screen into halves and thirds to show
two and three sets of images on a combination display.

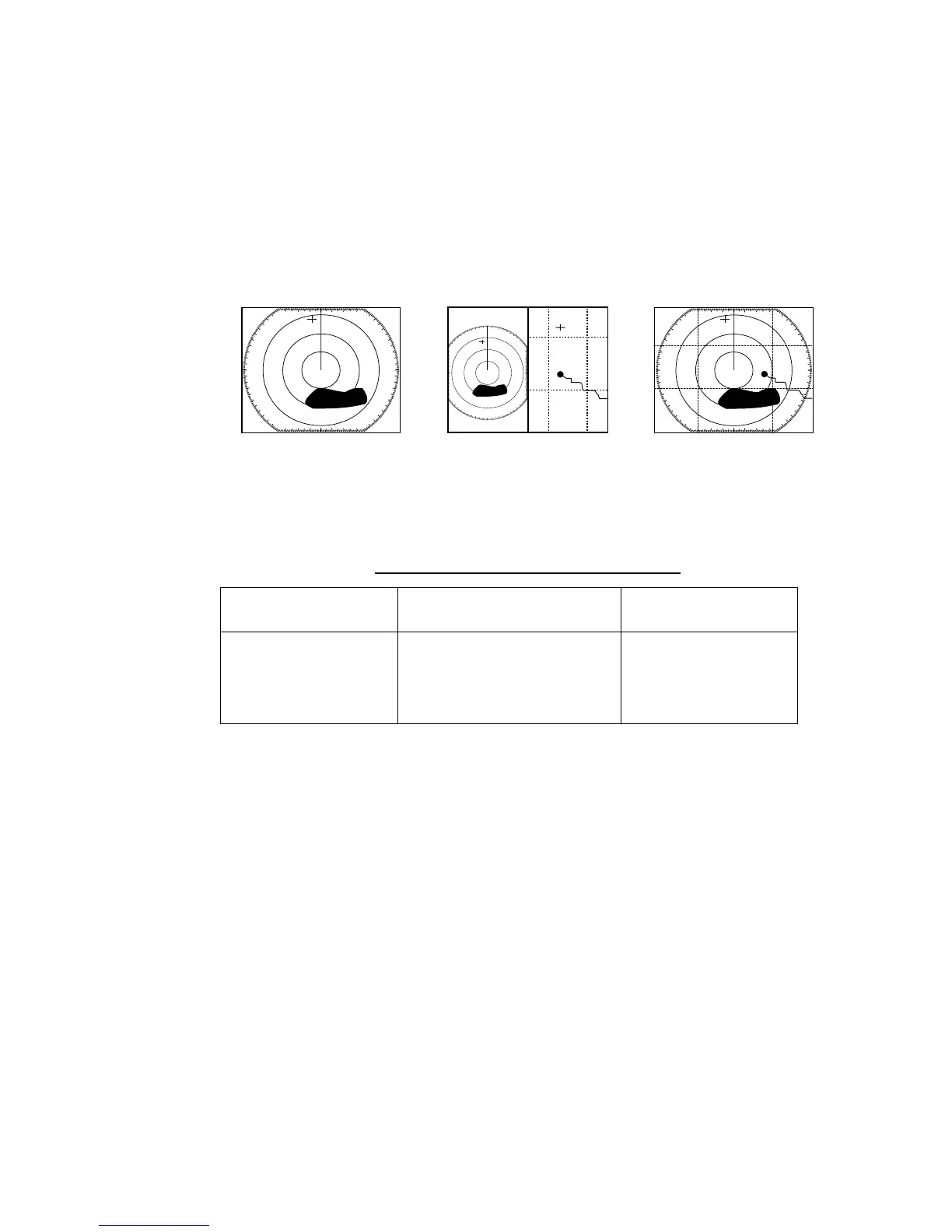

Full screen Combination screen Overlay screen
(radar) (radar + plotter) (plotter + radar only)
Display screens
The table below shows the displays available with each screen type.
Screen type and available display screen
Full screen Combination screen options
(half- or thirds-screen)
Overlay screen
options
Plotter, radar, sounder,
nav data, external
video, overlay
Plotter, radar, sounder,
compass, highway,
compass/highway, nav data,
overlay, external video
Radar + plotter
