1. OPERATIONAL OVERVIEW
1-10
1.5.2 Selecting a display
1. Press the [DISP] key to show the display selection window. The icons of
modes not available are marked with an “X.” HOTPAGE 1-HOTPAGE 6 are
user-arrangeable displays called “hot pages,” which you can configure as you
like. For further details, see the paragraph “5.6 Hot Page Setup.”
RADAR PLOTTER SOUNDER NAV DATA OVERLAY EXT VIDEO
· TURN KNOB TO SELECT MODE
AND PUSH KNOB TO ENTER.
· PUSH ANY SOFT KEY TO
SELECT IMAGE SOURCE.
Basic display
screens
Hot pages
Selected
item
HOTPAGE 1 HOTPAGE 2 HOTPAGE 3 HOTPAGE 4 HOTPAGE 5 HOTPAGE 6

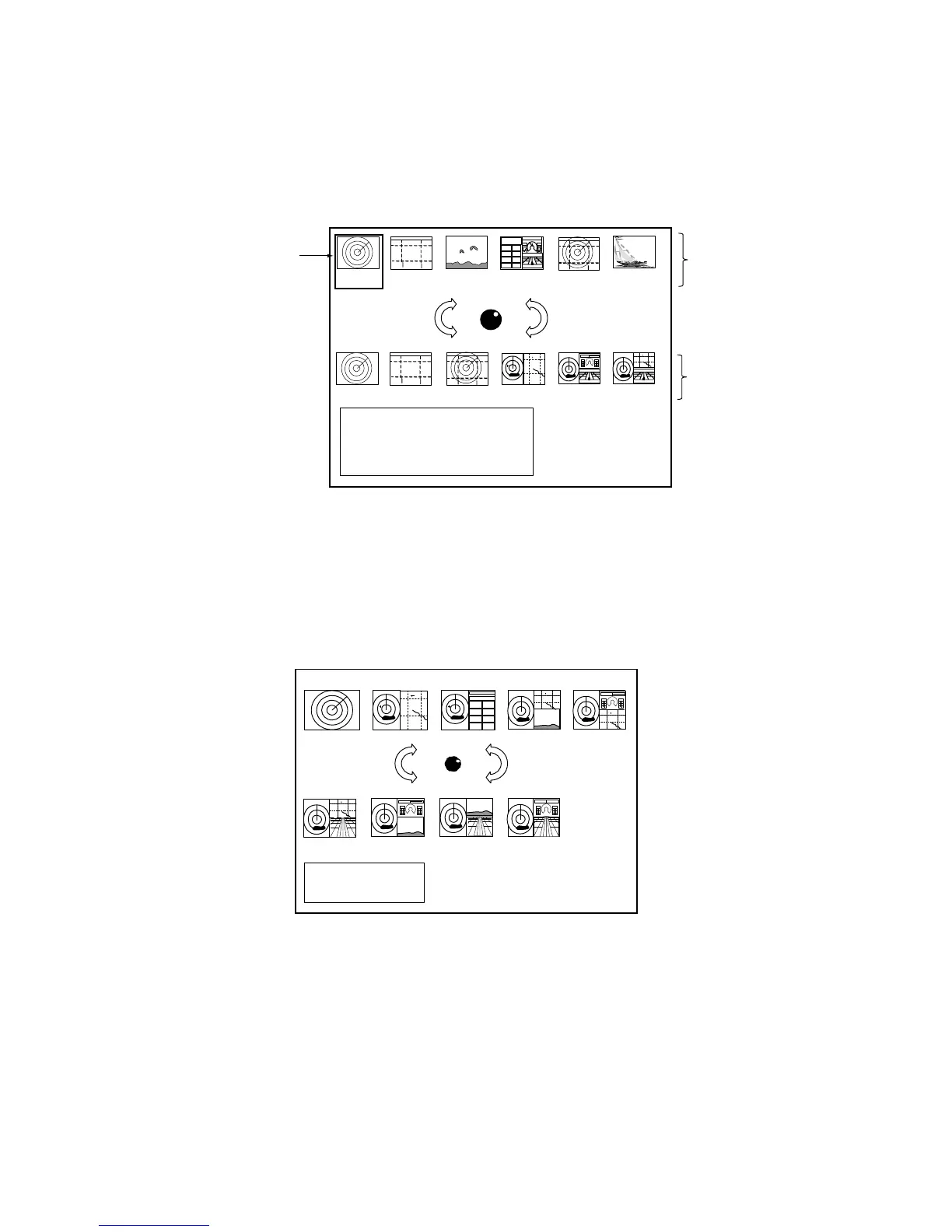

Display screen selection window
2. Rotate the [ENTER] knob to select a basic display screen or a hot page
screen.
3. Push the [ENTER] knob.
4. If you selected a basic display screen, a group of appropriate combination
displays appear. In the example below, the radar combination screens are
shown.
PUSH ENTER KNOB.
Radar combination screen selection window
5. Rotate the [ENTER] knob to select display desired.
6. Push the [ENTER] knob to finish.
