5.5 Memory Contents Backed-up by Battery
Communication Unit: EE-PROM
MES ID, Foward ID and Return ID is factory-programmed. When replacing
the CPU Board (16P0148), remove the EEROM from the old board and put it
on the new board.
CR 7
CR 8
CR 9
CR 2
CR 3
CR 4 CR 5
CR 6
TP4TP5
S1
U39 : ROM
U44 : DEMOD
ROM
BATT
BUZZER
U11 : EE-PROM
TP1
TP3
TP2
U11 (M6M80041P) : EE-PROM
Forward/Return ID programmed
BACK UP
•
U40 (SRM20100LLM70) : SRAM
•
U36 (RTC62423) : TIMER
JP1
BACK UP ON/OFF
U40
U36

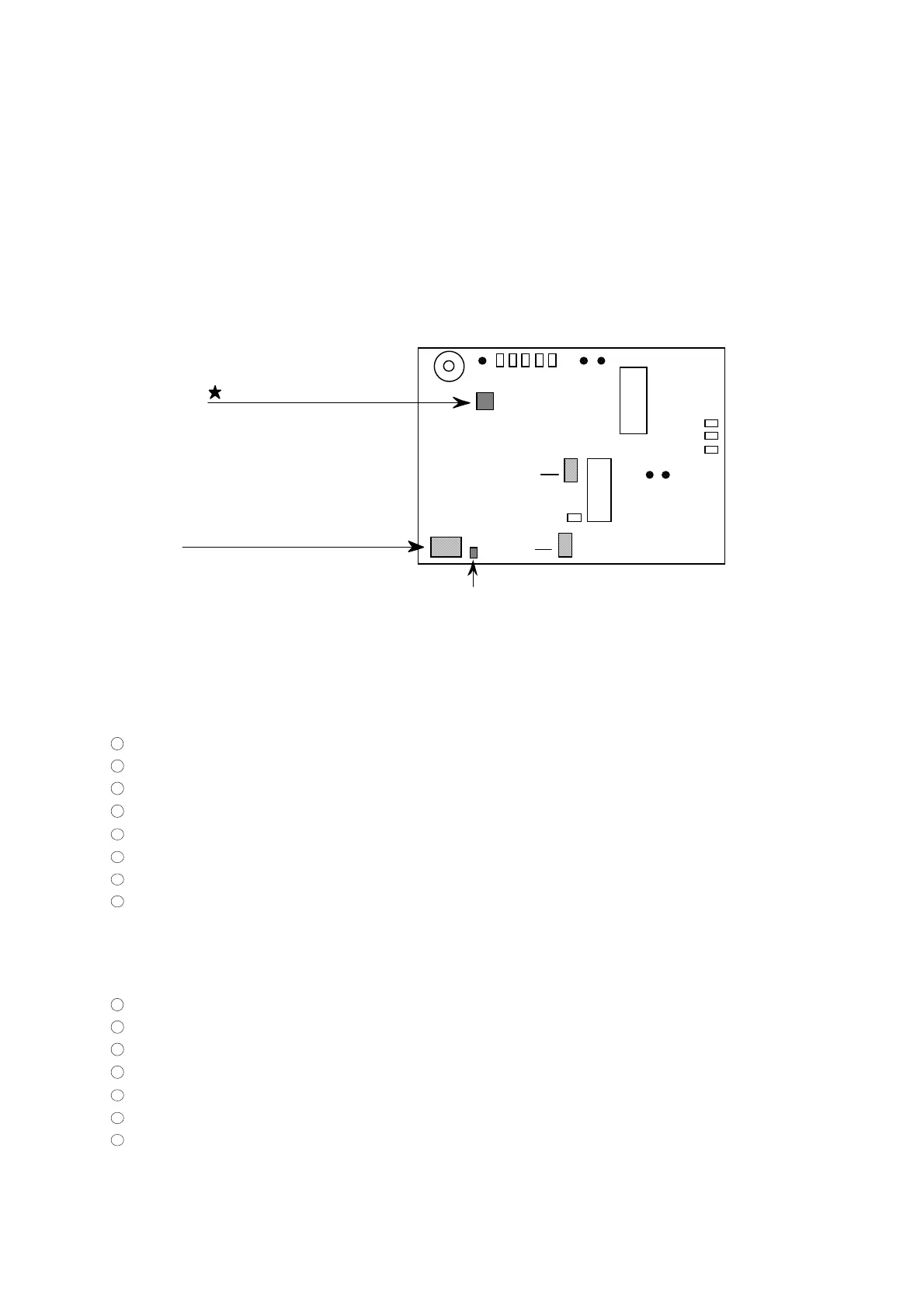

Figure 5-4 CPU Board
Communication Unit: S-RAM (U40)
1
System Setup Menu--------[F8] [2]
2
EGC Setup Menu-----------[F8] [5]
3
NCS Channel List Menu --[F8] [9] [4]
4
EGC Channel List Menu --[F8] [9] [3]
5
PV Test Result--------------[F7] [6] [2]
6
Distress Message Setup----[F8] [1]
7
Ship Position----------------[F9]
8
Ocean Region---------------[F7] [5]
Terminal Unit: Flash ROM
1
LES List Menu--------------[F8] [9] [2]
2
Station List Menu ----------[F8] [9] [1]
3
Editor Setup-----------------[F8] [3]
4
Terminal Setup -------------[F8] [4]
5
Auto Mode Setup-----------[F8] [6]
6
E-Mail Setup----------------[F8] [7]
7
E-Mail Service List --------[F8] [9] [5]
