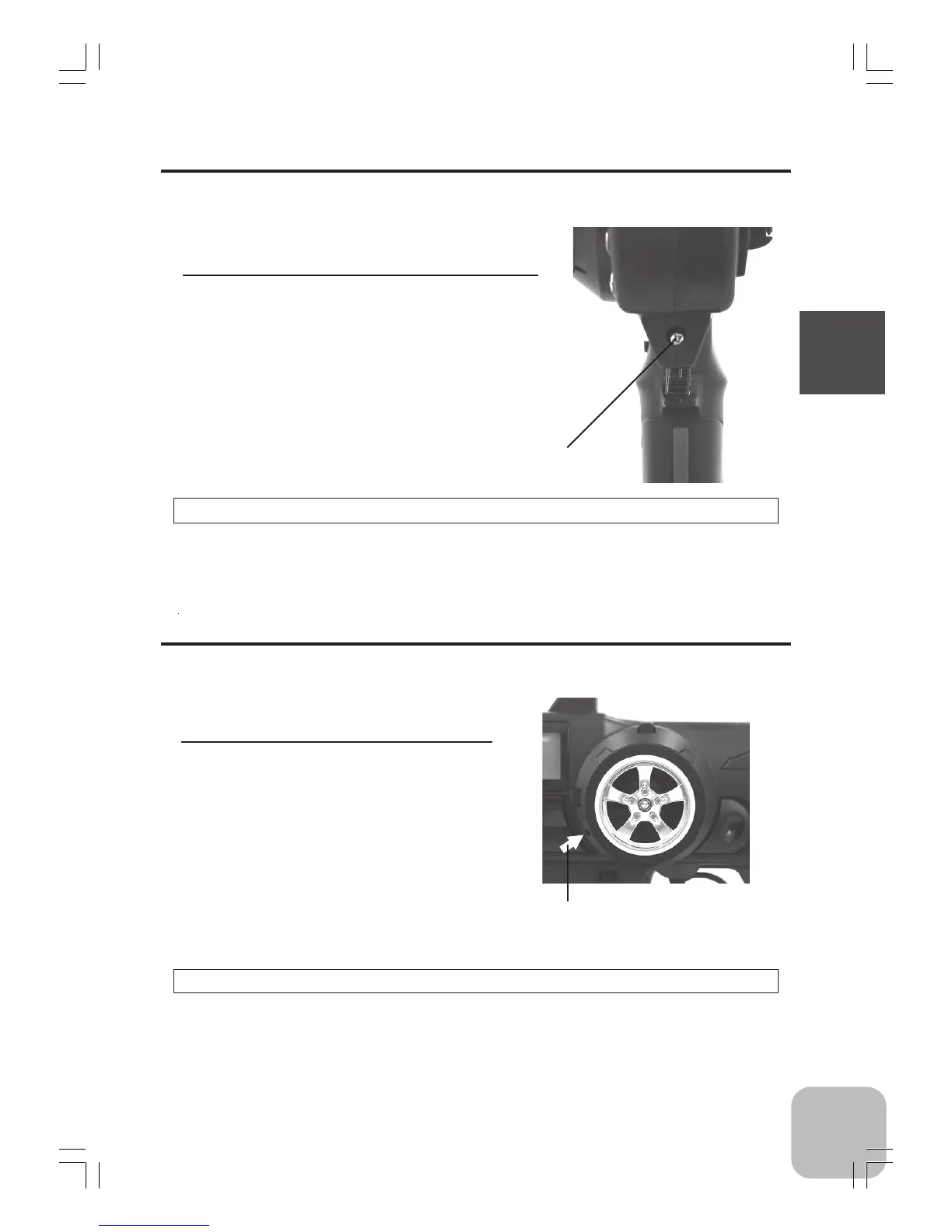

Mechanical ATL Adjustment
Mechanical ATL
adjusting screw
Adjustment
Using a Phillips screwdriver, adjust the trigger
brake (reverse) side stroke by turning the
screw through the adjusting hole indicated by
the arrow in the figure. (The screw moves the
throttle trigger stopper.)
- When the adjusting screw is turned clockwise, the
stroke becomes narrower.
Make this adjustment when you want to make the throttle trigger brake (reverse) side
stroke narrower.
Caution
When the stroke is adjusted, the throttle servo travel must be adjusted by data setting.
Wheel Tension Adjustment
Make this adjustment when you want to change the steering wheel spring tension.
Adjustment
Turn the screw inside the adjusting
hole using a Phillips screwdriver.
Caution
If turned too far counterclockwise, the adjusting screw may fall out.
Tension adjusting screw
- Turning the adjusting screw
clockwise increases the spring
tension.
To Next Page
