Electrical Specifications
Stepper
Supply Voltage 20-30 VDC (12-30 VDC available with ISCNTL)
Max Current (Per Axis) 1.4 Amps/Phase (user-configurable)
Amplifier Gains (Amps/Phase) 0.5, 0.75, 1.0, 1.4
Max Step Frequency 6 MHz
Motor Type Bipolar 2-Phase
Table 4.19: Amplifier Electrical Specifications
Mating Connectors
Cable Connectors Terminal Pins On board Connector
POWER
6-pin Mini-Fit, Jr.™ (Male)
Molex #0039012065
Molex #0444761112
6-pin Mini-Fit, Jr.™ (Female)
Molex #0039310060
A,B,C,D: 4-pin
Motor Power
Connectors
4-pin Mini-Fit, Jr.™ (Male)
Molex #0039012045
Molex #0444761112
4-pin Mini-Fit, Jr.™ (Female)
Molex #0039310040
Table 4.20: Molex part numbers for connectors and terminal pin
Power Connector
Pin Number Connection
1,2,3 DC Power Supply Ground
4,5,6 +VS (DC Power)
Motor Connector
Pin Number Stepper
1 B-
2 A-
3 B+
4 A+
Table 4.21: Power and Motor Connector Pin-outs
Chapter 5 Integrated Components▫ 33 DMC-40x0 UL Installation Manual

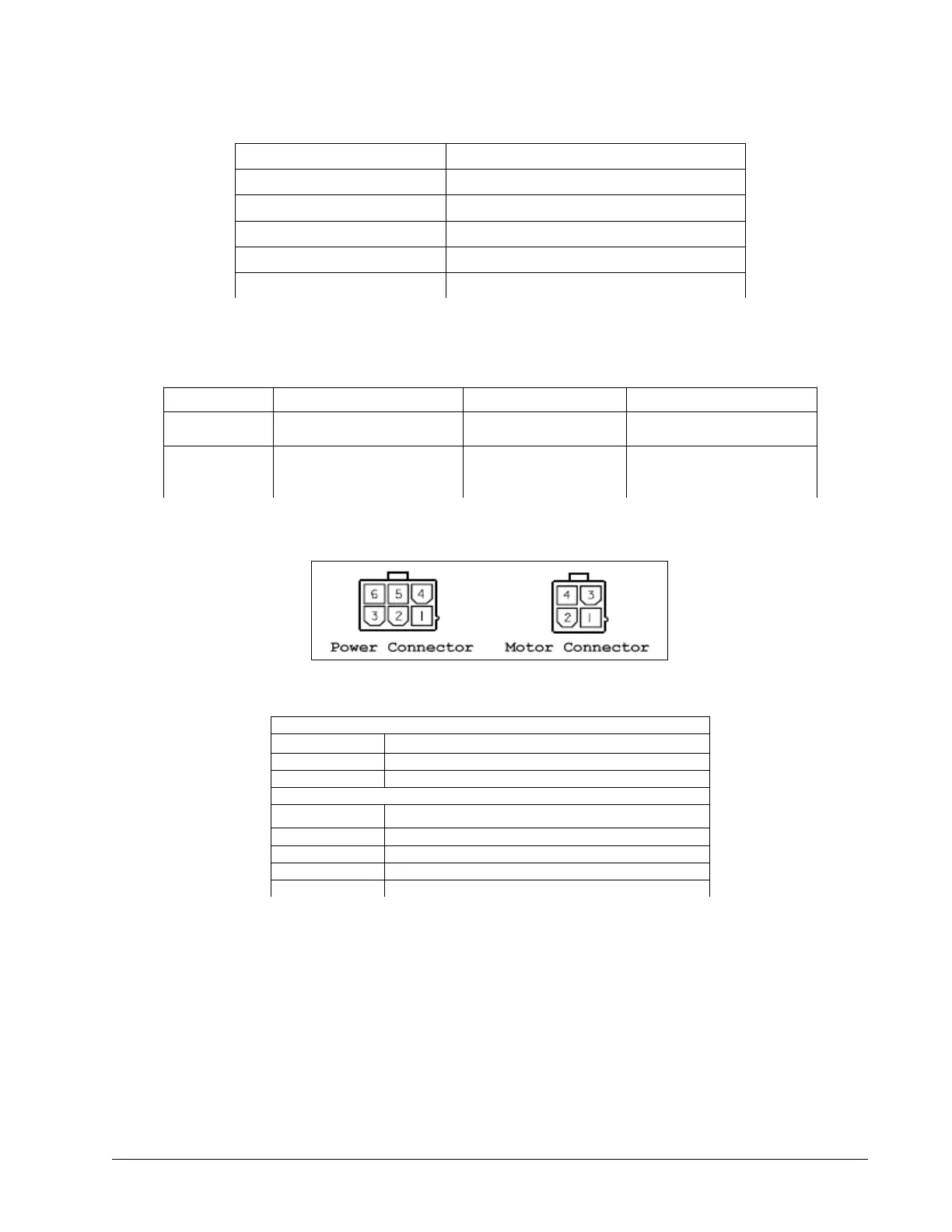

Figure 4.7: Power and Motor Connector Diagram
