ICM-42000 (-I000)
Description

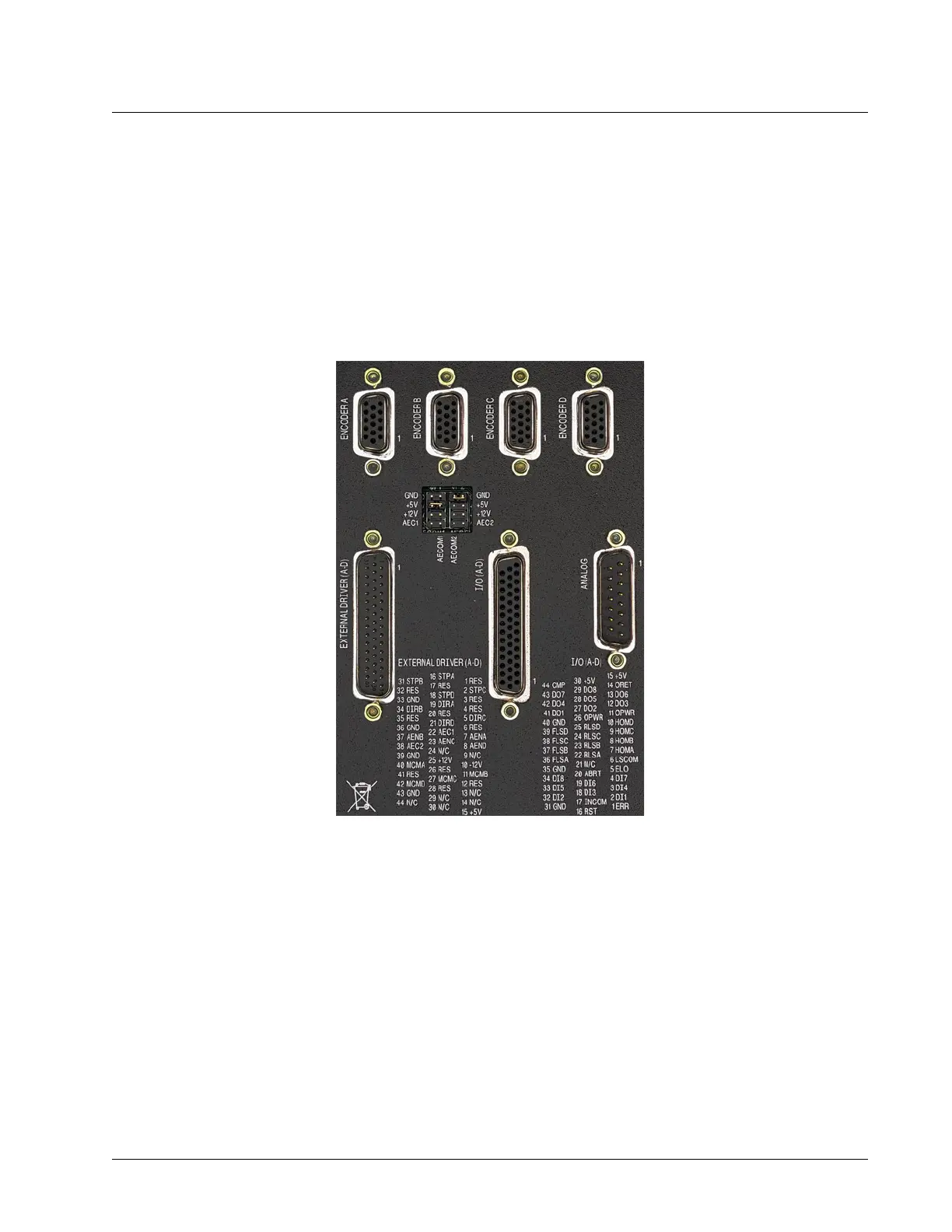

The ICM-42000 resides inside the DMC-40x0 enclosure and breaks out the internal CPU board connector into
convenient D-sub connectors for interface to external amplifiers and I/O devices. The ICM-42000 provides a 15-pin
HD D-sub connector for the encoders on each axis, a 15-pin D-sub for analog inputs, a 44-pin HD D-sub for I/O, and
a 44-pin D-sub for the motor command signals.
For more information regarding the Amplifier Enable Operation, see Chapter 3 of the DMC-40x0 User Manual.
