ICM-42200 (-I200)
Description

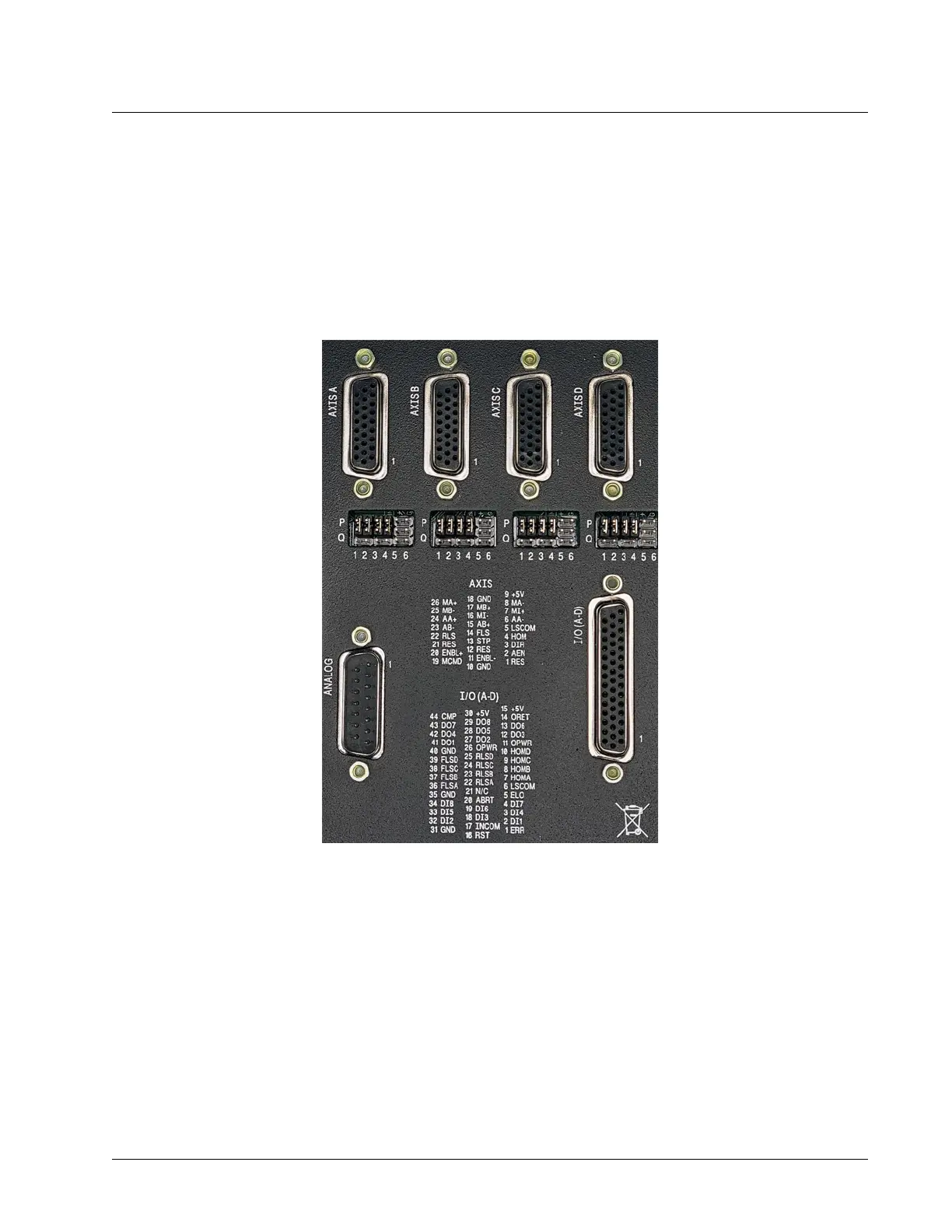

The ICM-42200 interconnect option resides inside the DMC-40x0 enclosure and provides a pin-out that is optimized
for easy connection to external drives. The ICM-42200 uses 26-pin HD D-sub connectors for each axis that includes
encoder, limit, home, and motor command signals. Other connectors include a 44-pin HD D-sub for digital I/O, and
a 15-pin LD D-sub for analog I/O.
For more information regarding the Amplifier Enable Operation, see Chapter 3 of the DMC-40x0 User Manual.
Chapter 5 Integrated Components▫ 51 DMC-40x0 UL Installation Manual
