Gamma Vacuum SPCe - Figure 6: Units; Figure 7: Setpoint Function Config; Figure 8: Setpoint

▪ F - MPCe/LPCe programmed calibr
aon factor (typically set to 1)
▪ S - Congured pump size in l/s.
Units
The Units parameter changes the displayed unit of measurement for
pressure. It can be changed to display in Torr, m Bar, or Pascal. (Torr is the
default.)

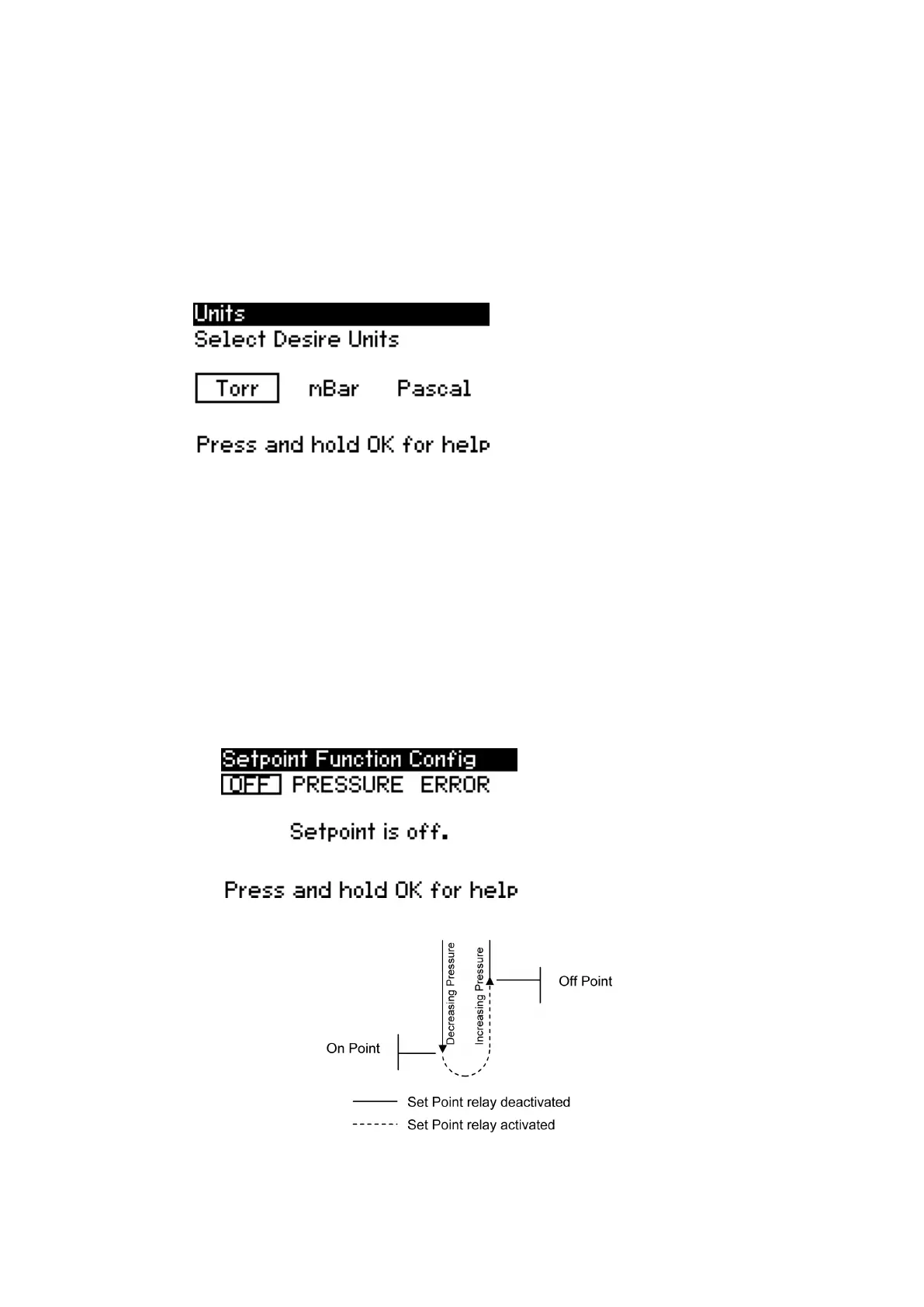

Figure 6. Units
Setpoint
▪ On Point: The setpoint will deactivate when the pressure is equal to or
below this pressure.
▪ O Point: The setpoint relay will activate when the pressure is equal to or
above this pressure.
▪ The o point pressure must be equal to or greater than the on point.
▪ When the o point value is set to 0.1e-10, the o point value will be
ignored, and once the setpoint is active, the setpoint will remain active
independent of the pressure thereafter.
▪ Error: The setpoint will turn on when the SPCe has an error condition.
Figure 7. Setpoint function cong
Figure 8. Setpoint
