Target module »DP-HR-U-CPU«
5 · Target and user modules (DP-HR-U)
Installation
Connecting the target computer

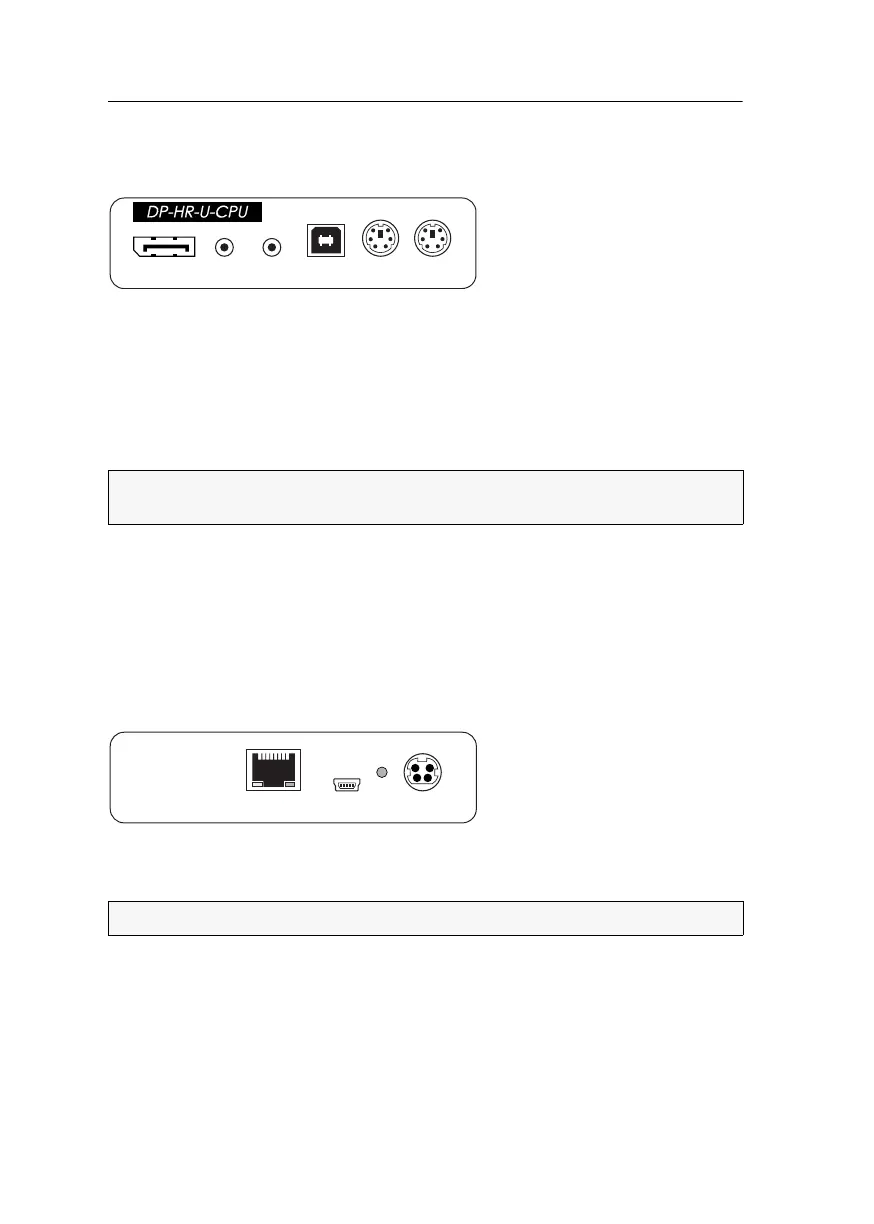

DP CPU: Use the supplied video cables to connect the computer’s Display Port video
output to this interface.
Line In: Use one of the supplied audio cables to connect the computer’s Line Out
interface to this interface.
Line Out: Use one of the supplied audio cables to connect the computer’s Line In inter-
face to this interface.
USB K/M: Use the USB device cable to connect one of the computer’s USB interfaces
to this interface.
Keyb.: Use the purple plug of an optional Twin-PS/2 cable to connect the computer’s
PS/2 keyboard interface to this interface.
Mouse: Use the green plug of an optional Twin-PS/2 cable to connect the computer’s
PS/2 mouse interface to this interface.
Connection to the matrix switch
Trans.: Use a category 5e (or better) twisted pair cable to connect this interface to a
Dynamic
Port (RJ45) of a matrix switch.
Power supply
Power In: Insert the power pack’s connection cable to this interface.
Connect the power cable to the power pack and a power socket.
NOTE:
Keyboard and mouse signals can be transmitted to the computer using either
the PS/2 interfaces or the USB interface.
ADVICE:
You can also connect the target module directly to a compatible user module.
MouseKeyb.
USB K/M
Line In
Line Out
DP CPU
Power In
Service
Power
Trans.
