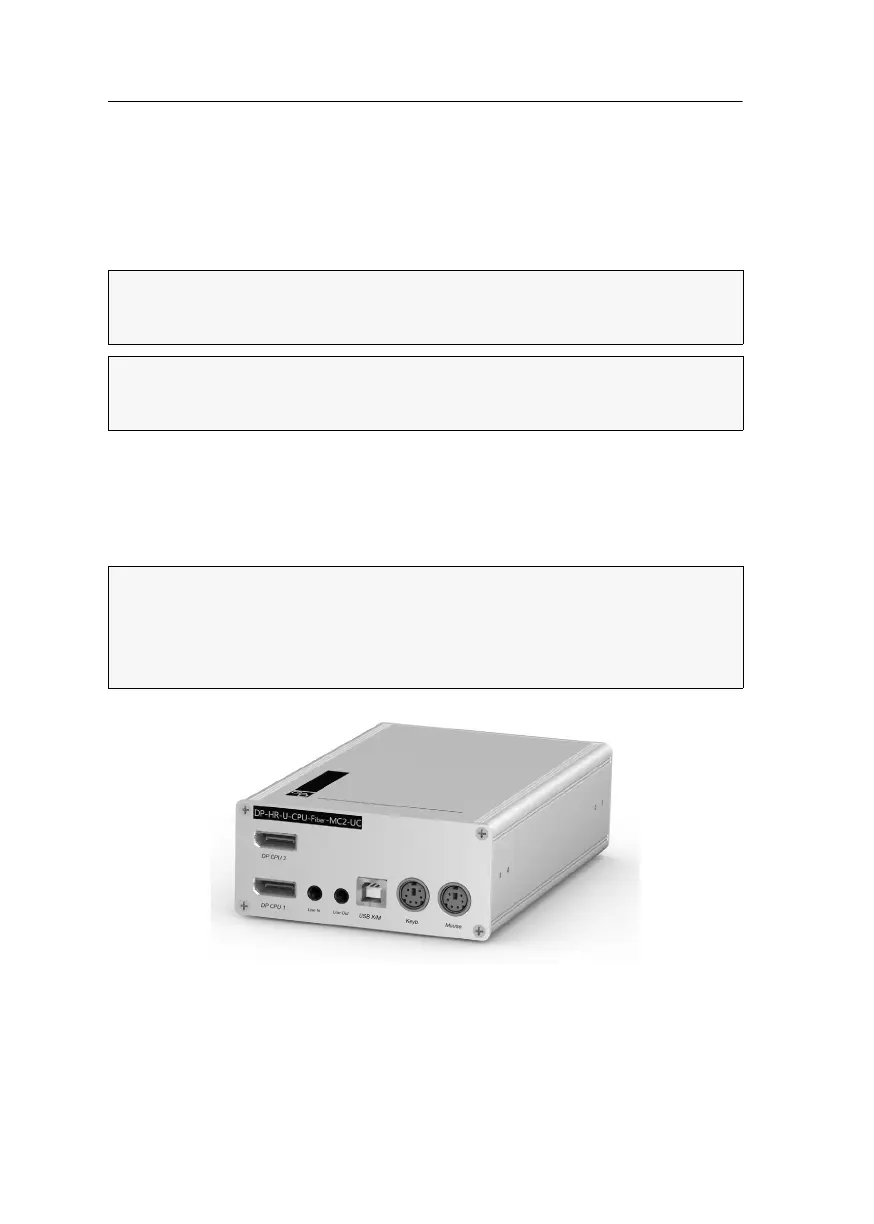

Target module »DP-HR-U-CPU-Fiber-MC2-UC«
47 · Target and user modules (DP-HR-U)
Target module
»DP
-HR-U-CPU-Fiber-MC2-UC«
With DP-HR-U-CPU-Fiber-MC2-UC target modules, you can connect a computer with
two
DisplayPort graphics outputs (dual-head) to two different digital matrix switches of
the ControlCenter-Compact or ControlCenter-Digital series.
At the consoles of both matrix switches, users can access a target module to operate
the connected computer.
The data stream of the USB devices connected to the active user module (DVI-U-CON,
DP-U-CON and DP-HR-U-CON series only) is transmitted to the computer with up to 16
Mbit/s.
NOTE:
This target module can be connected to a compatible fiber port of
ControlCenter-Compact matrix switches or ControlCenter-Digital matrix switches
(requires CCD-I/O 16-Card-Fiber).
IMPORTANT:
Both, the target module and the fiber ports are available as single-
mode variants or as multi-mode variants. Make sure that the port at the target mod
-
ule, thefiber port and the optical fibers are compatible with each other.
IMPORTANT:
Only consoles configured for multi-monitor operation via channel
grouping can show the images of both of the computer’s video outputs on separate
monitors.
At consoles with one monitor only, the image of the computer’s second video out-
put is not displayed.
