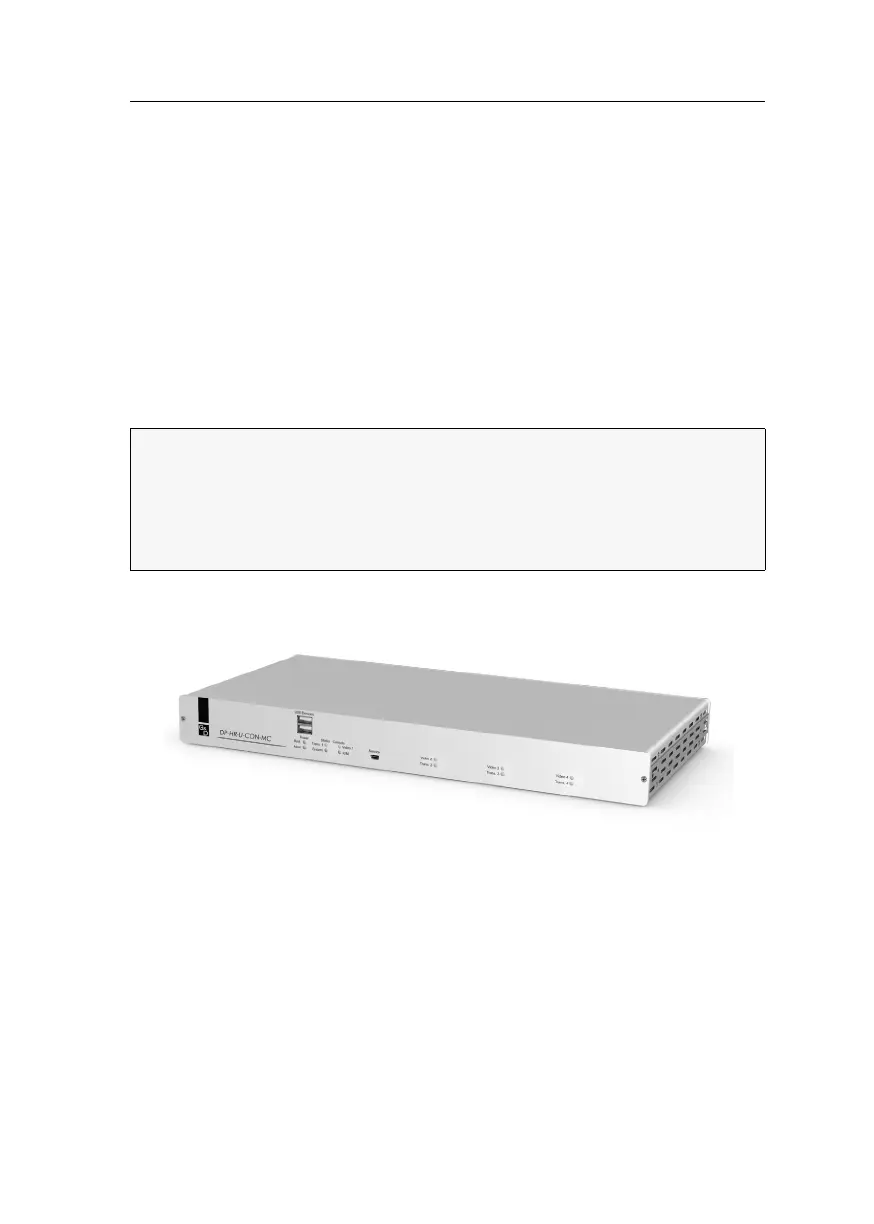

User module »DP-HR-U-CON-MC4«
With DP-HR-U-CON-MC4 user modules, you can connect a dual-monitor console (four
DisplayPort monitors, keyboard, mouse and audio devices) to a digital matrix switch
of the ControlCenter-Compact, ControlCenter-Digital or the DVICenter series.
At the installed console, matrix switch users can access a target module to operate
the connected computer.
The data stream of the connected USB devices is transmitted to the active target
module with up to 16 Mbit/s (
DVI-U-CPU, DP-U-CPU, DP-HR-U-CPU and VGA-U-CPU series
only).
When using the console to access a multi-monitor computer with four graphics out-
puts, the separate images of the graphics outputs are displayed on the console moni-
tors.
When accessing the system with a target module with only one graphics input, only
the first monitor shows an image.
NOTE: Connecting a multi-monitor computer with four video outputs requires four
target modules of the
DP-HR-CPU series or two target modules of the DP-HR-CPU-MC2
series.
In the web application, you can add the target modules of the multi-monitor com-
puters to a channel groups More information about this topic is given in the chap-
ter Expanding the system through port grouping of the web application manual.
