G&D DP-HR-CPU User Manual

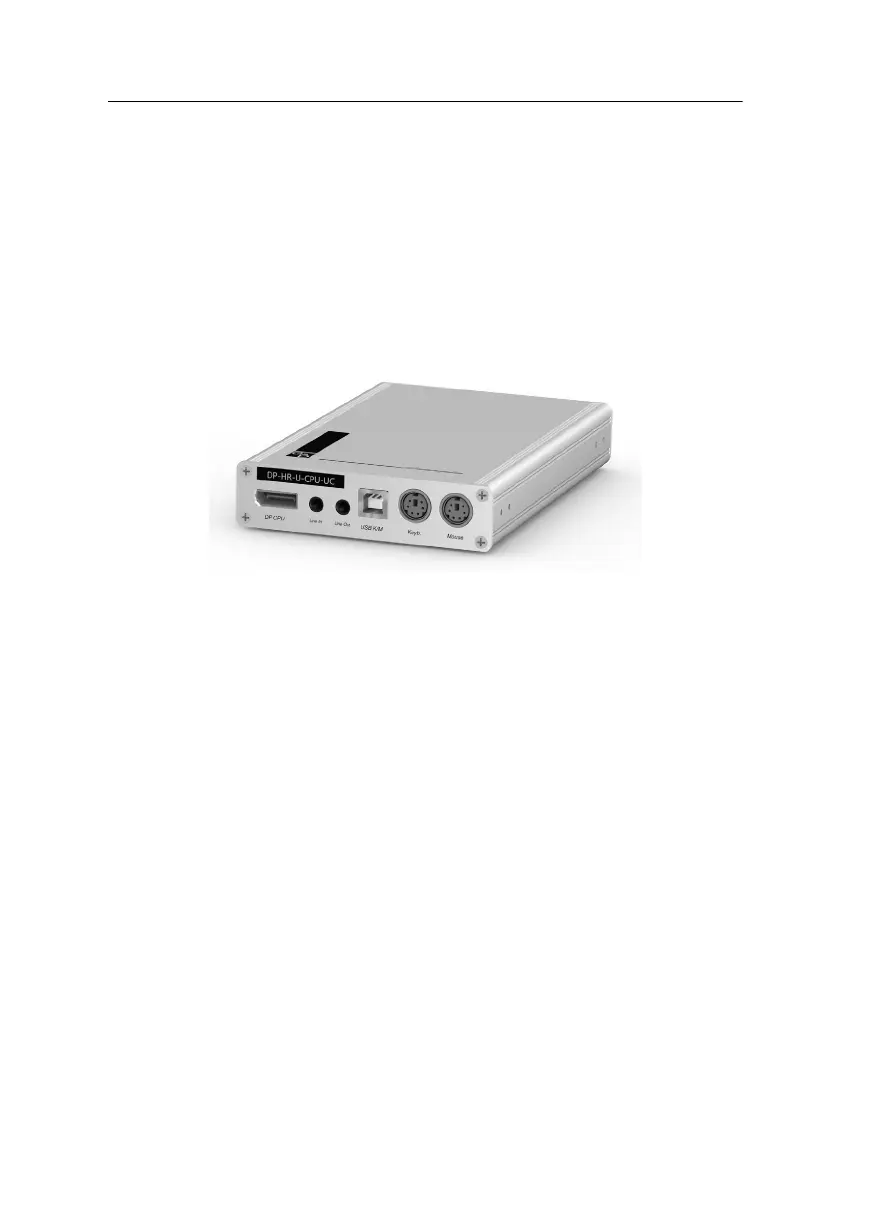

Target module »DP-HR-U-CPU-UC«
9 · Target and user modules (DP-HR-U)
Target module »DP-HR-U-CPU-UC«
With DP-HR-U-CPU-UC target modules, you can connect a computer with DisplayPort
graphics output to two different digital matrix switch of the ControlCenter-Compact,
ControlCenter-Digital or the DVICenter series.
At the consoles of both matrix switches, users can access a target module to operate
the connected computer.
The data stream of the USB devices connected to the active user module (DVI-U-CON,
DP-U-CON and DP-HR-U-CON series only) is transmitted to the computer with up to 16
Mbit/s.
Package contents
 1 × DP-HR-U-CPU-UC target module
 1 × DisplayPort video cable (DP-Cable-M/M-2)
 1 × USB device cable
 2 × Audio cable
 1 × Power pack (12V/2A, only with variants incl. PowerPack)
 1 × Power cable (only with variants incl. PowerPack)
 1 × EasyStart flyer
 1 × »Safety instructions« flyer
Required accessories
 2 × Category 5e (or better) patch cables to connect the target module to
two different matrix switches
