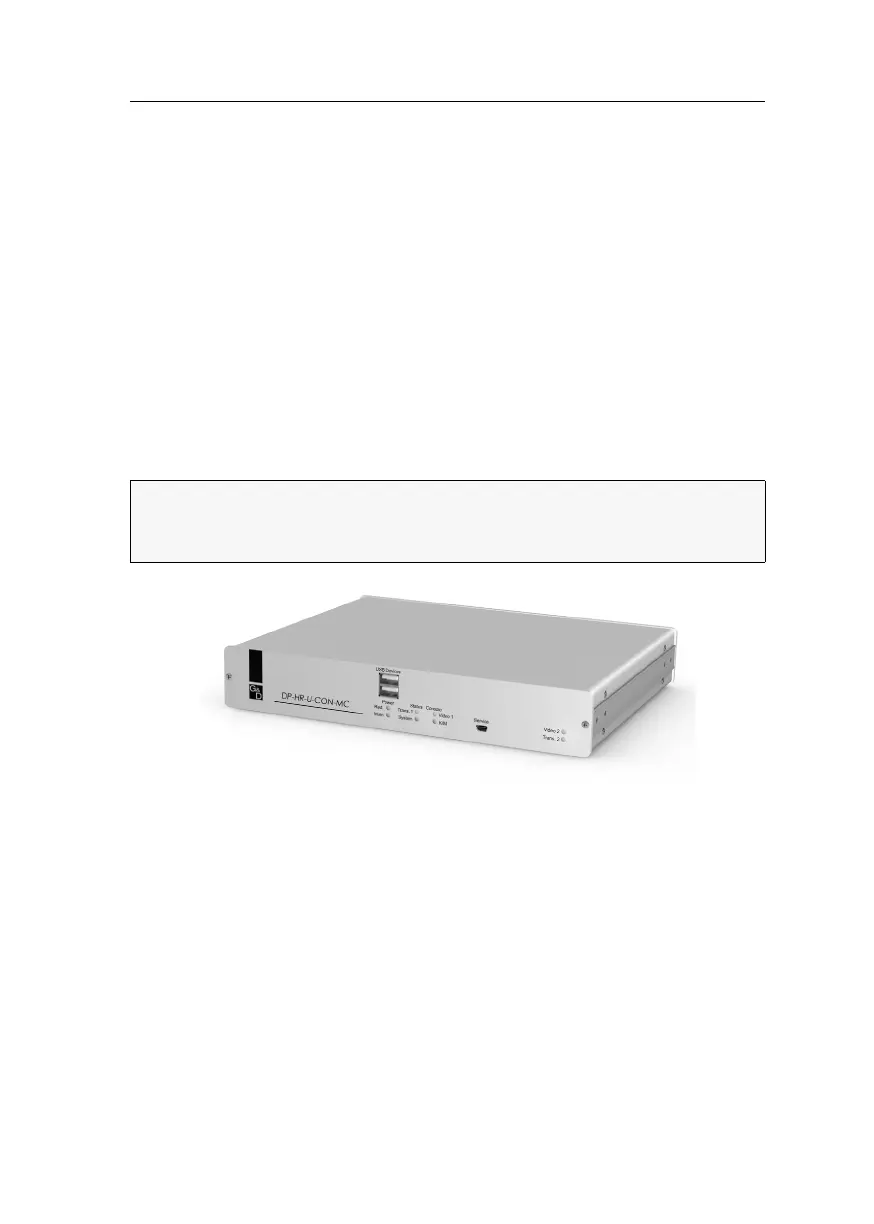

G&D DP-HR-CPU User Manual

User module »DP-HR-U-CON-MC2«
Target and user modules (DP-HR-U) · 92
User module »DP-HR-U-CON-MC2«
With DP-HR-U-CON-MC2 user modules, you can connect a dual-monitor console (two
DisplayPort monitors, keyboard, mouse and audio devices) to a digital matrix switch
of the ControlCenter-Compact, ControlCenter-Digital or the DVICenter series.
At the installed console, matrix switch users can access a target module to operate
the connected computer.
The data stream of the connected USB devices is transmitted to the active target
module with up to 16 Mbit/s (
DVI-U-CPU, DP-U-CPU, DP-HR-U-CPU and VGA-U-CPU series
only).
When using the console to access a target module DP-HR-CPU-MC2 connected to a
dual-head computer, the monitors display the separate images of the graphics out
-
puts.
When accessing a target module with one graphics input only, only the first monitor
displays an image.
Package contents
 1 × User module DP-HR-U-CON-MC2
 1 × Power cable
 1 × EasyStart flyer
 1 × »Safety instructions« flyer
ADVICE: Instead of an MC2 target module, you can also connect a dual-head com-
puter by using two separate target modules DP-HR-CPU.
In this case, add both target modules in the web application to channel group.
