User module »DP-HR-U-CON-MC2«
93 · Target and user modules (DP-HR-U)
Required accessories
2 × Category 5e (or better) twisted pair cables to connect the user module to a
KVM matrix switch
Installation

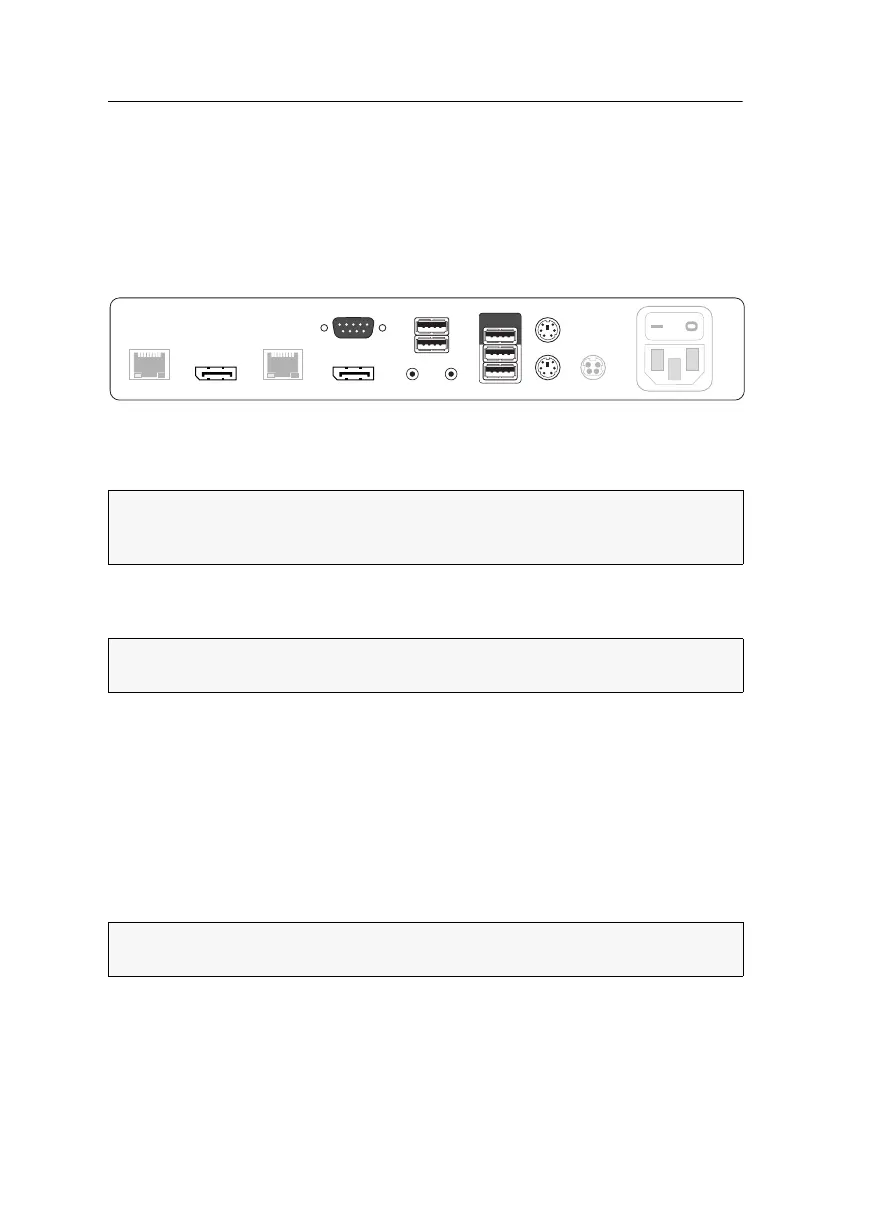

Connecting console devices
DisplayPort Out 1: Connect the first console monitor.
DisplayPort Out 2: Connect the second console monitor.
Micro In: Connect the console microphone (optional).
Speaker: Connect the console speakers (optional).
Keyb.: Connect the console’s PS/2 keyboard.
Mouse: Connect the console’s PS/2 mouse.
Keyb./Mouse: Connect the console’s USB keyboard and/or USB mouse.
Generic: By default (Keyb./Mouse mode), you can use this interface to connect another
USB input device or supported displays or tablets.
Enable the Generic HID mode (see page 175 f.) if you want to connect another USB
input device. In this mode, data of the USB input device remains unaltered when
transmitted to the active target module.
USB Devices: Connect any USB devices to these interfaces. The data stream of the
connected USB device is transmitted to a compatible target module with up to 16
Mbit/s.
LED Out: If you purchased and added the TradeSwitch feature to the matrix switch,
connect the optional
TS-LED2 here (order number A6100041).
NOTE:
Check the monitor's manuals if the OSDs provide a setting for the mode of
the DisplayPort input. If so, select the mode in which the image data is processed
according to the standard DisplayPort 1.1.
NOTE:
Console keyboard and console mouse can be connected to the user module’s
USB or PS/2 interfaces.
IMPORTANT:
With enabled Generic HID mode, it is not possible to operate the OSD
with a keyboard connected to the
Generic socket.
Keyb./Mouse
Generic
Main Power
Micro In Red. Power
Speaker
Mouse
Keyb.
Transmission 2
DisplayPort Out 2
Transmission 1
LED Out
DisplayPort Out 1
USB Devices
