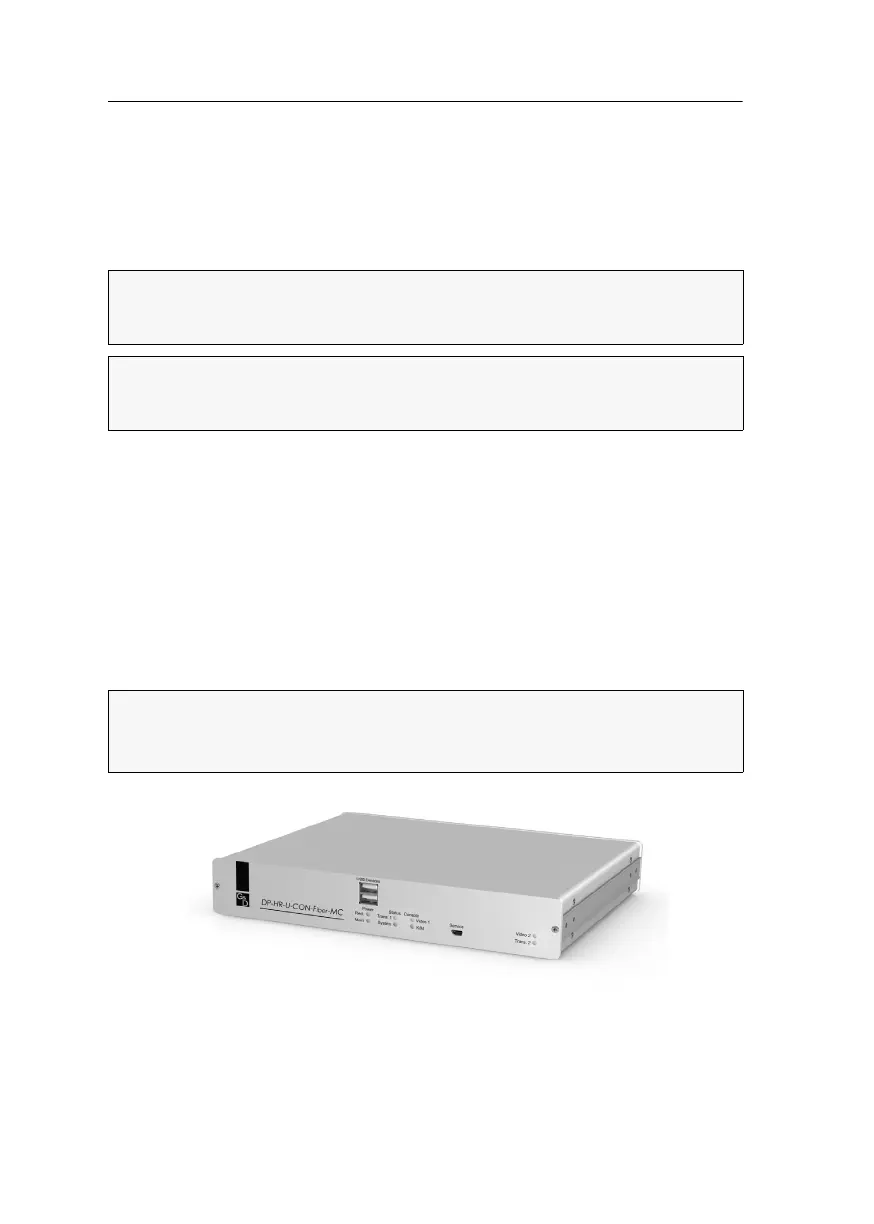

User module »DP-HR-U-CON-Fiber-MC2«
125 · Target and user modules (DP-HR-U)
User module
»DP-HR-U-CON-Fiber-MC2«
With DP-HR-U-CON-Fiber-MC2 user modules, you can connect a dual-monitor console
(two
DisplayPort monitors, keyboard, mouse and audio devices) to a digital matrix
switch of the ControlCenter-Compact or ControlCenter-Digital series.
At the installed console, matrix switch users can access a target module to operate
the connected computer.
The data stream of the connected USB devices is transmitted to the active target
module with up to 16 Mbit/s (
DVI-U-CPU, DP-U-CPU, DP-HR-U-CPU and VGA-U-CPU series
only).
When using the console to access a target module DP-HR-U-CPU-MC2 connected to a
dual-head computer, the monitors display the separate images of the graphics out
-
puts.
When accessing a target module with one graphics input only, only the first monitor
displays an image.
NOTE:
This user module can be connected to a compatible fiber port of
ControlCenter-Compact matrix switches or ControlCenter-Digital matrix switches
(requires CCD-I/O 16-Card-Fiber).
IMPORTANT:
Both, the user module and the fiber ports are available as single-mode
variants or as multi-mode variants. Make sure that the port at the user module, the
-
fiber port and the optical fibers are compatible with each other.
ADVICE:
Instead of an MC2 target module, you can also connect a dual-head com-
puter by using two separate target modules DP-HR-U-CPU.
In this case, add both target modules in the web application to channel group.
