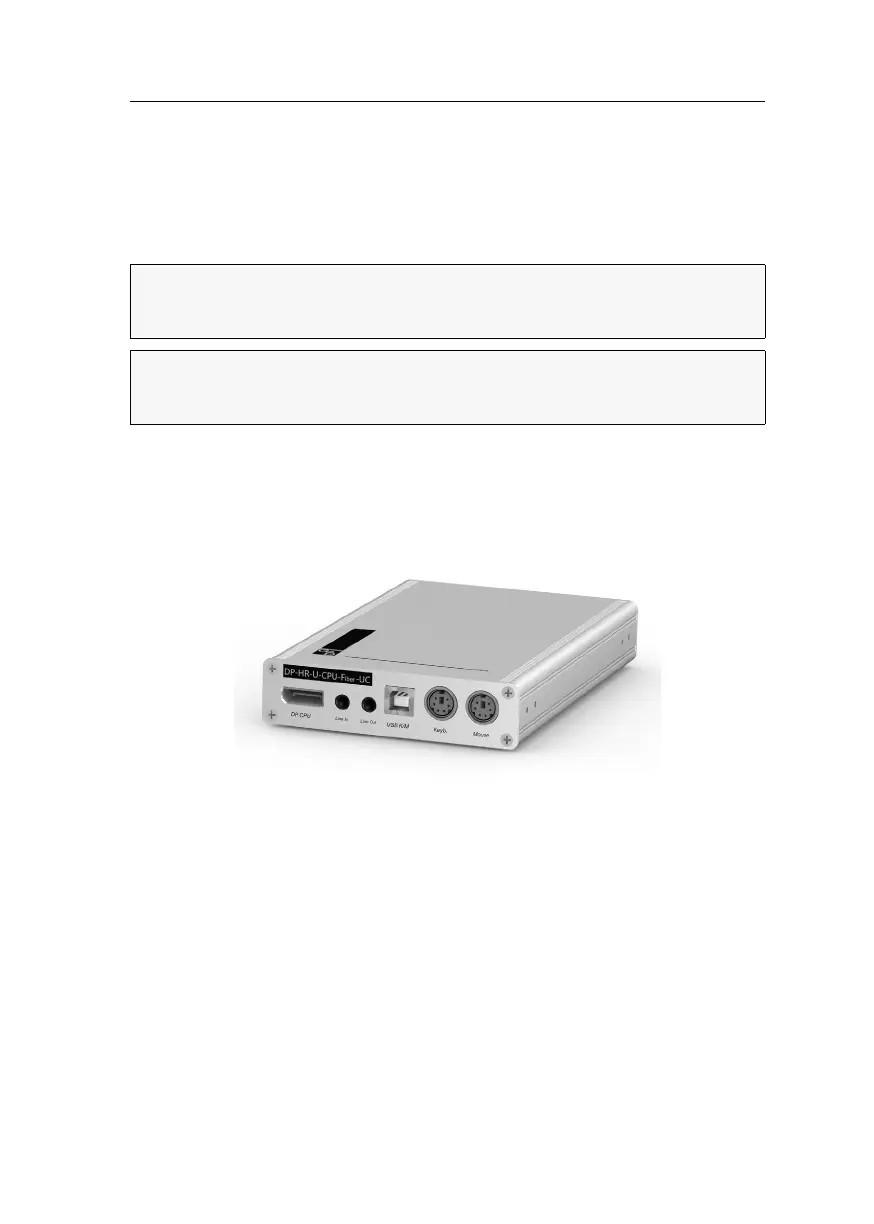

Target module »DP-HR-U-CPU-Fiber-UC«

Target and user modules (DP-HR-U) · 34

Target module

»DP-HR-U-CPU-Fiber-UC«

With DP-HR-U-CPU-Fiber-UC target modules, you can connect a computer with Display-

Port graphics output to two different digital matrix switches of the ControlCenter-Com-

pact or ControlCenter-Digital series.

At the consoles of both matrix switches, users can access a target module to operate

the connected computer.

The data stream of the USB devices connected to the active user module (DVI-U-CON,

DP-U-CON and DP-HR-U-CON series only) is transmitted to the computer with up to 16

Mbit/s.

Package contents

 1 × Target module DP-HR-U-CPU-Fiber-UC

 1 × DisplayPort video cable (DP-Cable-M/M-2)

 1 × USB device cable

 2 × Audio cable

 1 × Power pack (12V/2A, only with variants incl. PowerPack)

 1 × Power cable (only with variants incl. PowerPack)

 1 × EasyStart flyer

 1 × »Safety instructions« flyer

NOTE:

This target module can be connected to a compatible fiber port of

ControlCenter-Compact matrix switches or ControlCenter-Digital matrix switches

(requires

CCD-I/O 16-Card-Fiber).

IMPORTANT:

Both, the target module and the fiber ports are available as single-

mode variants or as multi-mode variants. Make sure that the port at the target mod

ule, thefiber port and the optical fibers are compatible with each other.
