User module »DP-HR-U-CON-2-Fiber«
117 · Target and user modules (DP-HR-U)

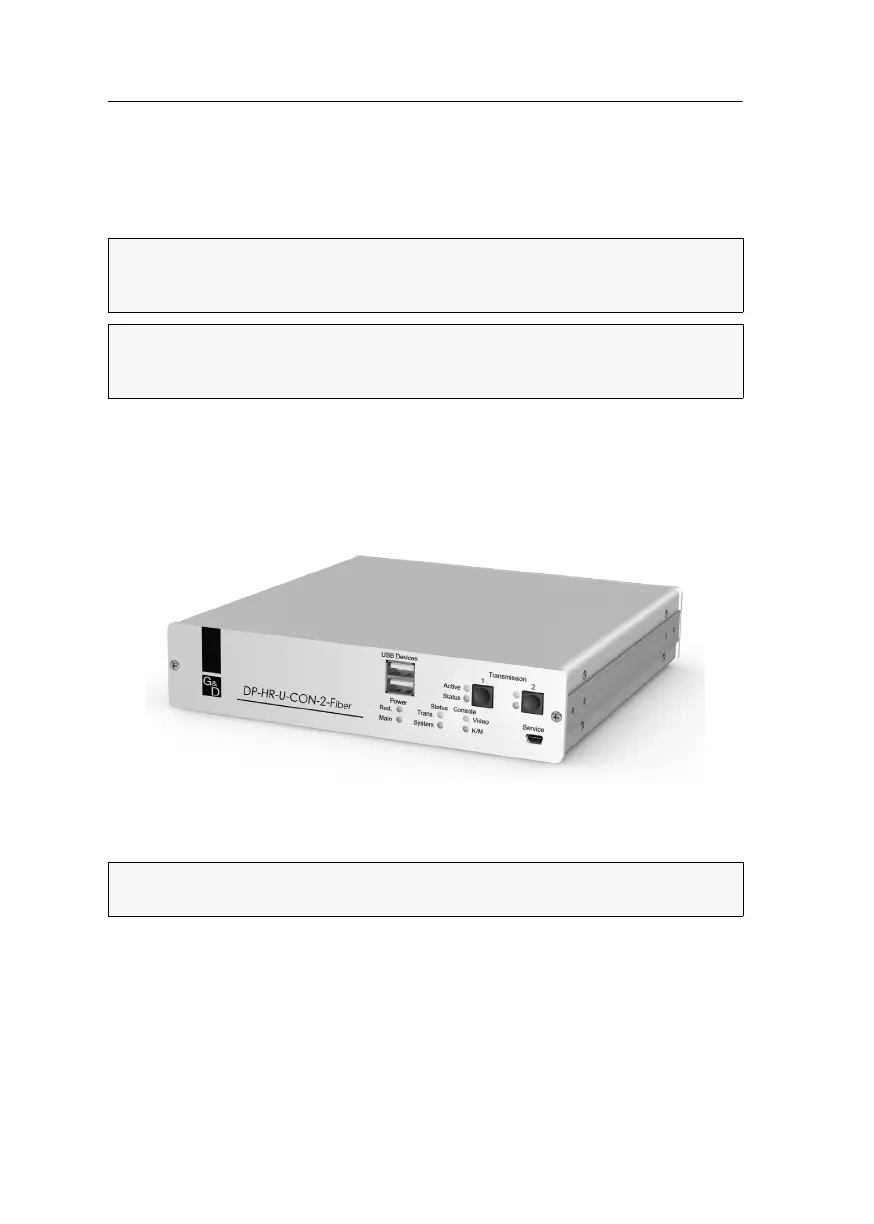

User module »DP-HR-U-CON-2-Fiber«
With DP-HR-U-CON-2-Fiber user modules, you can connect a console (DisplayPort mon-
itor, keyboard, mouse and audio devices) to two matrix switches of the ControlCenter-
Compact or ControlCenter-Digital series.
At the installed console, matrix switch users can access a target module to operate
the connected computer.
The data stream of the connected USB devices is transmitted to the active target
module with up to 16 Mbit/s (
DVI-U-CPU, DP-U-CPU, DP-HR-U-CPU and VGA-U-CPU series
only).
The buttons on the front panel of the user module or configured key combinations
(select keys) let users switch between the connected matrix switches.
NOTE: This user module can be connected to a compatible fiber port of
ControlCenter-Compact matrix switches or ControlCenter-Digital matrix switches
(requires CCD-I/O 16-Card-Fiber).
IMPORTANT: Both, the user module and the fiber ports are available as single-mode
variants or as multi-mode variants. Make sure that the port at the user module, the
-
fiber port and the optical fibers are compatible with each other.
ADVICE: Instead of a matrix switch, you can also connect a compatible target module
to each of the two channels.
