User module »DP-HR-U-CON-2-Fiber«
Target and user modules (DP-HR-U) · 118
Package contents
1 × DP-HR-U-CON-2-Fiber user module
1 × Power cable
1 × EasyStart flyer
1 × »Safety instructions« flyer
Required accessories
2 × Compatible optical fibre cable to connect the user module to two matrix
switches
Installation

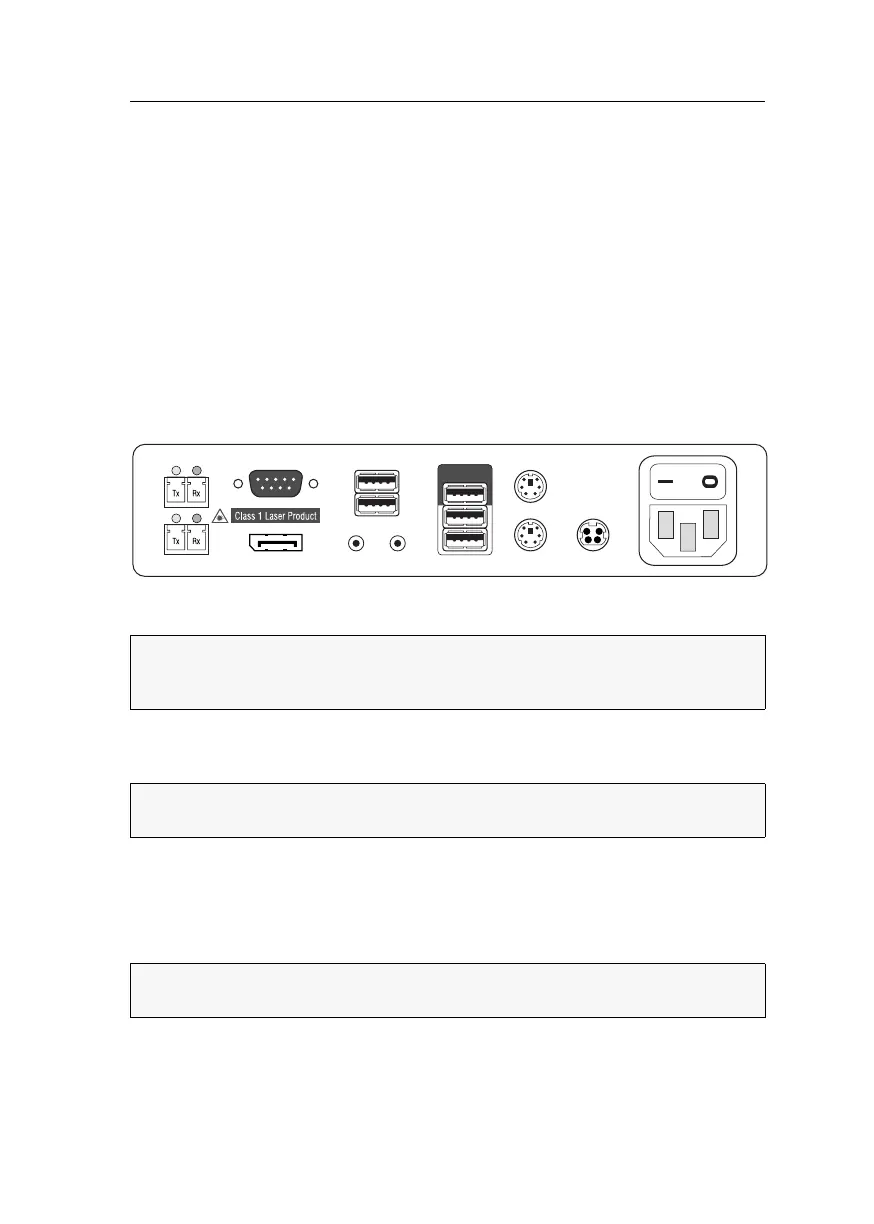

Connecting the console devices
DisplayPort Out: Connect the monitor/projector of the local console.
Micro In: Connect the optional microphone of the local console.
Speaker: Connect the optional speakers of the local console.
Keyb.: Connect the PS/2 keyboard of the local console.
Mouse: Connect the PS/2 mouse of the local console.
Keyb./Mouse: Connect the USB keyboard and/or the USB mouse of the local
console.
Generic: By default (Keyb./Mouse mode), you can use this interface to connect another
USB input device or supported displays or tablets.
NOTE:
Check the monitor's manual if the OSD provides a setting for the mode of
the DisplayPort input. If so, select the mode in which the image data is processed
according to the standard DisplayPort 1.1.
HINWEIS:
Console keyboard and console mouse can be connected to the user mod-
ule’s USB or PS/2 interfaces.
NOTE:
Mixed operation, for example connecting a USB mouse and a PS/2 key-
board is supported, too.
Micro In
Speaker
Keyb./Mouse
Generic
Main Power
Red. Power
Mouse
Keyb.
DisplayPort Out
LED Out
USB Devices
Trans. 1
Trans. 2
