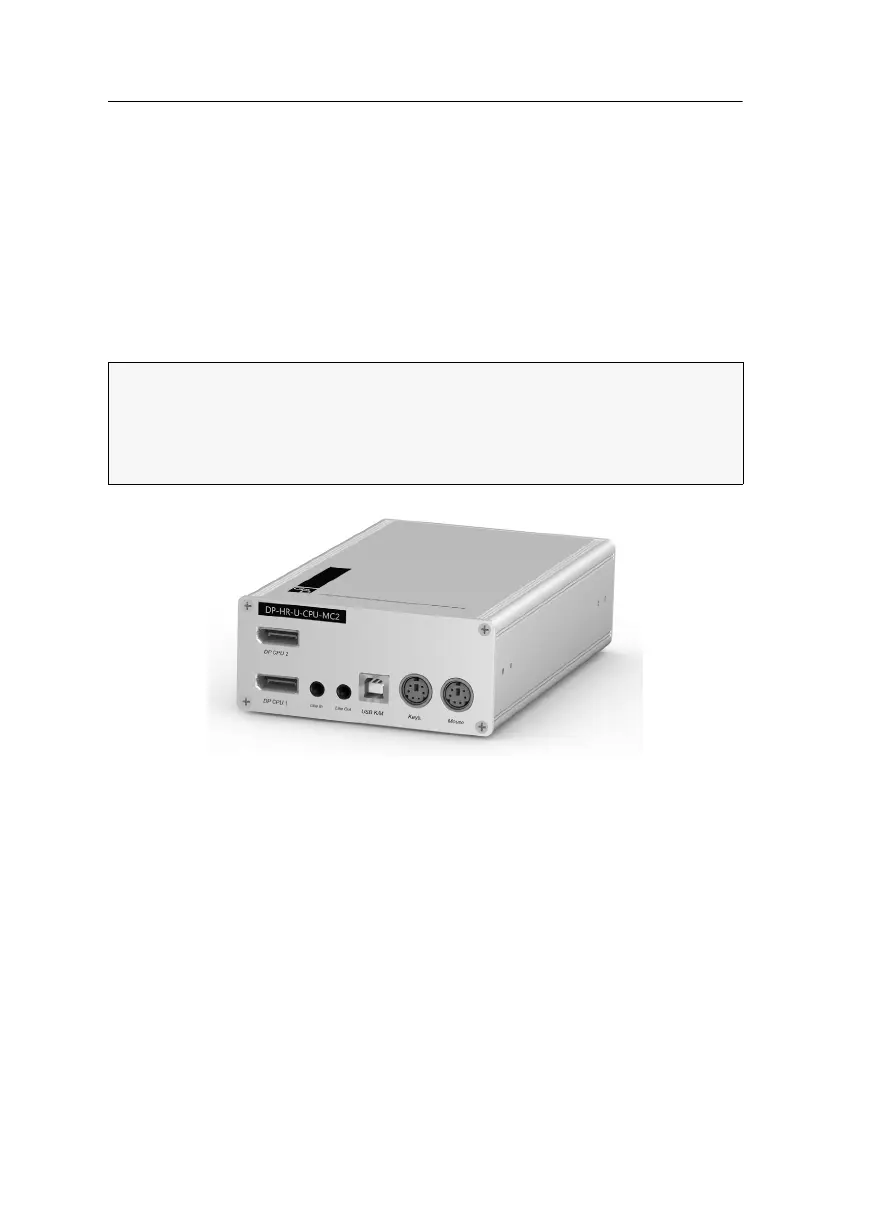

Target module »DP-HR-U-CPU-MC2«
15 · Target and user modules (DP-HR-U)
Target module »DP-HR-U-CPU-MC2«
With DP-HR-U-CPU-MC2 target modules, you can connect a computer with DisplayPort
graphics outputs (dual-head) to a digital matrix switch of the ControlCenter-Compact,
ControlCenter-Digital or the DVICenter series.
Users at the consoles of the matrix switch can access the target module and operate
the connected computer.
The data stream of the USB devices connected to the active user module (DVI-U-CON,
DP-U-CON and DP-HR-U-CON series only) is transmitted to the computer with up to 16
Mbit/s.
Package contents
 1 × Target module DP-HR-U-CPU-MC2
 2 × DisplayPort video cable (DP-Cable-M/M-2)
 1 × USB device cable
 2 × Audio cable
 1 × Power pack (12V/2A, only with variants incl. PowerPack)
 1 × Power cable (only with variants incl. PowerPack)
 1 × EasyStart flyer
 1 × »Safety instructions« flyer
Required accessories
 2 × Category 5e (or better) twisted pair cables to connect the target module to the
matrix switch
IMPORTANT: Only consoles configured for multi-monitor operation via channel
grouping can show the images of both of the computer’s video outputs on separate
monitors.
At consoles with one monitor only, the image of the computer’s second video out-
put is not displayed.
