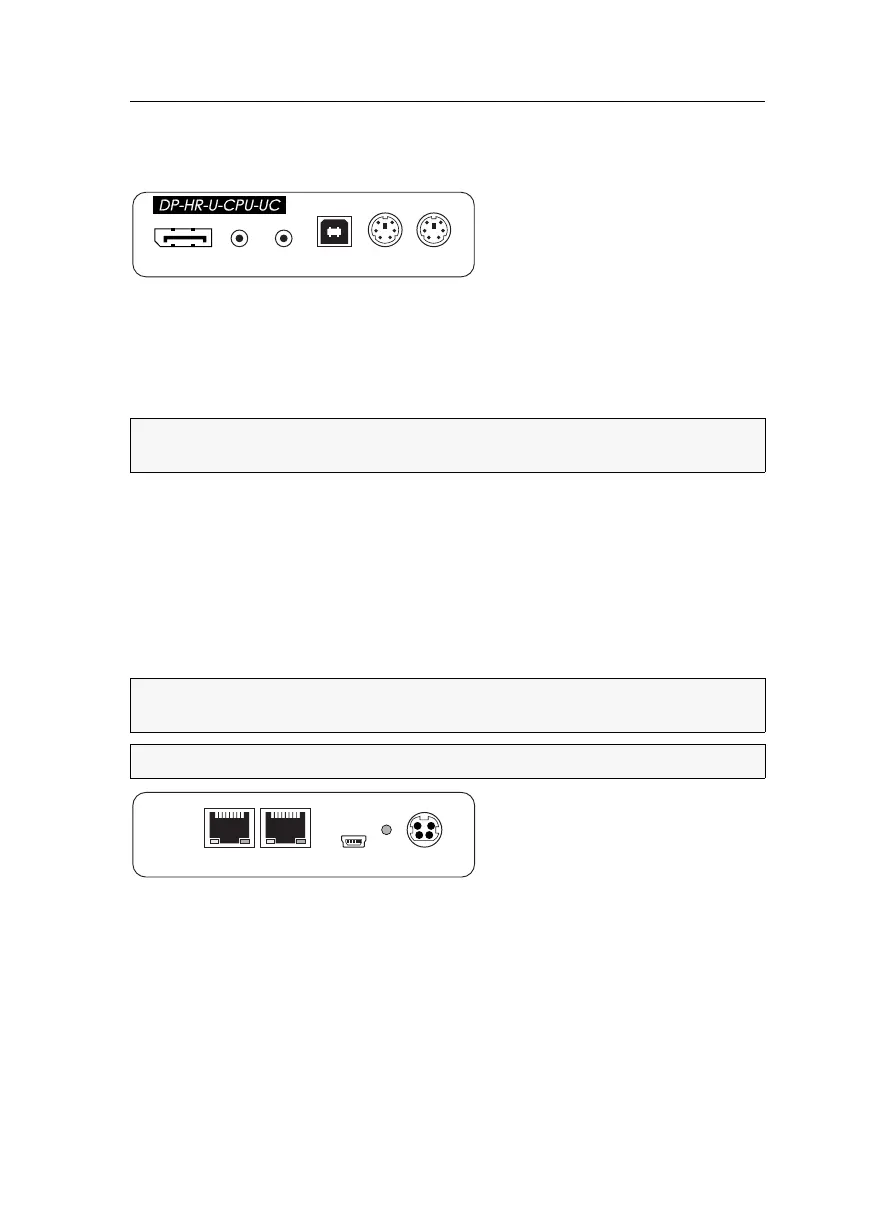

Target module »DP-HR-U-CPU-UC«
Target and user modules (DP-HR-U) · 10
Installation
Connecting the target computer
DP CPU: Use the supplied video cables to connect the computer’s Display Port video
output to this interface.
Line In: Use an audio cable to connect the computer’s Line-Out interface to this port.
Line Out: Use an audio cable to connect the computer’s Line-In interface to this port.
USB K/M: Use the USB device cable to connect one of the computer’s USB ports to this
port.
Keyb.: Use the purple plug of an optional Twin-PS/2 cable to connect the purple PS/
2 socket (keyboard) to this port.
Mouse: Use the green plug of an optional Twin-PS/2 cable to connect the green PS/
2 socket (mouse) of the computer to this port.
Connections to the matrix switches
NOTE:
Both keyboard and mouse signals can be transmitted to the computer using
the PS/2 or the USB ports.
IMPORTANT:
Only connect one Trans. interface of the target module per matrix
switch.
NOTE:
Use category 5e twisted pair cables (or better) to connect the devices.
MouseKeyb.
USB K/M
Line In
Line Out
DP CPU
Power In
Service
Power
Trans. 1Trans. 2
