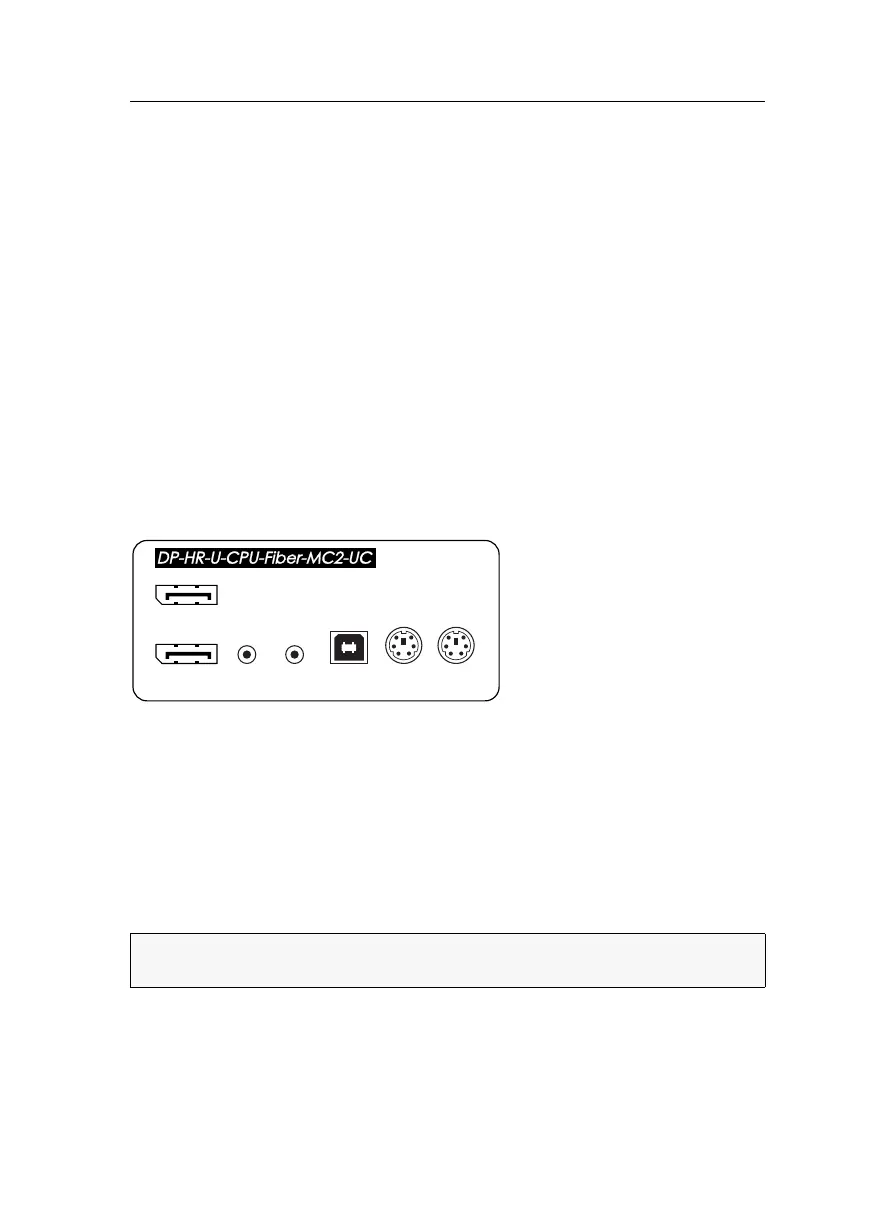

Target module »DP-HR-U-CPU-Fiber-MC2-UC«
Target and user modules (DP-HR-U) · 48
Package contents
1 × Target module DP-HR-CPU-U-Fiber-MC2-UC
2 × DisplayPort video cable (DP-Cable-M/M-2)
1 × USB device cable
2 × Audio cable
1 × Power pack (12V/2A, only with variants incl. PowerPack)
1 × Power cable (only with variants incl. PowerPack)
1 × EasyStart flyer
1 × »Safety instructions« flyer
Required accessories
4 × Compatible optical fibre cable to connect the target module to
the matrix switch
Installation
Connecting the target computer
DP CPU 1: Use one of the supplied video cables to connect the computer’s first Display
Port video output to this interface.
DP CPU 2: Use one of the supplied video cables to connect the computer’s second Dis-
play Port video output to this interface.
Line In: Use one of the supplied audio cables to connect the computer’s Line Out
interface to this interface.
Line Out: Use one of the supplied audio cables to connect the computer’s Line In inter-
face to this interface.
USB K/M: Use the USB device cable to connect one of the computer’s USB interfaces
to this interface.
Keyb.: Use the purple plug of an optional Twin-PS/2 cable to connect the computer’s
PS/2 keyboard interface to this interface.
NOTE:
Keyboard and mouse signals can be transmitted to the computer using either
the PS/2 interfaces or the USB interface.
MouseKeyb.
USB K/M
Line In
Line Out
DP CPU 1
DP CPU 2
