User module »DP-HR-U-CON-Fiber-MC2«
Target and user modules (DP-HR-U) · 130

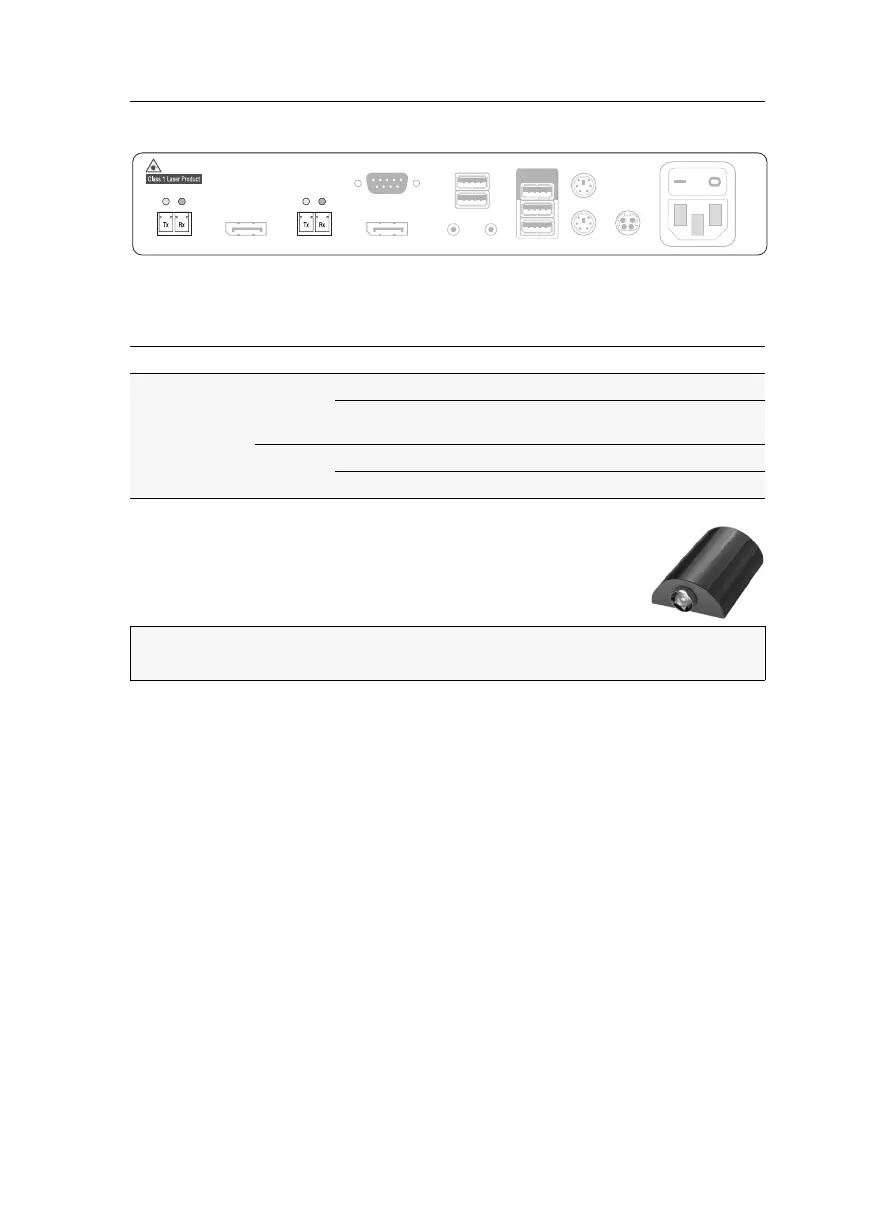

Back panel
The Transmission interfaces at the user module’s back panel provide additional status
LEDs.
TradeSwitch-LED
The optionally available TS-LED (item number A6100041) flashes
when keyboard and mouse signals of a master console are switched
to the user module.
Interface LED Status Meaning
Transmission Yellow Off No data connection to the counterpart station.
Flashing Data connection to the counterpart station
established.
Green Off No user is logged in at the user module.
On A user is logged in at the user module.
NOTE:
Keyboard and mouse signals can only be switched to another user module
or target computer if you purchased the TradeSwitch function for the
matrix switch.
Transmission 2 Transmission 1
Micro In
Speaker
Keyb./Mouse
Generic
Main Power
Red. Power
Mouse
Keyb.
LED Out
DisplayPort Out 1DisplayPort Out 2
USB Devices
