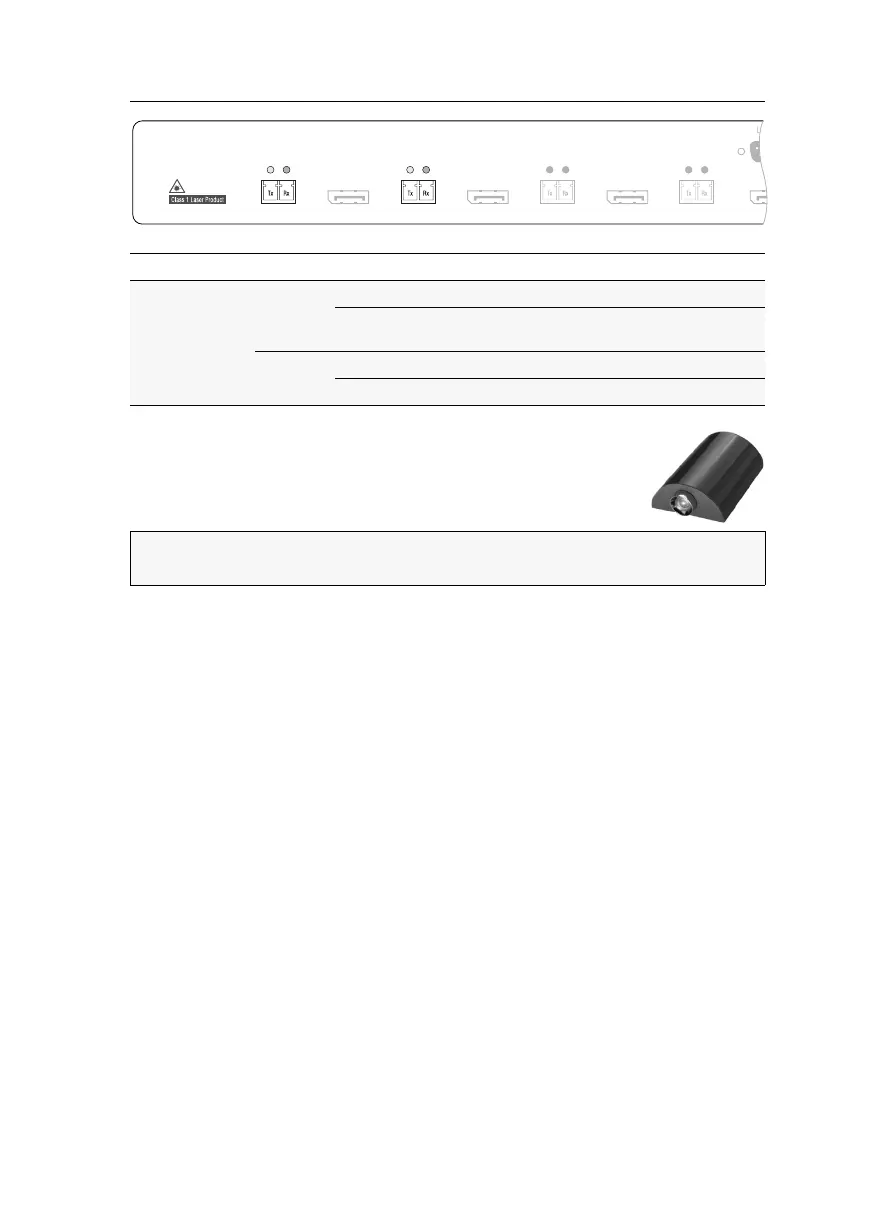

User module »DP-HR-U-CON-Fiber-MC4«
Target and user modules (DP-HR-U) · 140
TradeSwitch-LED
The optionally available TS-LED (item number A6100041) flashes
when keyboard and mouse signals of a master console are switched
to the user module.
,p
Interface LED Status Meaning
Transmission Yellow Off No data connection to the counterpart station.
Flashing Data connection to the counterpart station
established.
Green Off No user is logged in at the user module.
On A user is logged in at the user module.
NOTE:
Keyboard and mouse signals can only be switched to another user module
or target computer if you purchased the TradeSwitch function for the
matrix switch.
Transmission 4 Transmission 3
DisplayPort Out 4 DisplayPort Out 3 DisplayPort Out 2 Display
Transmission 2 Transmission 1
